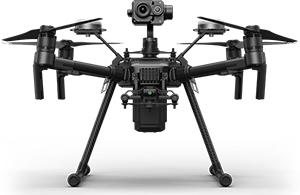

FLIR M210 RTK XT2 R 640-19mm UAS Thermal Imaging Kits

Name: FLIR M210 RTK XT2 R 640-19mm UAS Thermal Imaging Kits
Brand: FLIR
SKU: FLIRM210 RTK XT2 R 640-19mm
Availability: InStock

0 reviews | Catalog: 83623-0103US | Model: FLIR M210 RTK XT2 R 640-19mm

Compare

DJI Matrice 210 RTK with Zenmuse XT2 R 640-19mm (30Hz)

XT2 R 640-19mm (30Hz)
Single-, dual-, or top-mount thermal/visible gimbal mounts
Dual camera operation
Powerful drone and imaging combinatio
Airbone heat detection

Application

Areas where GPS may be obscured or additional GPS accuracy is required

View Product Details

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

FLIR M210-RTK UAS Thermal Imaging Kits

By combining the flight stability, gimbal technology, mobile app integration, and image transmission of the powerful DJI M200, M210, and M210RTK with the industry-leading thermal imaging technology of FLIR, these packages offer you the ultimate solution for reliable, rapidly-deployable aerial thermal imaging. The M210 and M210RTK kits let you deploy two imagers below the aircraft so you can fly thermal and visible cameras at the same time, or single upward-facing gimbal, and the upgraded Cendence control unit.

More Accessible than Ever Before

Everything you need, Nothing you don't

The Aerial M200 Series kits come complete with the imagers, batteries, controllers, and displays you need to get your operations in the air on day one.

Airborne Heat Detection

See invisible differences in heat that no one else can, to detect lost people and animals, moisture intrusion in buildings, roof damage, and much, much more.

Powerful Drone and Imaging Combination

The DJI M210 and XT2 with thermal by FLIR provides an unprecedented eye in the sky.

Key Stats for Controlled Operation

General Specifications
Available kits	FLIR M210 RTK XT2 R Choice of 640-13 mm or 640-19 mm
Aircraft Model¹	DJI M210RTK¹
Included Tablet Interface	DJI CrystalSky display 7.85"
RC Unit- 1 Included	DJI Cendence RC
Aircraft Battery	Qty 2 TB50 (4280 mAh) & Qty 2 TB55 (7660 mAh)
Gimbal Mount (IR & Visual)	Single downward, Dual downward, Single upward
Compatible Cameras	Zenmuse XT2 (included) Zenmuse X5S (optional)* Zenmuse X30 (optional)*
Zenmuse XT2 Camera	XT2 640 x 512 13mm FOV 45° x 37° Or XT2 640 x 512 19mm FOV 32° x 26°
Frame Rate	30 Hz or 9 Hz (region-dependent)
Thermal Imager	Uncooled VOx microbolometer, 7.5 – 13.5 µm
IR Sensitivity	<50 mK at f/1.0
Scene Range (High Gain)	-25°C to 135°C (-13°F to 275°F)
Scene Range (Low Gain)	-40°C to 550°C (-40°F to 1022°F)
Thermal Photo/Video Format	JPEG, TIFF, R-JPEG/8-bit MOV, MP4/14-BIT TIFF sequence, SEQ
Visual Camera	12 MP, 1/1.7" CMOS, FOV 57.12° × 42.44°
Visual Photo/Video	4K Ultra HD: 3840 × 210, 29.97p FHD: 1920 × 1080, 29.97p JPEG/MOV, MP4
File Storage	Micro SD, max. capacity: 128 GB. UHS-3 required. SanDisk Extreme 16/32 GB UHS-3 micro-SDHC or SanDisk Extreme 16/128 GB UHS-3 microSDXC recommended
Weight (Gimbal)	588 g (20.7oz)
Notes: 1. Full airframe details can be found at http://www.dji.com/matrice-200-series/info#specs and are subject to change by DJI *Contact your FLIR dealer for pricing on optional accessories such as the Z30, X5S, additional batteries, or remote control units.

Tech Specs

Test Equipment General Attributes
Product Weight	588 GRAMS (1.30 LBS)

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

Both are excellent, industrial-grade sAUS. TheRTK version adds a high precision navigation and positioning system specially designed for DJI flight controllers. Using dynamic differential technology, it provides ultra-accurate, centimeter level 3D positioning. This enhanced accuracy over typical barometer, compass and GPS systems makes D-RTK essential for commercial, industrial and scientific applications where accuracy is imperative.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
