| General Specifications |
| Model |

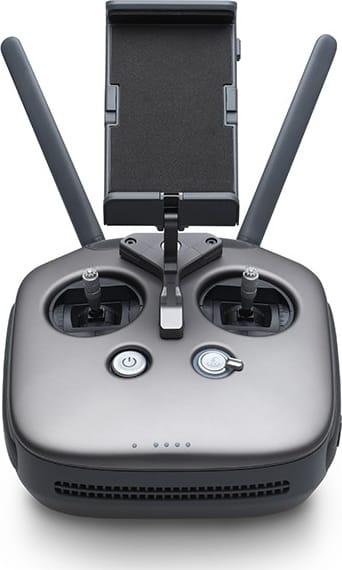

GL6D10A |
| Operating Frequency |
2.400-2.483 GHz; 5.725-5.825 GHz |
| Max Transmitting Distance |
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE);
2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE);
3.1 miles (5 km, SRRC) |
| EIRP |
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
| Video Output Ports |
USB, HDMI |
| Power Supply |
Built-in battery |
| Charging |
charger |
| Dual User Capability |
Host-and-Slave connection |
| Mobile Device Holder |
Tablet or Smart Phone |
| Max Mobile Device Width |
170 mm |
| Output Power |
9W (Without supplying power to smart device) |
| Operating Temperature |
-4° to 104° F (-20° to 40° C) |
| Storage Temperature |
Less than 3 months: -4° to 113° F (-20° to 45° C)<
More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature |
32° to 104° F (0° to 40° C) |
| battery |
6000 mAh 2S LiPo |
| USB Supply power |
iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
| Charger |
| Model |
IN2C180 |
| Voltage |
26.1 V |
| Rated power |
180 W |
| Battery (Standard) |
| Name |
Intelligent Flight Battery |
| Model |
TB50-4280mAh-22.8V |
| Capacity |
4280 mAh |
| Voltage |
22.8 V |
| Battery Type |
6S LiPo |
| Energy |
97.58 Wh |
| Net Weight |
515 g |
| Operating Temperature |
-4° to 104° F (-20° to 40° C) |
| Storage Temperature |
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature |
41° to 104° F (5° to 40° C) |
| Max Charging power |
180 W |
| Charging Hub (Model: IN2CH) |
| Input Voltage |
26.1 V |
| Input Current |
6.9 A |
| Downward Vision System |
| Velocity Range |
<32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
| Altitude Range |
<32.8 feet (10 m) |
| Operating Range |
<32.8 feet (10 m) |
| Operating Environment |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range |
0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment |
Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
| Forward Vision System |
| Obstacle Sensing Range |
2.3-98.4 feet (0.7-30 m) |
| FOV |
Horizontal: 60°; Vertical: 54° |
| Operating Environment |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Upward Infrared Sensing System |
|
| Obstacle Sensing Range |
0-16.4 feet (0-5 m) |
| FOV |
±5° |
| Operating Environment |
Large, diffuse and reflective obstacles (reflectivity >10%) |
