| Imaging and optical data |
| Infrared resolution |
640 x 480 pixels |
| Thermal sensitivity (NETD) |
<40 mK, 24° @ +30°C (+86°F) |
| Field of view (FOV) |
24° × 18° |
| Minimum focus distance |
0.15 m (0.49 ft) |
| Focal length |
17 mm (0.67 in) |
| Spatial resolution (IFOV) |
0.66 mrad/pixel |
| Lens identification |
Automatic |
| f-number |
1.3 |
| Image frequency |
30 Hz |
| Focus |
- One-shot contrast
- Motorized
- Manual
|
| Detector data |
| Focal plane array/spectral range |
Uncooled microbolometer/7.5–14 µm |
| Detector pitch |
12 µm |
| Measurement |
| Camera temperature range |
15 to 45°C (59 to 113°F) Accuracy ±0.3°C (±0.5°F) when used with EST screening software |
| Configuration of camera |
| Web interface |
Yes |
| Video streaming |
| Image quality |
Bit rate set through Camera web |
| Video streaming, Image source 0: |
| Resolution (source 0) |
640 × 480 pixels |
| Contrast enhancement |
FSX / Histogram equalization (IR only) |
| Overlay (source 0) |
With / Without |
| Image source (source 0) |
Visual / IR / MSX |
| Pixel format (source 0) |
YUV411 |
| Encoding (source 0) |
H.264 / MPEG4 / MJPEG |
| Video streaming, Image source 1: |
| Resolution (source 1) |
1280 × 960 pixels |
| Overlay (source 1) |
No |
| Image source (source 1) |
Visual |
| Pixel format (source 1) |
YUV411 |
| Encoding (source 1) |
H.264 / MPEG4 / MJPEG |
| Radiometric streaming |
| Resolution (radiometric) |
640 × 480 pixels |
| Source |
IR |
| Pixel format (radiometric) |
MONO 16 |
| Encoding (radiometric) |
- Compressed JPEG-LS
- FLIR Radiometric
|
| Ethernet |
| Interface |
|
| Connector type |
- M12 8-pin X-coded, Female
- RP-SMA, Female
|
| Ethernet, purpose |
Control, result, image, and power |
| Ethernet, type |
1000 Mbps |
| Ethernet, standard |
IEEE 802.3 |
| Ethernet, communication |
TCP/IP socket-based FLIR proprietary |
| Digital Input/output |
| Connector type |
M12 12-pin A-coded, Male (shared with external power) |
| Digital output |
- 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C)
- Solid state opto relay
- 1x dedicated as Fault output (NC)
|
| Digital output, purpose |
As function of alarm, output to external device, for example when the screening alarm is triggered. |
| Digital I/O, isolation voltage |
500 VRMS |
| Camera power system |
| Connector type |
M12 12-pin A-coded, Male (shared with Digital I/O) |
| Power consumption |
- 7.5 W at 24 V DC typical
- 7.8 W at 48 V DC typical
- 8.1 W at 48 V PoE typical
|
| External power operation |
24/48 V DC 8 W max |
| External voltage |
Allowed range 18–56 V DC |
| Wi-Fi (Option) |
| Connector type |
RP-SMA, Female |
| Standard |
IEEE802.11a/b/g/n |
| Antenna |
Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi) |
| Connection type |
Peer to peer (ad hoc) or infrastructure (network) |
| Physical data |
| Camera unit: Size (L × W × H) |
460 × 110 × 180 mm (18 × 4.3 × 7.1 in.) |
| Camera unit: Weight |
2.5 kg (5.5 lb.) |

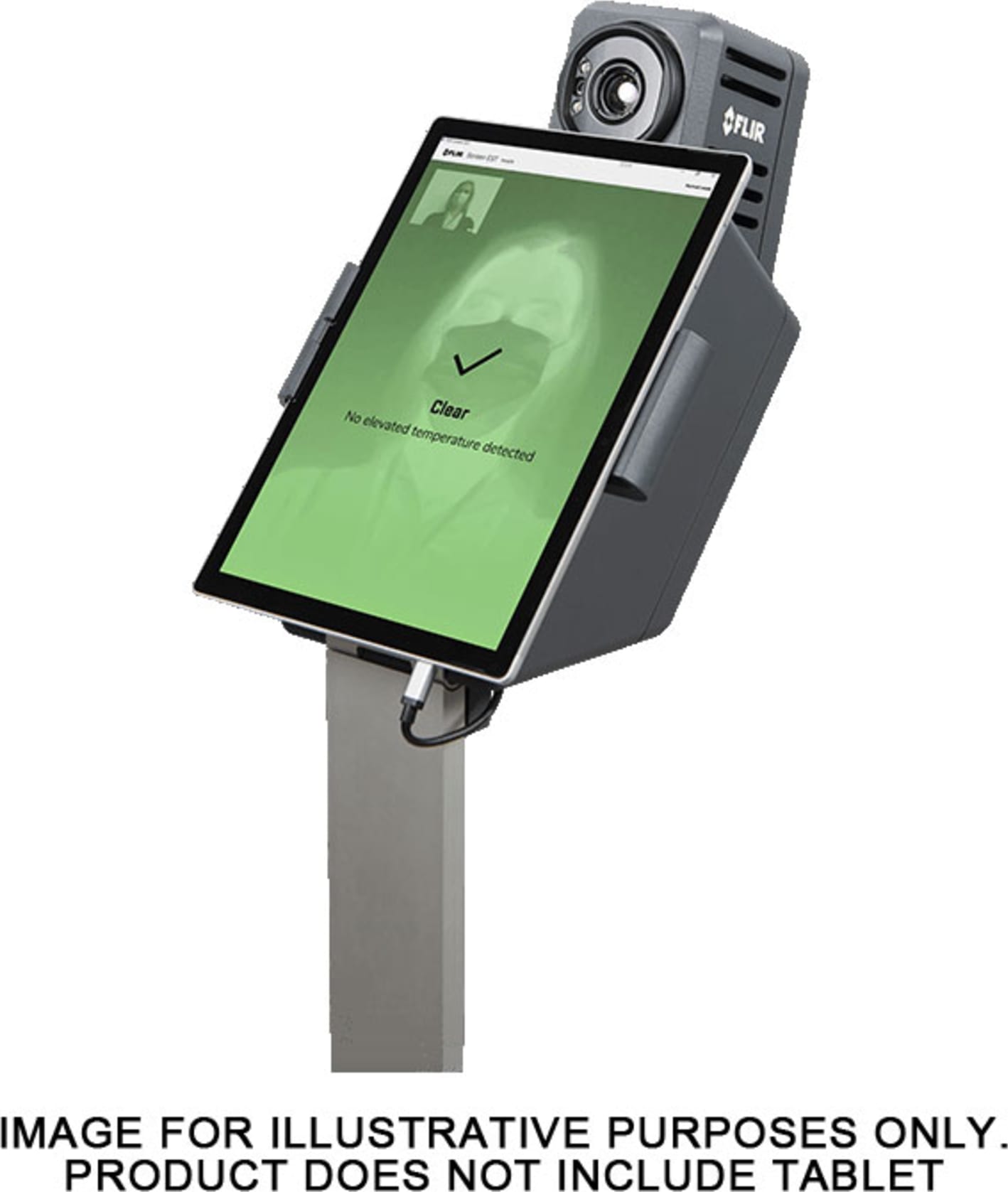

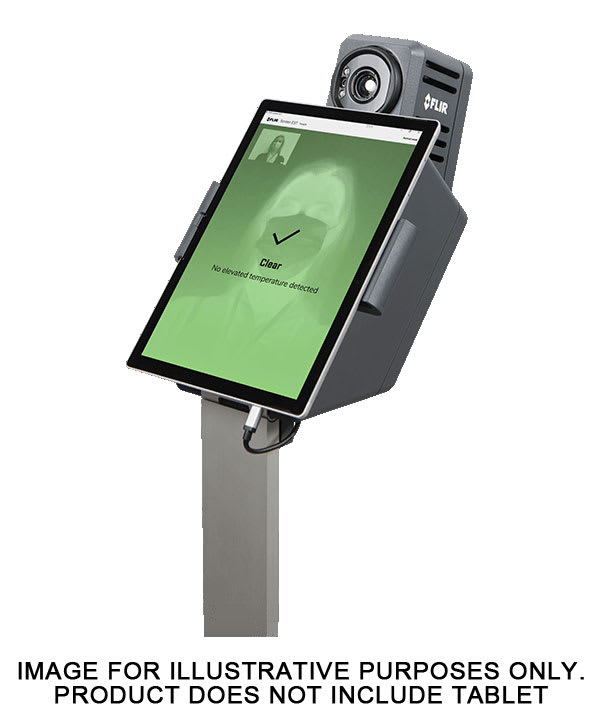

| FLIR EST Kiosk: Size (L × W × H) |
360 × 270 × 1300 mm (14 × 11 × 51.2 in.) |
| FLIR EST Kiosk: Weight |
8.3 kg (18 lb.) |
| Shipping information |
| Packaging, type |
Cardboard box |
| Packaging, contents |
- Camera unit
- Tablet stand
- Mains cables (Europe, UK, US)
- Screening position floor sticker
- FLIR Screen-EST license card
- Printed documentation
|
| Packaging, weight |
14 kg (31 lb) |
| Packaging, size |
1170 × 680 × 150 mm (46.1 × 27 × 5.9 in.) |
| EAN-13 |
7332558027592 |
| UPC-12 |
845188023645 |
| Country of origin |
Sweden |
