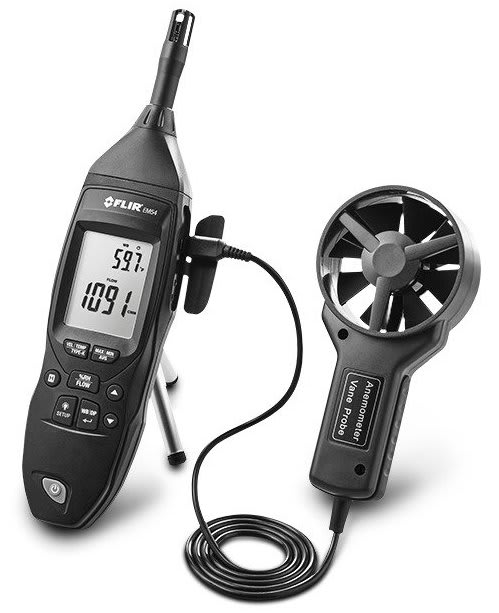

FLIR EM54 HVAC/R Environmental Meter

Name: FLIR EM54 HVAC/R Environmental Meter
Brand: FLIR
SKU: FLIREM54
Price: 257.99 USD
Availability: InStock

0 reviews | Catalog: EM54 | UPC: 793950220542 | Model: FLIR EM54

Compare

Environmental Meter (Air Velocity/Flow, Temperature, Humidity)

ACCURATE AND RELIABLE
Receive high-quality data consistently, and work without interruption. Using the tripod, place the meter away from objects that may influence relative humidity measurements.
INSPECT AND TROUBLESHOOT EFFICIENTLY
Work on a wide range of systems more efficiently using the contact temperature probe and wet bulb/dew point calculations.
EASY TO USE
Intuitively operate this simple, ergonomic meter with a backlit display, a ‘hold’ function that freezes readings, and well-marked function keys.

View Product Details

Your Price: $257.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

FLIR EM54 HVAC/R Environmental Meter

One tool provides all the environmental measurements you need

The FLIR EM54 is ideal for inspecting and troubleshooting HVAC/R ducting systems within residential, commercial, and industrial facilities. This meter can help you verify that duct inlets and outlets have the specified volumetric flow – a prerequisite to an efficient functional system. Featuring humidity, wet bulb, and dew point functions, the EM54 can measure deviations from proper relative humidity levels. Plus, the included Type-K contact temperature probe is useful to check electric motors and thermal equipment components for proper operating temperatures.

Flir EM54 General Specifications
Auto Power Off (APO)	Configurable from 5 to 60 min in 8 increments
Dimensions (L x W x H)	275 × 65 × 45 mm (10.8 × 2.6 × 1.8 in)
Housing material	Impact-resistant plastic
Warranty	Limited 3 years
Weight	283.9 g (10 oz) with battery installed, no external probes
Anemometer Body Length	150 mm (5.9 in)
Anemometer Cable Length	950 mm (37.4 in)
Anemometer Vane Diameter	70 mm (2.8 in)
Compliance & Certifications
Certifications	CE, RCM
Environmental
Drop test	1 m (3.3 ft), not including removeable probes
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature Range	-10 to 60°C (14 to 140°F)
Imaging & Optical
Display Type	Backlit, multifunction LCD
Measurement & Analysis
Air Temperature	10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F)
Dew Point	-30 to 60°C (-22 to 140°F), ±3°C (4.8°F)
Contact Temperature Type K thermocouple	-99.9 to 99.9°C (-148 to 212°F), ±1.5% +1°C (1.8°F); 100 to 1372°C (212 to 2502°F), ±1.5% +2°C (3.6°F)
Wet Bulb (Calculated)	-30 to 50°C (-22 to 122°F), ±3°C (4.8°F)
Air Velocity (Vane Anemometer Probe)	0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots
Relative Humidity	5% to 98% ±3.5%
Performance
Air Flow	0 to 999900 CMM (0 to 999900 CFM)
Power
Battery Life	120 hours typical
Battery status indicator	Low battery indication
Battery Type	1x 9 V

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Air Velocity Max	5906 ft/min
Air Velocity Min	79 ft/min
Humidity	Yes
Temperature	Yes
Thermocouple Sensor for Temperature	Yes
Dew Point	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE
Product Weight	283.9 GRAMS (0.626 LBS)
Product Height	1.8 IN
Product Length	10.8 IN
Product Width	2.6 IN
Shipping Weight	1.7 LBS
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	12.2 IN
Shipping Length	2.4 IN
Shipping Width	5.9 IN
