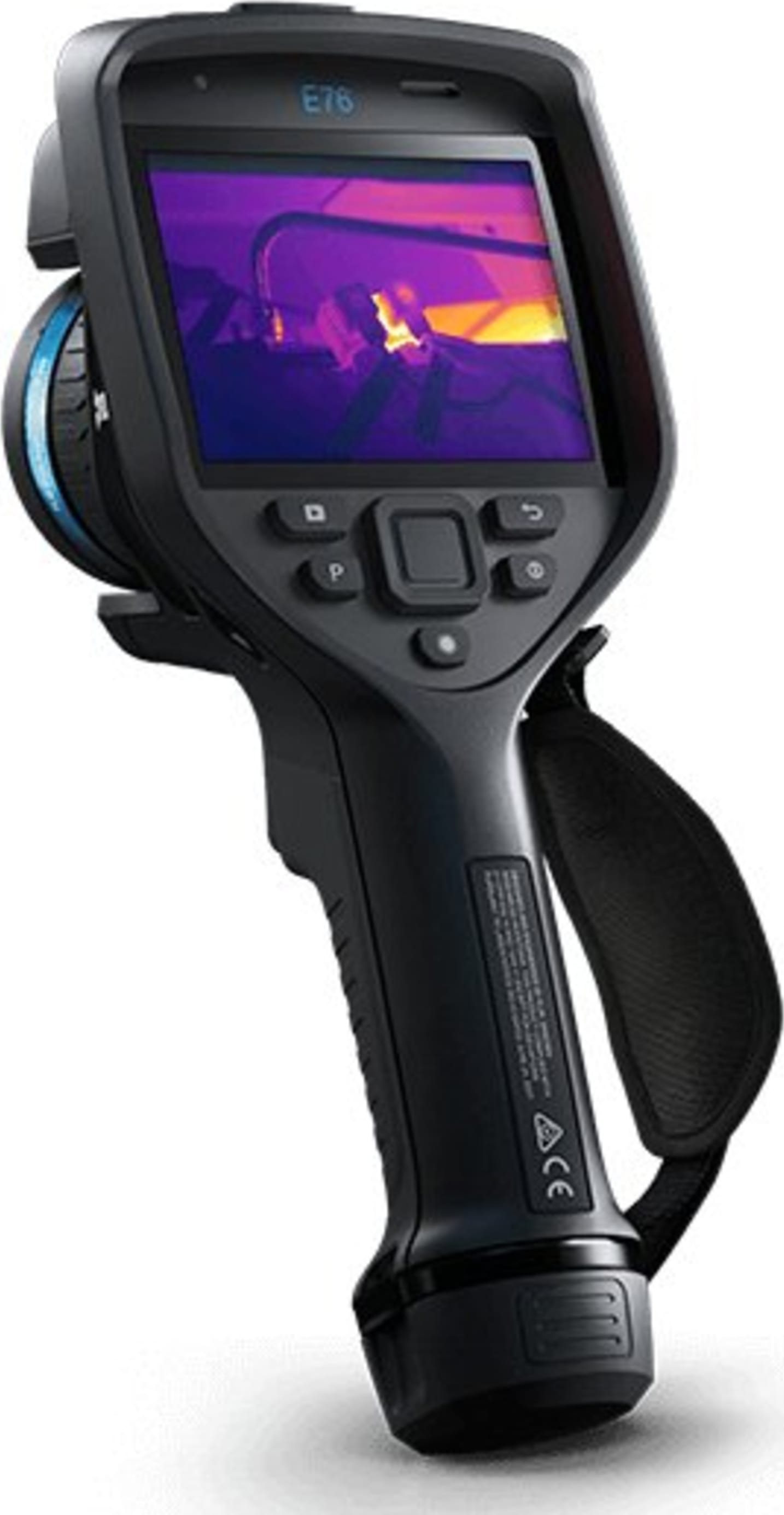

| FLIR E76-14-NIST Specifications |
| Compliance & Certification |
| NIST Certification |
Yes |
| Imaging and Optical Data |
| Infrared resolution |
320 × 240 pixels |
| UltraMax (super-resolution) |
Yes |
| NETD |
<50 mK @ +30°C (+86°F) |
| Field of view |
14° × 10° |
| Minimum focus distance |
1.0 m (3.28 ft.) |
| Minimum focus distance with MSX |
1.0 m (3.28 ft.) |
| Focal length |
29 mm (1.41 in.) |
| Spatial resolution (IFOV) |
0.75 mrad/pixel |
| Lens identification |
Automatic |
| f-number |
1.5 |
| Image frequency |
30 Hz |
| Focus |
Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Field of view match |
Yes |
| Digital zoom |
1–4× continuous |
| Detector Data |
| Focal plane array/spectral range |
Uncooled microbolometer/7.5–14 µm |
| Detector pitch |
17 µm |
| Image Presentation |
| Resolution |
640 × 480 pixels (VGA) |
| Surface brightness (cd/m2) |
400 |
| Screen size |
4 in. |
| Viewing angle |
80° |
| Color depth (bits) |
24 |
| Aspect ratio |
4:3 |
| Auto-rotation |
Yes |
| Touchscreen |
Optically bonded PCAP |
| Display technology |
IPS |
| Cover glass material |
Dragontrail® |
| Programmable buttons |
1 |
| Viewfinder |
No |
| Measurement |
| Camera temperature range |
- -20 to 120°C (-4 to 248°F)
- 0 to 650°C (32 to 1202°F)
- 300 to 1000°C (572 to 1832°F)
|
| Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F) |
- Range –20 to 120°C (–4 to 248°F):
- –20 to 100°C (–4 to 212°F): ±2°C (±3.6°F)
- 100 to 120°C (212 to 248°F): ±2%
- Range 0 to 650°C (32 to 1202°F):
- 0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
- 100 to 650°C (212 to 1202°F): ±2%
- Range 300 to 1000°C (572 to 1832°F): ±2%
|
| Screening Mode |
| Sampling average mode |
Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature Accuracy (drift): ±0.3°C (±0.5°F)1 |
| Inspection Mode |
| FLIR Inspection route |
Enabled in the camera |
| Measurement Analysis |
| Spotmeter |
3 in live mode |
| Area |
3 in live mode |
| Emissivity correction |
Yes: variable from 0.01 to 1.0 or selected from materials list |
| Measurement corrections |
Yes |
| External optics/windows correction |
Yes |
| Set-up |
| Color palettes |
Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC |
| Setup commands |
Local adaptation of units, language, date and time formats |
| Languages |
21 |
| Service Functions |
| Camera software update |
Using USB cable or SD card |
| Storage of Images |
| Storage media |
Removable memory; SD card (8 GB) |
| Time lapse (periodic image storage) |
No |
| Remote control operation |
Using USB cable or Wi-Fi |
| Image file format |
Standard JPEG, measurement data included. Infrared-only mode |
| Image Annotations |
| Voice |
60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video |
| Text |
Text from predefined list or soft keyboard on touchscreen |
| Visual image annotation |
Yes |
| Image sketch |
Yes: on infrared images only |
| Sketch |
From touchscreen |
| METERLiNK |
Wireless connection (Bluetooth) to:
FLIR meters with METERLiNK |
| Compass |
Yes |
| Laser distance meter information |
Yes |
| GPS |
Yes: location data automatically added to every still image and the first frame in video from built-in GPS |
| Video Recording in Camera |
| Radiometric infrared-video recording |
RTRR (.csq) |
| Non-radiometric infrared-video recording |
H.264 to memory card |
| Visual video recording |
H.264 to memory card |
| Video Streaming |
| Radiometric infrared-video streaming (compressed) |
Over UVC |
| Non-radiometric video streaming (compressed: IR, MSX, visual, Picture in Picture) |
- H.264 (AVC) over RTSP (Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP (Wi-Fi)
|
| Visual video streaming |
Yes |
| Digital Camera |
| Resolution |
5 MP with LED light |
| Focus |
Fixed |
| Field of view |
53° × 41° |
| Video lamp |
Built-in LED light |
| Data Communication Interfaces |
| Interfaces |
USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| METERLiNK/Bluetooth |
Communication with headset and external sensors |
| Wi-Fi |
Peer to peer (ad hoc) or infrastructure (network) |
| Audio |
Microphone and speaker for voice annotation of images |
| USB |
USB Type-C: data transfer/video/power |
| USB standard |
USB 2.0 High Speed |
| Video out |
DisplayPort |
| Video connector type |
DisplayPort over USB Type-C |
| Power System |
| Battery type |
Rechargeable Li-ion battery |
| Battery voltage |
3.6 V |
| Battery operating time |
> 2.5 hours at 25°C (68°F) and typical use |
| Charging system |
In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging time (using two-bay charger) |
2.5 hours to 90% capacity with charging status indicated by LEDs |
| Charging temperature |
0°C to +45°C (+32°F to +113°F), except for the Korean market: +10°C to +45°C (+50°F to +113°F) |
| External power operation |
AC adapter 90–260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional) |
| Power management |
Automatic shut-down and sleep mode |
| Environmental Data |
| Operating temperature range |
–15 to +50°C (5–122°F) |
| Storage temperature range |
–40 to +70°C (–40 to +158°F) |
| Humidity (operating and storage) |
IEC 60068-2-30/24 hours/95% relative humidity 25–40°C (77–104°F)/two cycles |
| EMC |
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR part 15 B, class B (emission)
|
| Radio spectrum |
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR part 15 C
- FCC 47 CFR part 15 E
|
| Encapsulation |
IP 54 (IEC 60529) |
| Shock |
25g (IEC 60068-2-27) |
| Vibration |
2g (IEC 60068-2-6) |
| Drop |
Designed for 2 m (6.6 ft.) |
| Safety |
Camera:
- IEC/EN 60950-1, IEC/EN 62368-1
Power supply:
- IEC/EN 62368-1
- CSA/UL/KC/SAA/PSE 60950-1
|
| Physical Data |
| Weight (including battery) |
1 kg (2.2 lb.) |
| Size (L × W × H) |
278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.) |
| Battery weight |
140 g (4.9 oz.) |
| Battery size (L × W × H) |
150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.) |
| Tripod mounting |
UNC 1/4"-20 |
| Housing material |
PCABS with TPE, magnesium |
| Color |
Black |
| Shipping Information |
| Packaging type |
Cardboard box |
| Packaging, weight |
5.8 kg (12.8 lb.) |
| Packaging, size |
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.) |
| EAN-13 |
4743254004597 |
| UPC-12 |
845188022594 |
| Country of origin |
Estonia |
