FLIR DM92 Next Generation Multimeter Tackles Every Challenge

Name: FLIR DM92 Next Generation Multimeter Tackles Every Challenge
Brand: FLIR
SKU: FLIRDM92
Price: 44447.00 USD
Availability: InStock

0 reviews | Catalog: DM92 | UPC: 793950370926 | Model: FLIR DM92

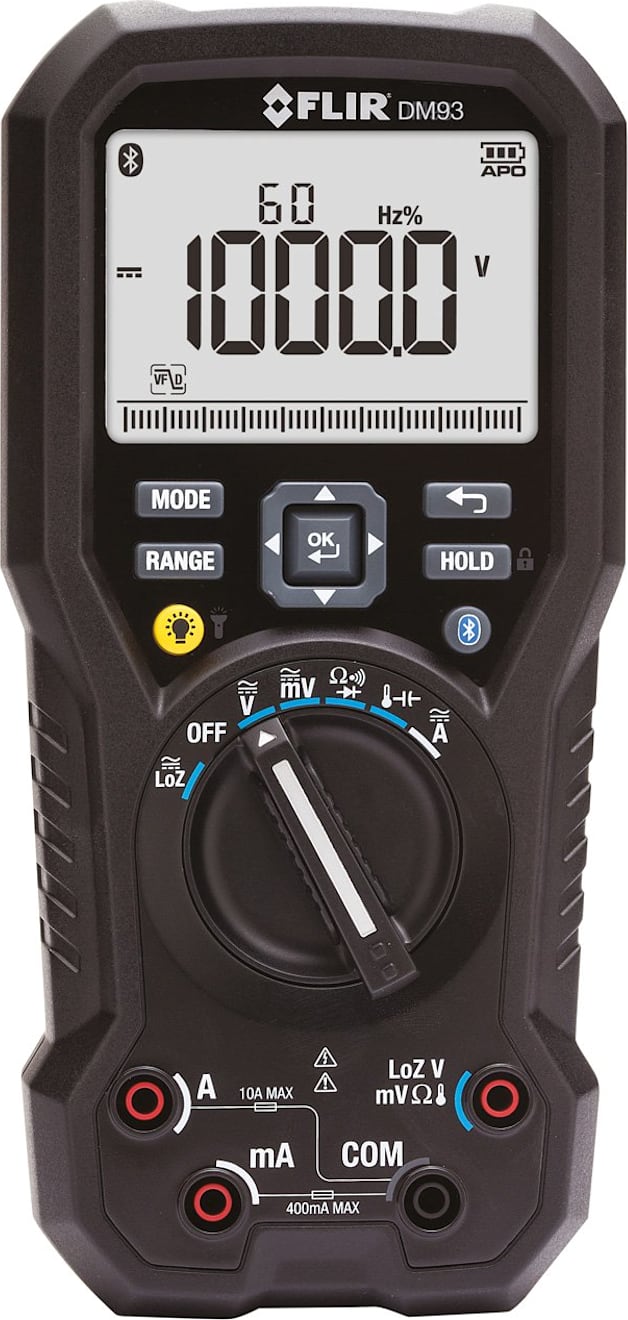

FLIR_DM92_Next_Generation_Multimeter_Tackles_Every_Challenge_Main_View

Compare

FLIR Industrial Digital Multimeter with LoZ and VFD Mode

No need to select AC or DC Mode for quick tests
Backlight features user-configurable timeout
Large, sharp display is easy to see
Tool-less battery changing
Built-in tilt stand
VFD Mode: Accurately analyze non-sinusoidal waveforms and noisy signals in VFD motors and drive controllers.
LoZ Mode: Use the Low Impedance Input filter to eliminate ghost voltage readings in long-run applications.
Bright Dual-LED Worklights: Make your work safer and easier by illuminating dimly lit inspection areas.
Rugged, Shock-Resistant: Double-molded rubber case design enhances reliability on the job site and durability for the long haul.

View Product Details

List Price: $44,447.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the FLIR DM92

FLIR TA10 Protective case for DM9x Series

Catalog: TA10

(0)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

FLIR TA50 Universal Magnetic Hanging Strap

Catalog: TA50

(0)

In Stock!

Add to Cart

FLIR TA80 Universal CAT IV Silicone Test Probes

Catalog: TA80

(0)

In Stock!

Add to Cart

FLIR TA60 Universal Thermocouple probe with adapter

Catalog: TA60

(0)

In Stock!

Add to Cart

FLIR TA70 Universal CAT IV Insulated Alligator Test Probe Clips

Catalog: TA70

(0)

In Stock!

Add to Cart

The FLIR DM92 RMS Industrial Multimeter is a rugged yet precise 1000V AC/DC multimeter. It offers many of the features of the FLIR DM93 multimeter, yet without the Bluetooth connectivity some users won’t need. The DM92 includes a VFD mode to better analyze the non-sinusoidal waveforms and noisy signals associated with variable frequency drive motors and controllers. The LoZ mode filters out unwanted ghost voltage for better measurement accuracy over long runs. The internal memory of the FLIR DM92 will store up to 99 measurements for later recall and analysis.

The large, crisp display of the DM92 is easy to read, and is assisted in dark areas by a bright LED backlight. A built in stand makes the meter convenient for stationary or bench top work, while two LED work lights brighten those challenging sites. A thick rubberized housing makes the DM92 rugged enough even for the harshest environments. FLIR even backs the FLIR DM92 RMS Industrial Multimeter with a lifetime warranty.

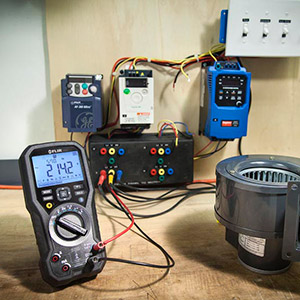

FLIR DM92 Digital Multimeter Applications

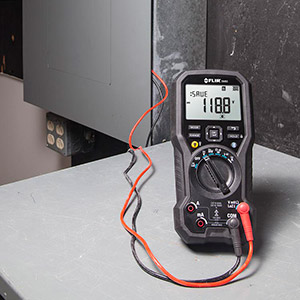

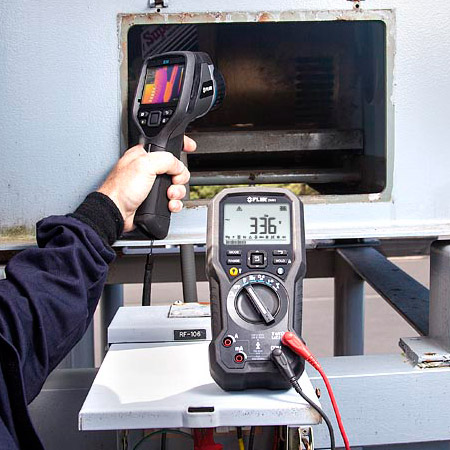

METERLink® Compatibility	Data Record

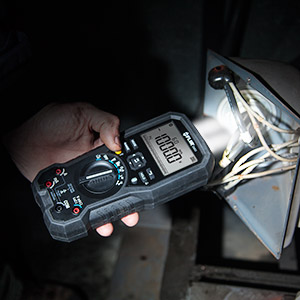

True RMS Industrial Multimeter	Worklight

TECHNICAL SUMMARY	MAX RANGE	BASIC ACCURACY
DC Voltage	1000.0V	±0.05%
AC Voltage	1000.0V	±0.5%
VFD Voltage	1000.0V	±0.5%
DC Current	10.000A	±0.2%
AC Current	10.000A	±1.0%
Resistance	40.00MΩ	±0.2%
Continuity Threshold	30Ω	±0.2%
Frequency	100.00kHz	±5 Digits
Capacitance	40.00mF	±0.9%
Temperature	-328 to 2192°F, -200 to 1200°C	±1.0%
Diode Test	2V	±1.5%
GENERAL INFORMATION
Display Counts	40,000
IP Rating, Drop Test	IP 54, 2m (6.6’)
Category Rating	CAT IV-600V, CAT III-1000V
Battery Type	6 x AAA
Bluetooth Range Max	32ft (10m)
Data Recording	20,000 Pts (125 days max)
Memory	99 internal storage locations
Warranty	Limited Lifetime*

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	1000 V
Resolution AC Volts	0.1 mV
Maximum Voltage DC	1000 V
Resolution DC Volts	0.1 mV
Maximum Current AC	10 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 uA (0.00010 mA)
Basic Accuracy V DC	0.05%
# Digit Display	5
Counts	40000 .
Backlight	Yes
Manual/Autoranging	Auto-ranging
Decibels	Yes
Resistance	Yes Resistance 40.00MΩ
Frequency	Yes Frequency 100.00kHz
Capacitance	Yes Capacitance 40.00mF
Temperature	Yes
Diode Testing	Yes Diode Testing 2V
CAT Rating	IV CAT Rating CAT IV-600V, CAT III-1000V
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	Yes Low-Pass Filter VFD Mode
Test Equipment General Attributes
Unique Features	• LoZ Mode eliminates ghost voltage error readings caused by long wires that share a conduit • Powerful LED worklights eliminate the need for a flashlight while performing tests in dim lighting • Manually store and recall up to 99 readings • Durable double molded construction (IP54, 2m Drop Test)
Warranty	1 LIMITED LIFETIME (1 YEARS)
Warranty Details	Limited Lifetime*
Additional Info/Comments	Includes: CAT IV Silicone Test Leads, 6 AAA Batteries, User Manual/CD, and Limited Lifetime Warranty.
Safety Approval	CE, UL
Storage	Internal Memory
IP Rating	IP54
Product Weight	1 LBS
Product Height	7.4 IN
Product Length	3.2 IN
Product Width	2.0 IN
Shipping Weight	2.3 LBS
Data Logging	Yes
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Battery Type	AAA Battery Type 6 AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	12.6 IN
UPC	793950370926
Shipping Length	5.5 IN
Shipping Width	4.3 IN
