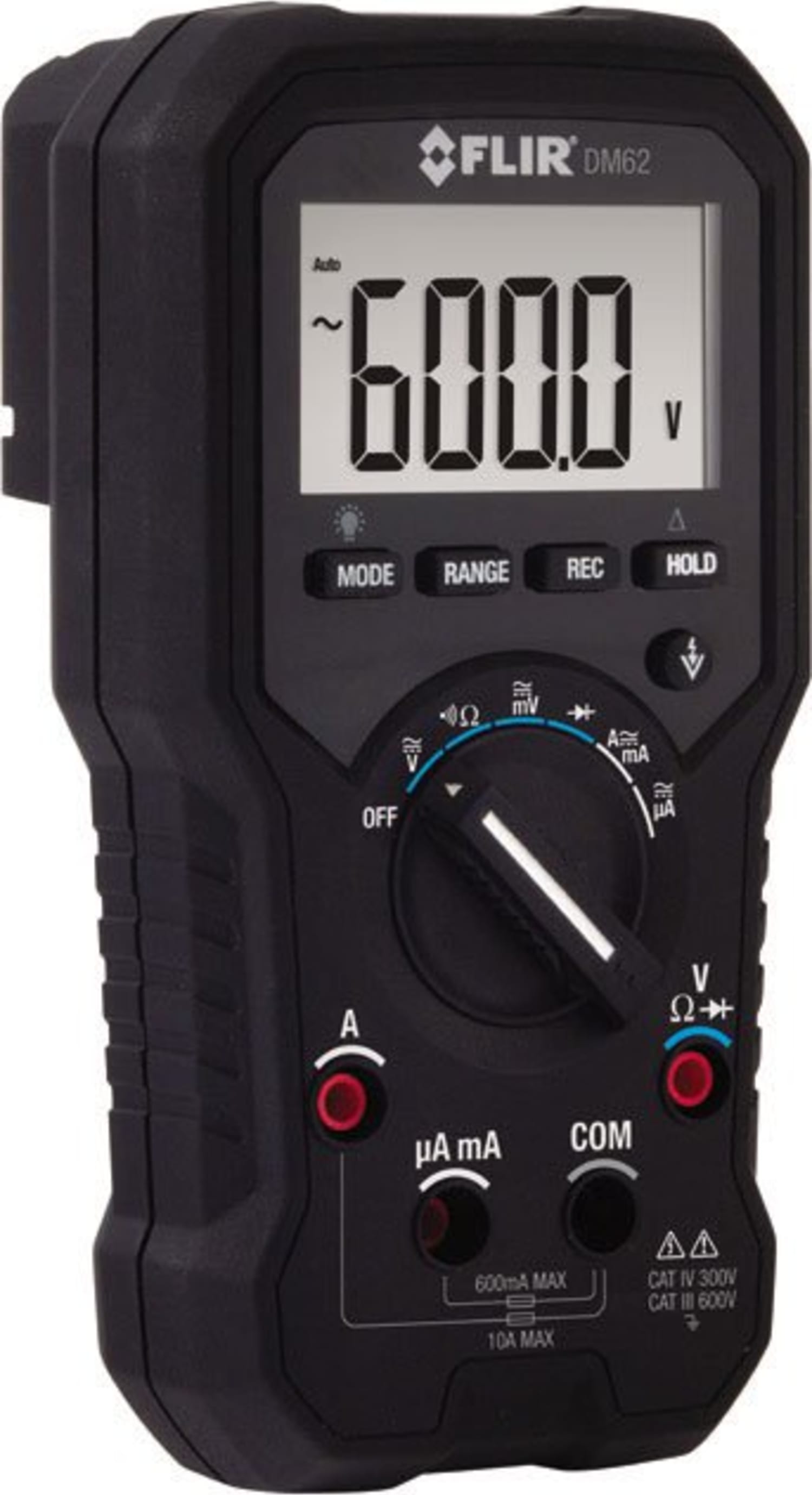

FLIR DM62 True RMS Multimeter

Name: FLIR DM62 True RMS Multimeter
Brand: FLIR
SKU: FLIRDM62
Price: 95.99 USD
Availability: InStock

0 reviews | Catalog: DM62 | UPC: 793950381625 | Model: FLIR DM62

Compare

TRMS Digital Multimeter with non-Contact Voltage

All the Features You Need in One Tool

Safely check voltage with non-contact voltage detection
Measure both AC/ DC voltage and current (A, mA, μA)
Diagnose faults with broad DMM test functions including variable-frequency drive (VFD) mode and voltage range up to 600V

Fast Efficient Testing and Troubleshooting

Operate the meter with one hand, thanks to compact design and easy-to-access buttons
Work efficiently using integrated non-contact voltage detector with a flashing backlight and audible indicator
Navigate the meter’s on-screen menu system easily

Tough, Reliable, High Quality

Take the meter with you anywhere - 2m drop-tested and IP40 rated
Work with peace of mind knowing your meter has CAT IV-300V, CAT III-600V Safety Category Rating
Make your job easier with helpful features including auto power off, MIN-MAX-AVG, relative mode, and data hold

View Product Details

Your Price: $95.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	FLIR DM62 TRMS Digital Multimeter with non-Contact Voltage	FLIR DM66 Electrical and Field Service TRMS Multimeter with VFD mode	FLIR DM66-NIST Electrical and Field Service TRMS Multimeter with VFD mode and NIST
Price
In Stock
Style	Hand-Held	Hand-Held	Hand-Held
Measures AC V	Yes	Yes	Yes
Measures DC V	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

FLIR DM62 Accessories

Choose a Category

DMM Probe Kits

for the FLIR DM62

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

FLIR DM62 True RMS Multimeter, 600V

Scan entire targets for electrical issues with up to 160 x 120 thermal resolution
Safely check for live connections using non-contact temperature measurement
Pinpoint exact hot spot locations with laser or crosshairs
Easily reach difficult, dark locations thanks to narrow jaw and built-in worklights

The DM62 offers essential measurement features including True RMS AC/DC voltage and current, non-contact voltage detection, VFD mode, and extended voltage measurement range up to 600 V. Whether you're a commercial electrician, electronics technician, or just need the right tool for DIY, the DM62 provides precise measurements and quality construction for everyday use.

The DM66 has all the great features of the DM62 plus the added benefit of low impedance (LoZ) mode to prevent ghost voltage from delivering false readings. It measures frequency, diode, capacitance, and temperature, for a comprehensive feature set ideal for commercial electricians, automation field service, or electronics repair technicians.

FLIR DM62 Specifications
Continuity Check	30Ω and 480Ω
Measuring Rate	5 samples per second
Safety Category Rating	CAT IV-300V, CAT III-600V
IP Rating	IP40
Electrical Specifications
AC/DC Volts	Range: 600.0V
AC/DC Volts	Accuracy: ±1.0%/0.4%
AC/DC mVolts	Range: 600.0mV
AC/DC mVolts	Accuracy: ±1%/0.4%
AC/DC Amps	Range: 10.00A
AC/DC Amps	Accuracy: ±1.5%/1.0%
AC/DC mAmps	Range: 600.0mA
AC/DC mAmps	Accuracy: ±1.0%/0.7%

FLIR DM62/DM64/DM66/DM166 General Specifications
Model Number	FLIR DM166	FLIR DM66	DM64	DM62
Thermal Imaging
IR Resolution	60 × 80 pixels (4,800 pixels)	–	–	–
Thermal Image Palettes	Rainbow, iron, gray scale	–	–	–
Temperature Range	–10 to 150°C (14 to 302°F)	–	–	–
Focus	Fixed	–	–	–
Electrical Measurements
True RMS	Yes
	Range	Basic Accuracy	Range	Basic Accuracy
AC / DC Voltage	600.0 V	±0.7% / ±0.5%	600.0 V	±1.0% / ±0.4%
AC / DC mVolt	600.0 mV	±1% / ±0.5%
VFD AC Voltage	600.0 V RMS	±1.0%	600.0 V RMS	±1.0%
AC / DC Amperage	10.00 A	±1.0% / ±0.7%	10.00 A	±1.5% / ±1.0%
AC / DC mAmp	600.0 mA	±1.0% / ±0.7%
AC / DC µAmp	4000 µA	±1.5%
Resistance	600.0 Ω 600.0 kΩ 6.000 MΩ 60.00 MΩ	±0.3% ±0.5% ±0.9% ±1.5%	6.00 kΩ 600.0 kΩ 60.00 MΩ	±0.3% ±0.5% ±0.9%
Capacitance*	200.0 nF 200.0 µF 2.000 mF 10.00 mF	±1.5% ±1.5% ±2.0% ±5.0%	200.0 nF 2000 µF 10.00 mF	±1.5% ±1.5% ±4.5%
AC / DC LoZ V*			600.0 V	±2.0%
Diode Test	3.000 V	±0.9%	3.000 V	±0.9%
Frequency Range	99.99 kHz	± 1.0%	99.99 kHz	± 1.0%
Continuity Check	Between 30 Ω and 480 Ω
Thermocouple	–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)
Additional Data
Safety Category Rating	IEC 61010-1, CAT III-600V, CAT IV-300V
IP Rating	IP40
Auto Power Off	Yes
Drop Test	3 m	2 m
Warranty	10 yrs on product and detector		Limited lifetime warranty

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Current AC	10 A
Minimum Current AC	600 mA
Maximum Current DC	10 A
Minimum Current DC	600 mA
# Digit Display	3.5
Backlight	Yes
Resistance	Yes
Frequency	No
Diode Testing	Yes
CAT Rating	IV
CAT Voltage	300 V, 600 V CAT Voltage CAT IV-300V, CAT III-600V
Peak Hold	Yes
Data Hold	Yes
Test Equipment General Attributes
Unique Features	Electrical and Field Service TRMS Multimeter with VFD mode
Warranty Details	Limited lifetime warranty
IP Rating	IP40
Product Weight	11.8 LBS
Product Height	6.3 IN
Product Length	2 IN
Product Width	3.2 IN
Shipping Weight	1 LBS
Battery Type	AAA
Power Supply Voltage	Battery Powered Power Supply Voltage 2 AAA batteries
Country of Origin	Taiwan
