FLIR DM284 KIT1 Imaging Multimeter with IGM

Name: FLIR DM284 KIT1 Imaging Multimeter with IGM
Brand: FLIR
SKU: FLIRDM284 KIT1
Price: 739.98 USD
Availability: InStock

0 reviews | Model: FLIR DM284 KIT1

Compare

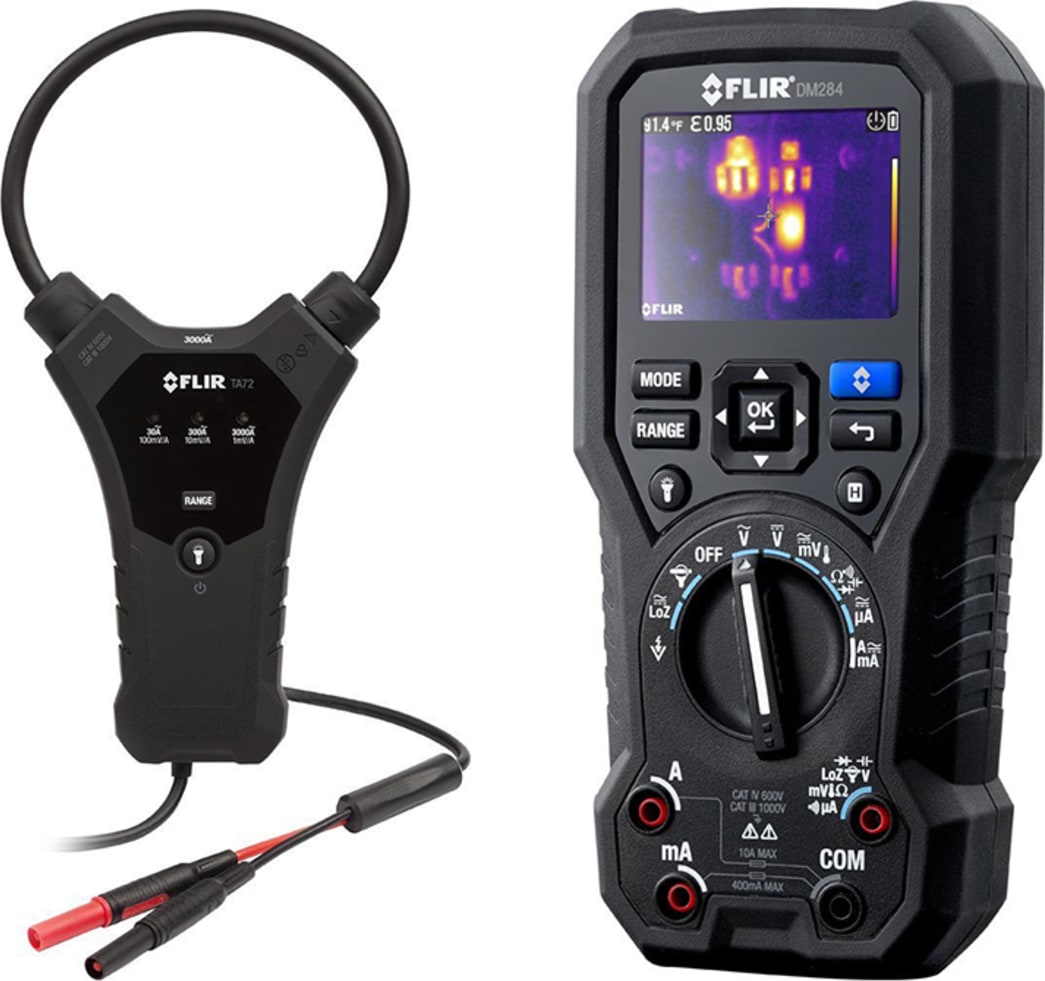

FLIR Professional Imaging Multimeter with IGM and TA72 Flexible 10" Current Probe

A built-in 160x120-resolution thermal camera sensor visually guides you to an electrical problem
18 measurement functions
Performs 18 measurement functions including True RMS, VFD mode, LoZ, NCV, and more
Thermocouple input + test probe
The DM284 includes high-quality test probes and a Type K thermocouple input
Smart design and functionality
Intuitive user interface, large display screen, onboard laser pointer, LED worklight
Durable
Drop-tested and IP rated for splash and water resistance
Warranty
Includes 10-year warranty

View Product Details

List Price: $759.98

Your Price: $739.98

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	FLIR DM284 KIT1 FLIR Professional Imaging Multimeter with IGM and TA72 Flexible 10" C ...	FLIR DM284 KIT2 FLIR DM284 Thermal Imaging TRMS Multimeter with TAZ74 18" Flexible Cu ...	FLIR DM285 Industrial Thermal Imaging Multimeter with Datalogging / Wireless Connectivity ...	FLIR DM285-NIST Industrial Thermal Imaging Multimeter with Datalogging / Connectivity, IGM ...	FLIR DM285-KIT Professional Imaging Multimeter Kit includes: DM285 + TA04-KIT	FLIR DM285-FLEX-KIT Professional Imaging Multimeter Kit includes: DM285-KIT + TA10-F + TA7 ...	FLIR DM284-OB Professional Imaging Multimeter with IGM - This open box item may be missing ...
Price
In Stock
Style	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held	Hand-Held
Measures AC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Measures DC V	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

FLIR DM284 KIT1 Accessories

Choose a Category

for the FLIR DM284 KIT1

FLIR TA04-KIT Lithium Polymer Rechargeable Battery Kit for DM284

Catalog: TA04-KIT

(0)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

FLIR Thermal Studio FLIR Thermal Studio 1.0 (License Key/QR Code) 2 Users - perpetual...

Catalog: T300258

(0)

In Stock!

Add to Cart

Infraspection Level 1 Course Level 1 thermography course - distance learning

(0)

In Stock!

Add to Cart

FLIR DM284 KIT1 Imaging Multimeter with IGM

A built-in 160x120-resolution thermal camera sensor visually guides you to an electrical problem
18 measurement functions
Thermocouple input + test probe
The DM284 includes high-quality test probes and a Type K thermocouple input
Durable
Drop-tested and IP rated for splash and water resistance
Warranty
Includes 10-year warranty

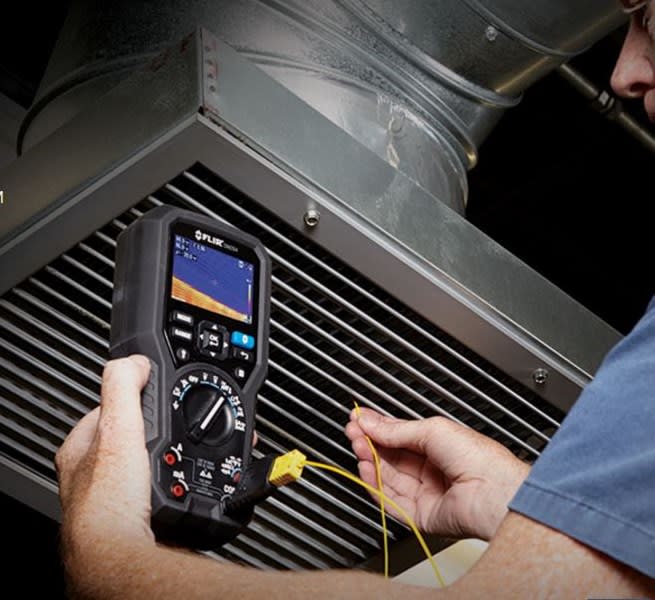

The FLIR DM284 Imaging Multimeter with IGM is a professional, all-in-one True RMS digital multimeter and thermal imager that can show you exactly where an electrical problem is to speed up troubleshooting. Featuring Infrared Guided Measurement (IGM) technology powered by a built-in 160x120 FLIR thermal imager, the DM284 visually guides you to the precise location of an electrical problem, helping you pinpoint hot spots faster and more efficiently.

	Troubleshoot Fast with IGM Instantly spot electrical issues and get more done with the 160x120-resolution FLIR thermal imager. Plus, the all-in-one tool is convenient to carry on you so you always have access to thermal imaging.
	Solve Challenging Problems Easily Featuring 18 measurement functions including True RMS, LoZ, and NCV, you can verify potential issues with trusted readings every time – even for the most complex measurements. The DM284 also includes a thermocouple input and allows you to view thermal and electrical measurements simultaneously.
	Functional Design The simple user interface is intuitive to use and the thermal camera features 3 color palettes to choose from. Built-in worklights and a laser pointer help you access difficult locations with lighting issues and pinpoint the location of the problem in the thermal image.

FLIR DM284 Specifications
Thermal Imaging
View Thermal and Electrical / Thermocouple Measurements Simultaneously	Yes
Image Resolution	19,200 pixels (160 x 120)
Sensitivity	150 mK
Emissivity	4 Presets with Custom Adjustment
Accuracy	3°C or 3.5%
Range	Range
FOV (w x h)	46° x 35°
Focus	Fixed
Palette	Iron, Rainbow, Greyscale
Level & Span	Auto
Measurements	Range	Accuracy
AC / DC Volts	1000V	1% / 0.09%
AC / DC Volts	600.0mV	1% / 0.05%
VFD	1000V	±1.0%
1000V	±1.5%
AC / DC mAmps	400.0mA	±1.5%
AC / DC μAmps	±1.0%
Resistance	50 MΩ	0.9%
Continuity	Yes
Capacitance	10.00mF	1.9%
Diode	Yes	Yes
Flex Clamp Range	3000A AC (Optional TA72/74)	±3.0% + 5 digits
Frequency Range	99.99kHz	0.1%
Thermocouple	Type K -40°F to 752°F (-40°C to 400°C)	1.0% + 5.4°F (DMM) ±1.0% + 9°F (IGM)
General Meter
Drop Test	3m
IP Rating	IP54
Worklights	Yes
Display Size	2.8"
Battery Life Minimum (all modes on)	3 hrs Alkaline, 12 hrs optional rechargeable battery (TA04-KIT)
Warranty	10 year
Auto Power Off	Yes
Safety	CAT III 1000 V, CAT IV 600 V
Size (H x W x L)	200 x 95 x 49mm; Weight: 537g

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Maximum Current AC	3000 A
Minimum Current AC	400 mA
Maximum Current DC	10 A
Minimum Current DC	400 mA
Backlight	Yes
Manual/Autoranging	Auto-ranging
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
CAT Voltage	1,000 V
Low-Pass Filter	Yes
Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size	160 x 120 Sensor
Thermal Sensitivity	150 mK (NETD)
Temperature Range Max	302 F
Temperature Range Min	14 F
Image Frequency	9 Hz
Field of View	46x35 Degrees
Screen Size	2.8 IN
IR/Overlay Fusion Image	No
Video Output	No
Focus	Fixed
Laser Spot	Yes
Picture in Picture	No
Video Recording	No
Moveable Spots	No
Touch Screen Display	No
Accuracy	3°C or 3.5%
Battery operating time Continuous	3 HR
Camera Light	Yes
IR Digital Zoom	No
Voice Annotation	No
Test Equipment General Attributes
Unique Features	Powerful 160x120 thermal imaging sensor Adjustable emmissivity for more accurate temperature readings Includes bright worklights and laser pointer Multiple color palettes Premium test leads included Built-in non-contact voltage detection
Warranty	10 YEARS
IP Rating	IP54
Shipping Weight	1 LBS
HTS/Schedule B Number	9030.31.0000
ECCN Number	6A993.a
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
