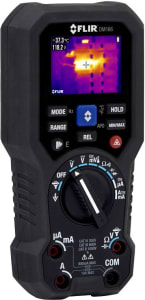

FLIR DM166 True RMS Multimeter with IGM, 600V

Quickly scan for overheating components with IGM
Diagnose faults with broad DMM test functions
Troubleshoot easier with the unique combination of onboard thermal imaging and traditional DMM test functions

The FLIR DM166 is the most affordable multimeter with built-in thermal imaging - a must-have tool for commercial electricians, automation, electronics, and HVAC technicians. Featuring Infrared Guided Measurement (IGM™) powered by an 80 x 60 FLIR thermal imager, the DM166 visually guides you to the precise location of temperature anomalies and potential problems faster, more safely, and efficiently. The feature-packed multimeter is an ideal tool for troubleshooting and diagnosing complex issues in both high-voltage and low-voltage applications.

FLIR DM166 Specifications
IR Resolution	80 x 60 pixels (4,800 pixels)
Temperature Sensitivity	≤150mK
Temperature Accuracy	3°C or 3%
Temperature Range	14 to 302°F (-10 to 150°C)
Field of View	50.0° x 38°
Focus	Fixed
Thermal Imaging Palette	Iron, Rainbow, Grayscale
Continuity Check	30Ω and 480Ω
Electrical Specifications
AC/DC Volts	Range: 600.0V
AC/DC Volts	Accuracy: ±0.7%/0.5%
AC/DC mVolts	Range: 600.0mV
AC/DC mVolts	Accuracy: ±1%/0.3%
AC/DC Amps	Range: 10.00A
AC/DC Amps	Accuracy: ±1.0%/0.7%
AC/DC mAmps	Range: 600.0mA
AC/DC mAmps	Accuracy: ±1.0%/0.7%

FLIR DM62/DM64/DM66/DM166 General Specifications
Model Number	FLIR DM166	FLIR DM66	DM64	DM62
Thermal Imaging
IR Resolution	60 × 80 pixels (4,800 pixels)	–	–	–
Thermal Image Palettes	Rainbow, iron, gray scale	–	–	–
Temperature Range	–10 to 150°C (14 to 302°F)	–	–	–
Focus	Fixed	–	–	–
Electrical Measurements
True RMS	Yes
	Range	Basic Accuracy	Range	Basic Accuracy
AC / DC Voltage	600.0 V	±0.7% / ±0.5%	600.0 V	±1.0% / ±0.4%
AC / DC mVolt	600.0 mV	±1% / ±0.5%
VFD AC Voltage	600.0 V RMS	±1.0%	600.0 V RMS	±1.0%
AC / DC Amperage	10.00 A	±1.0% / ±0.7%	10.00 A	±1.5% / ±1.0%
AC / DC mAmp	600.0 mA	±1.0% / ±0.7%
AC / DC µAmp	4000 µA	±1.5%
Resistance	600.0 Ω 600.0 kΩ 6.000 MΩ 60.00 MΩ	±0.3% ±0.5% ±0.9% ±1.5%	6.00 kΩ 600.0 kΩ 60.00 MΩ	±0.3% ±0.5% ±0.9%
Capacitance*	200.0 nF 200.0 µF 2.000 mF 10.00 mF	±1.5% ±1.5% ±2.0% ±5.0%	200.0 nF 2000 µF 10.00 mF	±1.5% ±1.5% ±4.5%
AC / DC LoZ V*			600.0 V	±2.0%
Diode Test	3.000 V	±0.9%	3.000 V	±0.9%
Frequency Range	99.99 kHz	± 1.0%	99.99 kHz	± 1.0%
Continuity Check	Between 30 Ω and 480 Ω
Thermocouple	–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)
Additional Data
Safety Category Rating	IEC 61010-1, CAT III-600V, CAT IV-300V
IP Rating	IP40
Auto Power Off	Yes
Drop Test	3 m	2 m
Warranty	10 yrs on product and detector		Limited lifetime warranty

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Current AC	10 A
Minimum Current AC	600 mA
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	IV
CAT Voltage	300 V, 600 V
Test Equipment General Attributes
Warranty	10 YEARS
Warranty Details	10 yrs on product and detector
IP Rating	IP40
Product Weight	15.1 OUNCES (0.944 LBS)
Product Height	1.9 IN
Product Length	7.5 IN
Product Width	3.4 IN
Shipping Weight	1 LBS
ECCN Number	6A993.a
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

5

Name: FLIR DM166 True RMS Multimeter with IGM
Brand: FLIR
SKU: FLIRDM166
Price: 334.99 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Works Great

5.0

I really like this meter. I can view the heat signature while also monitoring the current. I love this function. It warns me if I have the probes plugged in the wrong sockets when measuring current.

Verified Purchase joe on Jan 16, 2023
