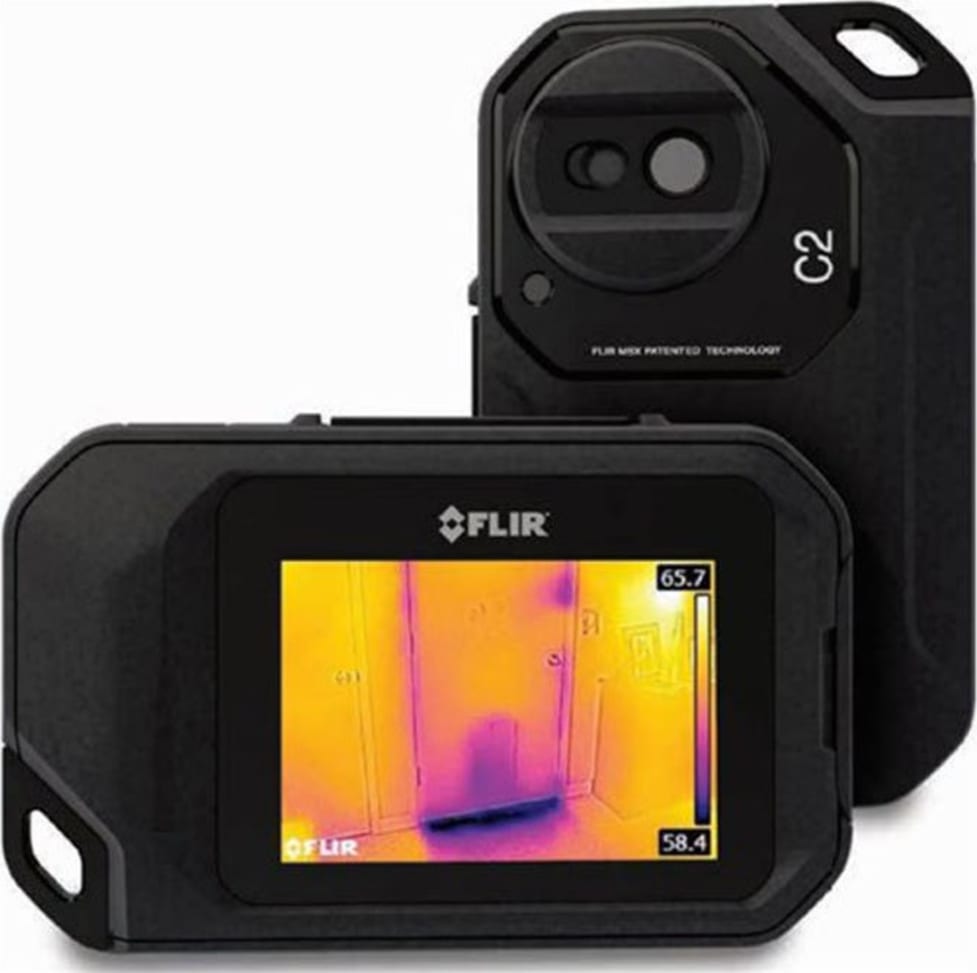

| FLIR C2-NIST Specifications |
| Imaging and Optical Data |
| IR Sensor |
80 × 60 (4,800 measurement pixels) |
| Thermal Sensitivity |
‹ 0.10°C |
| Field of View |
41° x 31° |
| Minimum Focus Distance |
Thermal: 0.15 m (0.49 ft.)
MSX®: 1.0 m (3.3 ft.) |
| Image Frequency |
9 Hz |
| Spectral Range |
7.5 - 14 µm |
| 3" Display (Color) |
320 x 240 pixels |
| Auto Orientation |
Yes |
| Touch Screen |
Yes |
| Image Presentation Modes |
| Thermal Image |
Yes |
| Visual Image |
Yes |
| MSX® |
Yes |
| Gallery |
Yes |
| Measurement |
| Object temperature range |
-10°C to +150°C (14 to 302°F) |
| Accuracy |
±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
| Measurement Analysis |
| Spotmeter |
On/Off |
| Emissivity Correction |
Yes; matte/semi/glossy + user set |
| Measurments Correction |
Reflected apparent temperature Emissivity |
| Set-Up |
| Color Palettes |
Iron, Rainbow, Rainbow HC, Gray |
| Storage Media |
Internal memory stores at least 500 sets of images |
| Image file format |
Standard JPEG, 14-bit measurement data included |
| Video Streaming |
| Non-Radiometric IR-Video Streaming |
Yes |
| Visual Video Streaming |
Yes |
| Digital Camera |
| Digital Camera |
640 x 480 pixels |
| Digital Camera, Focus |
Fixed Focus |
| Additional Information |
| USB, Connector Type |
USB Micro-B: Data transfer to and from PC, iOS and Android |
| Battery |
3.7 V Rechargeable Li-ion polymer battery |
| Battery Operating Time |
2 hours |
| Charging System |
Charged inside the camera |
| Charging Time |
1.5 hours |
| External Power Operation |
AC adapter, 90-260 VAC input
5 V output to camera |
| Power Management |
Automatic shut-down |
| Operating Temperature Range |
-10°C to +50°C (14 to 122°F) |
| Storage Temperature Range |
-40°C to +70°C (-40 to 158°F) |
| Weight |
0.13 kg (0.29 lb.) |
| Size (L x W x H) |
125 x 80 x 24 mm (4.9 x 3.1 x 0.94 in.) |
| System Includes |
Infrared camera
Battery (inside camera)
Lanyard
Power supply/charger with EU, UK, US, CN and Australian plugs
Printed Getting Started Guide
USB memory stick with documentation
USB cable |
