FLIR Breach PTQ136-OB Thermal Monoculars - Detector Size: 320 × 256 Sensor, Image Frequency: 60 Hz

Name: FLIR Breach PTQ136-OB Thermal Monoculars - Detector Size: 320 × 256 Sensor, Image Frequency: 60 Hz
Brand: FLIR
SKU: FLIRBreach PTQ136-OB
Price: 2371.26 USD
Availability: InStock

0 reviews | Catalog: TAB176WN8Q14001 | UPC: 849815008364 | Model: FLIR Breach PTQ136-OB

Compare

Breach PTQ136 Thermal Imaging Multi-Purpose Monocular, Boson 320x256 (12 m) 60Hz Core - Used briefly for demo. All parts included.

Used briefly for demo. All parts included.
Exceptional vision
Advanced image processing produces excellent image clarity, day or night
- New FLIR Boson thermal core with 12 μm pixel pitch and 320 x 240 resolution
- Bright, high definition FLCOS display
- Industry-leading on-chip video processing
Convenient hands-free operation
Easy adaptability to wide selection of head and helmet mounts
- DoveTail / Bayonet interfaces
- Quickly attaches to helmet and head mounts using mini-rail feature
- Weighs less than 8 ounces (210g)
Superior value
Multiple features offer a superior, customizable experience
- On board video recording with to 2.5 hours of internal storage or 1,000 pictures
- Multiple palettes and reticle patterns
- Digital compass/inclinometer for precise range and target orientation

View Product Details

List Price: $2,795.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories

for the FLIR Breach PTQ136-OB

FLIR ANHG000002 Swing Arm #37 Mini Rail Adapter to Bayonet Mount (Mounts NV Monocular...

Catalog: ANHG000002

(0)

In Stock!

Add to Cart

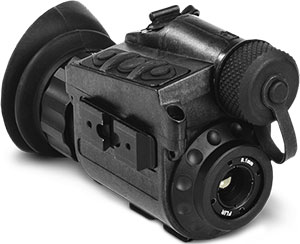

FLIR Breach PTQ136 Thermal Imaging Monocular

Exceptional vision
Advanced image processing produces excellent image clarity, day or night
Convenient hands-free operation
Easy adaptability to wide selection of head and helmet mounts
Superior value
Multiple features offer a superior, customizable experience

FLIR BREACH PTQ136

Built for the rigors of law enforcement, the FLIR Breach PTQ136 spots the heat of suspects and objects in total darkness. Featuring the new FLIR Boson core and a compact design, the FLIR Breach offers unmatched tactical awareness. Weighing only 7.4 ounces (210 grams), the FLIR Breach can be concealed in a pocket or mounted to a helmet with its mini-rail feature, while adding minimal weight to officers' heavy gear. Additional features include onboard recording and seven palettes for fast detection of suspects or evidence, day or night.


EXCEPTIONAL VISION	CONVENIENT HANDS-FREE OPERATION	SUPERIOR VALUE
Advanced image processing produces excellent image clarity, day or night	Easy adaptability to wide selection of head and helmet mounts	Multiple features offer a superior, customizable experience
New FLIR Boson thermal core with 12 μm pixel pitch and 320 x 240 resolution Bright, high definition FLCOS display Industry-leading on-chip video processing	DoveTail / Bayonet interfaces Quickly attaches to helmet and head mounts using mini-rail feature Weighs less than 8 ounces (210g)	On board video recording with 2.5 hours of internal storage or 1,000 pictures Multiple palettes and reticle patterns Digital compass/inclinometer for precise range and target orientation

Flir Breach PTQ136 Specifications
Detector Type	320 x 256 VOx Microbolometer
Refresh Rate	60 Hz
Start Up	<1.5 seconds
Image Processing	FLIR Proprietary Digital Detail Enhancement™
Lens system	9.1 mm; F/1.04
Optical magnification	1x
Field of View (H x V)	24° x 19°
Digital e-Zoom	1x - 4x continuous
Diopter Adjustment Range	-5 to +5 dpt
Focusing Range	0.25 m to infinity
Eye Relief	16 mm
Display	Quad-VGA (1280 x 960) FLCOS
Video Output	Digital Video
Internal memory	Up to 1,000 images and 2.5 hours of video on internal memory
Temperature Imaging Modes (Image Palettes)	White Hot, Black Hot, Rainbow HC, Ironbow, Sepia, Artic, Outdoor Alert

Thermal Imagers/Law Enforcement Thermal Imagers Template
Detector Size	320 × 256 Sensor Detector Size VOx Microbolometer
Image Frequency	60 Hz
Field of View	24x18 Degrees
Interchangeable Lenses	No
IR Digital Zoom	Yes
General Attributes
Warranty	2 YEARS
Product Weight	0.46 LBS
Warranty Details	2 years standard, 3 years with product registration
Country of Origin	Estonia
Test Equipment General Attributes
Storage	Internal Memory
ECCN Number	6A003.b.4.b
Calibration Included	None
Battery Type	Other Battery Type CR123A 3V Lithium
Power Supply Voltage	Battery Powered

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

FLIR Breach PTQ136-OB Thermal Monoculars - Detector Size: 320 × 256 Sensor, Image Frequency: 60 Hz

Recommended for you

Accessories

for the FLIR Breach PTQ136-OB

FLIR ANHG000002 Swing Arm #37 Mini Rail Adapter to Bayonet Mount (Mounts NV Monocular...

FLIR Breach PTQ136 Thermal Imaging Monocular

FLIR Breach PTQ136 Thermal Imaging Monocular

FLIR BREACH PTQ136

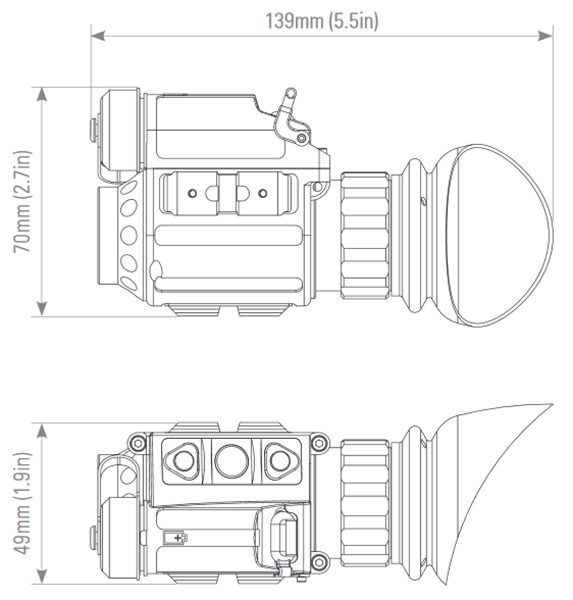

Dimension
