Uncooled microbolometer: 320 x 240 pixels Close-up and telephoto lenses available ResearchIR max software included Matlab compatible Gigabit ethernet interface

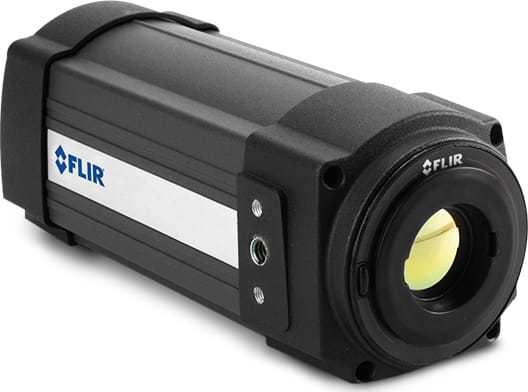

Designed from the ground up to deliver the accurate thermal imaging and repeatable temperature readings you need, the FLIR A325sc provides more than 76,000 accurate temperature measurements in every image. This uncooled thermal imaging camera offers digital input directly to FLIR ResearchIR for start-and-stop recording, making it an excellent choice for a variety of research and science applications

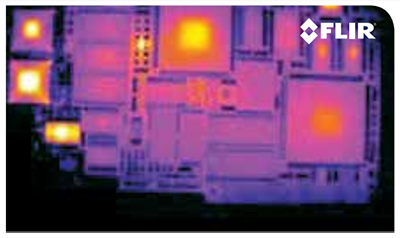

Verification of PCB

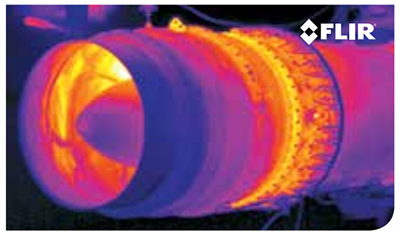

Jet engine

Excellent Image Quality and Thermal Sensitivity
FLIR A325sc is equipped with an uncooled Vanadium Oxide (VoX) microbolometer detector that produces thermal images of 320 x 240 Pixels. These pixels generate crisp and clear detailed images that are easy to interpret with high accuracy. The FLIR A325sc will make temperature differences as small as 50 mK clearly visible.

Fast Data Transfer

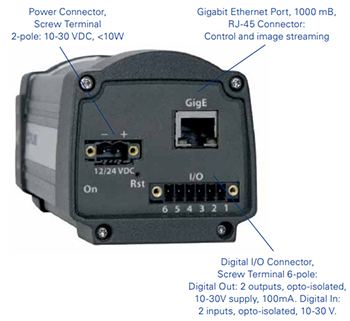

FLIR A325sc comes with a RJ-45 Gigabit Ethernet connection which supplies 14-bit 320 × 240 images at rates as high as 60 Hz.


GIGE Vision Standard Compatibility GigE Vision allows fast image transfer using low cost standard cables up to 100 meters. With GigE Vision, hardware and software from different vendors can integrate seamlessly over gigabit ethernet connections. GenICam Protocol Support GenICam creates a common application programming interface (API) for cameras regardless of the interface technology or features implemented. Because the API for GenICam cameras will always be the same, cameras like the A325sc can be easily integrated into third party software.

Software
FLIR A325sc camera works seamlessly with FLIR ResearchIR Max software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera. A Software Developers Kit (SDK) is optionally available.

Mathworks Matlab
Control and capture data directly into MathWorks® Matlab software for advanced image analysis and processing.
