Extech WQ510 Water Quality Meter/Stirrer (EC, TDS, pH, mV, Temp)

The WQ510 is a 6-in-1 meter capable of measuring pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids.

Features Overview

The unit features a 30-, 60-, and 120-minute timer or continuous stirring, 2 or 3 point pH calibration, 1-point conductivity calibration, and automatic temperature compensation.

Other Features

This unit features a large backlit dual display, and the ability to store/recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface.

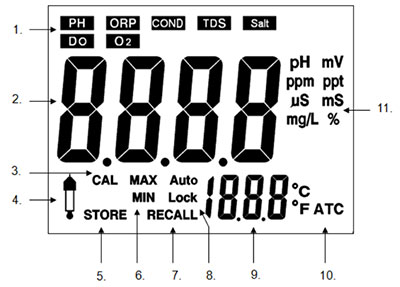

LCD Description

1. Measurement Type
2. Primary Reading Display Area
3. Calibration Mode
4. Calibration Error Indicator
5. Reading Stored Indicator
6. MAX/MIN Mode Icons
7. Recall Mode
8. Lock Mode Icon
9. Temperature Reading
10. Auto Temperature Condensation
11. Units of Measure Icons

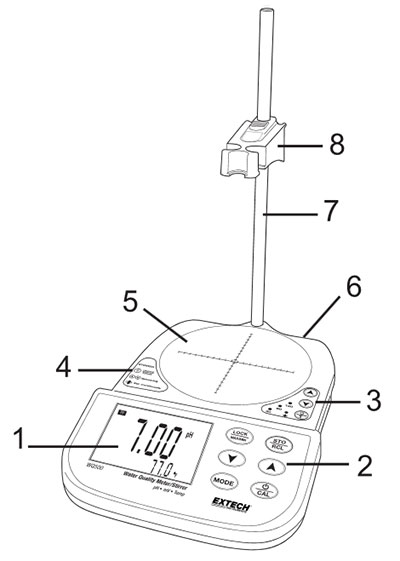

Meter Descriptions

1. LCD Display
2. Primary Keypad
3. Secondary Keypad
4. Secondary Keypad Legend
5. Beaker Test Plate
6. Rear Connection Access
7. Electrode Holder Post
8. Electrode Holder
