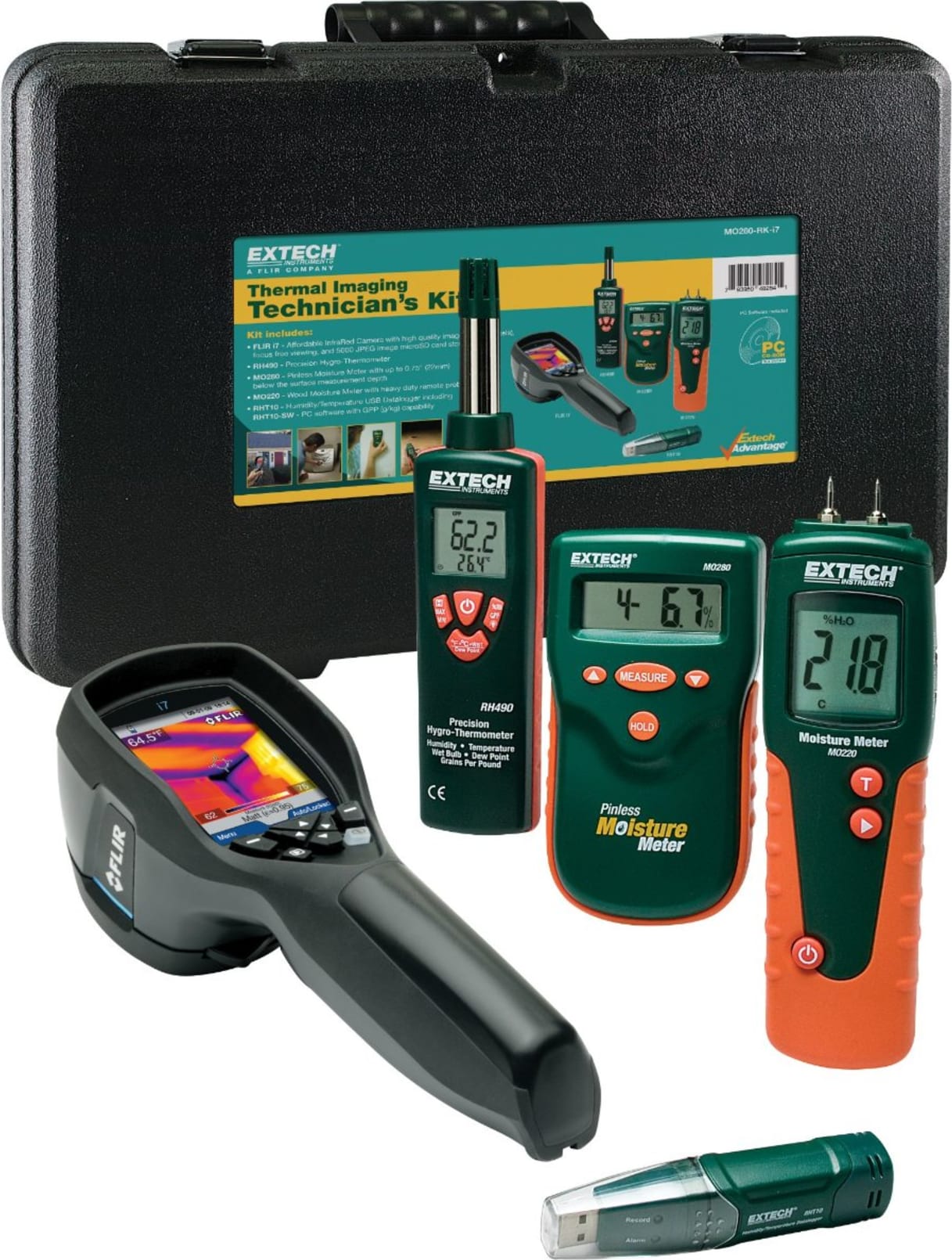

| FLIR i7 |
| Temperature range |
32°F to 482°F (0°C to 250°C) |
| Image Storage |
5000 Images (microSD card memory) |
| Emissivity |
Emissivity Table; 0.1 to 1.0 adjustable |
| Field of view/min focus distance |
17° X 17°/0.6m (2 ft.) |
| Focus |
Focus free |
| Thermal sensitivity (N.E.T.D) |
<0.1°C at 25°C |
| Detector Type |
Focal plane array (FPA) uncooled microbolometer; 120 X 120 pixels |
| Spectral range |
7.5 to 13µm |
| Display |
2.8" color LCD |
| Image Controls |
Palettes (Iron, Rainbow, and Black/White) |
| Set-up controls |
Date/time, °C/°F, 21 languages |
| Measurement modes |
Spot (with correction for emissivity and reflected temperature), Area (Max/Min), Isotherm (above/below selected temperature interval) |
| Battery Type |
Li-lon |
| Battery operating time |
>4 hours, Display shows battery status |
| Charging system |
In camera, AC adapter; 3 hours to 90% capacity |
| AC operation |
AC adaptor 90-260VAC, 50/60Hz |
| Adaptor Voltage |
5 VDC output to camera |
| Operating temperature range |
32°F to 122°F (0°C to 50°C) |
| Storage temperature range |
-40°F to 158°F (-40°C to 70°C) |
| Humidity |
Operating and storage 20% to 80%, non-condensing, IEC 359 |
| Shock |
25G, IEC 68-2-29 |
| Vibration |
2G, IEC 68-2-6 |
| Dimensions/Weight |
8.8x3.1x3.3" (223x79x83mm)/<12oz. (340g), including battery |
| MO280 |
| Sensor Type |
Non-Penetrating |
| Range |
0 to 99% (limited by wood type) |
| Max Resolution |
0.1% |
| Dimensions |
5.4x2.8x1.1" (136x70x28mm) |
| Weight |
5.5oz (156g) |
| MO220 |
| Material Types |
Wood (Multiple Types) |
| Sensor Type |
Replaceable Contact Pins |
| Moisture Content |
6 to 99.9% |
| Temperature probe |
-31 to 176°F (-35 to 80°C) |
| Dimensions |
7x1.9x1.2" (180x50x31mm) |
| Weight |
6.1oz (175g) |
| RH490 |
| Humidity |
0 to 100%RH |
| Temperature (internal) |
-4 to 199°F (-20 to 100°C) |
| Basic Accuracy |
±2%RH, ±1.8°F/1°C |
| Max. Resolution |
0.1%RH, 0.1°F/°C |
| Dewpoint |
-22 to 199°F (-30 to 100°C) |
| Wet Bulb |
32 to 176 °F (0 to 80°C) |
| Absolute Humidity |
0 to 1120GPP (0 to 160g/kg) |
| Dimensions |
7.8x1.7x1.3" (200x45x33mm) |
| Weight |
7oz (200g) |
| RHT10 |
| Temperature |
-40 to 158°F |
| Humidity |
0 to 100%, ±3%RH |
| Datalogging interval |
1 second to 24 hours |
| Memory |
Temperature- 16,000 points; Relative Humidity- 16,000 points |
| Dimensions |
5.1 x 1.1 x 0.98" (130 x 30 x 25mm) |
| Weight |
1oz (20g) |
