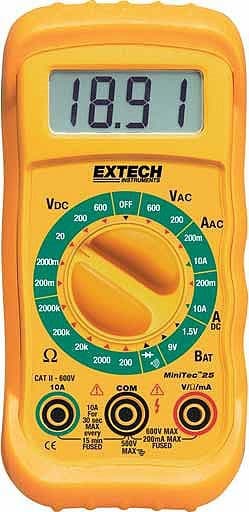

Extech MN25-NIST MiniTec Multimeter

Name: Extech MN25-NIST MiniTec Multimeter
Brand: Extech
SKU: ExtechMN25-NIST
Availability: InStock

0 reviews | Model: Extech MN25-NIST

Compare

MULTIMETER WITH NIST #MN25 - PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

View Product Details

List Price: $90.00

In Stock:

Recommended for you

Choose a Category

(13)

In Stock!

Add to Cart

(4)

In Stock!

Add to Cart

Input Limits
V DC, V AC	600V DC/AC, 200Vrms on 200mV range
mA DC	200mA 250V fast acting fuse
A DC, A AC	10A 250V fast acting fuse(30 seconds max every 15 minutes)
Resistance, Continuity	250Vrms for 15sec max
General
Display	3 1/2 digit, 2000 count LCD, 0.5” digits
Overrange indication	“1” is displayed
Diode Test	Test current of 1mA maximum, open circuit voltage 2.8V DC typical
Continuity Check	Audible signal will sound if the resistance is less than approximately 30 Ω
Battery Test current	9V (6mA); 1.5V (100mA)
Input Impedance	>1M Ω
ACV Bandwidth	45Hz to 450Hz
DCA voltage drop	200mV
Polarity	Automatic (no indication for positive polarity); Minus (-) sign for negative polarity.
Measurement Rate	2 times per second, nominal
Low Battery Indication	‘BAT’ is displayed if battery voltage drops below operating voltage
Battery	9 Volt Battery
Fuses mA, μ	A ranges; 0.2A/250V fast blow, A range; 10A/250V fast blow
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F (40°C)
Storage Humidity	< 80%
Operating Altitude	7000ft. (2000) meters maximum.
Weight	9.17 oz. (260g).
Size	4.78 x 2.38 x 1.57” (121.5 x 60.6 x 40mm)
Safety	For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III.
