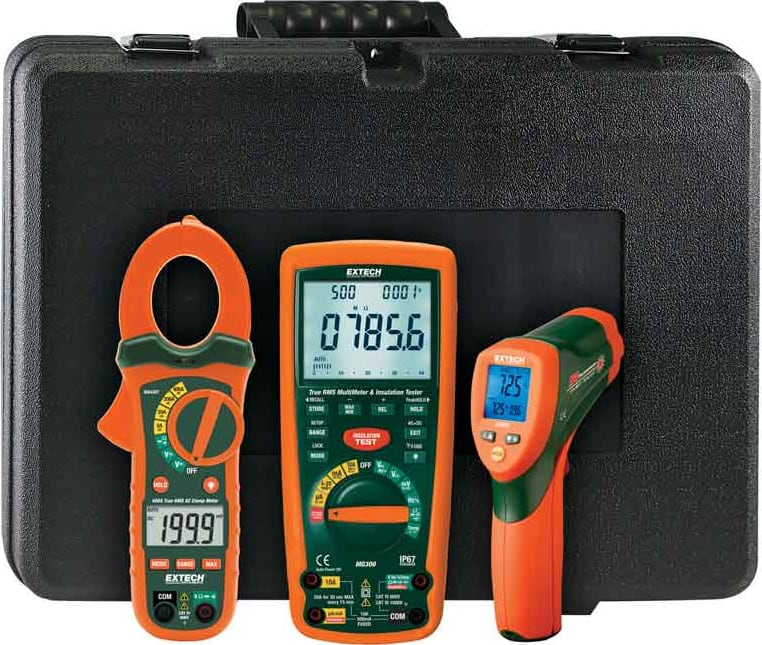

Electrical Troubleshooting Kit
Kit includes 3 compact tools that are indispensable at a customer site for electrical installation, troubleshooting, and repair: MG300 13 Function, Wireless, True RMS Multimeter/Insulation Tester with 1000V test voltage and 4000MΩ range; 42509 12:1 Infrared Thermometer with high/low alarm and fast 2-color display for processes that require temperature control and monitoring and MA430T 400A True RMS AC Clamp Meter with built-in non-contact voltage detector and ideal for noisy or non-sinusoidal AC measurement.
42509 Versatile Alerts Boost Productivity
The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with 4 different test voltages for measuring resistance up to 4 GΩ with 0.001MΩ resolution. The full-function, true RMS digital multimeter includes useful extras, like duty cycle measurements and milliamp readings for analog 4-20mA current loops in industrial analog process controls. The MG300 also has built-in wireless data recording for safer troubleshooting and maintenance on moving equipment, one-person operation of remote safety switches, and the ability to monitor real-time readings on a laptop or computer screen from safe distances – up to 30 feet away – to detect intermittent anomalies. This fast-responding (150 ms) IR thermometer uses an innovative alert system: an audible alarm is complemented by an illuminated display that changes from blue for normal conditions to bright red for alarm conditions. This color-coded alert function enables users to scan areas and focus on identifying anomalies without stopping to constantly evaluate specific temperature readings.
MG300 Insulation Tester/Multimeter with Wireless PC Interface
The MG300 is a True RMS multimeter with built-in insulation resistance tester with the added safety of wireless data streaming for remote monitoring and datalogging. By adding insulation testing capabilities to this CAT IV-rated digital multimeter, electrical troubleshooters will always be equipped for insulation testing, helping to make it a more routine part of predictive maintenance with faster troubleshooting and repairs without the need for additional tools.
42509 Infrared Thermometer with Color Alert
Extech's Color Alert infrared thermometer enables plant engineers and mechanics to scan electrical and mechanical components efficiently by simply looking for a color change. Designed as an all-around performer, Extech’s 42509 features two laser pointers to help users identify a one-inch measurement area from a safe, 12-inch distance. Other features include a 950-degree range that is useful in most processing applications; adjustable emissivity for improved accuracy; Max and Hold modes for simplified monitoring; and a hands-free trigger lock function for ergonomic ease or tripod mounting.
MA430T 400A AC Clamp Meter plus NCV Detector
The MA430T is a compact 400 amp AC clamp meter that enables users to take measurements in tight spaces while offering an ample 1.2-inch (30mm) jaw opening to accommodate conductors up to 350 MCM. The MA430T also features: True RMS for better accuracy when measuring distorted waveforms; a large four-digit readout and illuminated display that enhances viewing in poorly lit work areas; and a thumb-dial selector that facilitates convenient, one-handed operation.
