Extech EX570-NISTL 12 Function True RMS Industrial MultiMeter with IR Thermometer and Limited NIST Certificate

Name: Extech EX570-NISTL 12 Function True RMS Industrial MultiMeter with IR Thermometer and Limited NIST Certificate
Brand: Extech
SKU: ExtechEX570-NISTL
Price: 324.99 USD
Availability: InStock

0 reviews | UPC: 793950375716 | Model: Extech EX570-NISTL

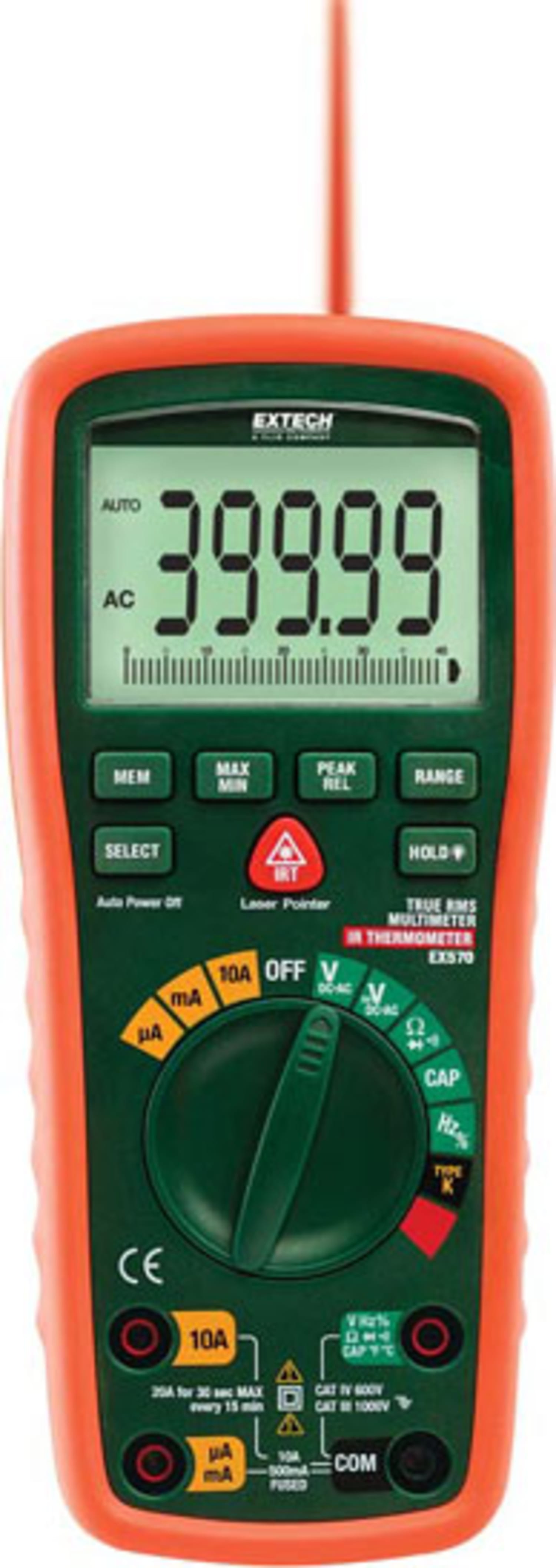

Extech EX570 12 Function True RMS Industrial MultiMeter with IR Thermometer

Compare

MULTIMETER/THERM WITH LIMITED NIST EX570

Built-in Non-contact InfraRed Thermometer with laser pointer
True RMS CAT III-1000V, CAT IV-600V rated with 0.06% basic DCV accuracy
Heavy duty Double molded, water resistant package
Large backlit 40,000 count LCD with 40-segment bargraph
Memory for storage and recall of three measurements
Type K thermocouple contact temperature measurements
Features include HOLD, RELATIVE and PEAK HOLD
1000V input protection on all functions
Min, Max and Average recording
Auto power off with disable feature
Capacitance, Frequency, Diode and Continuity functions

View Product Details

List Price: $324.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits
Temperature Probes

for the Extech EX570-NISTL

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech EX570-NISTL 12 Function True RMS Industrial MultiMeter with IR Thermometer features a built-in InfraRed thermometer that quickly identifies overheating motors or locates hot spots on electrical panels and HVAC vents without contact. This True RMS Industrial MultiMeter provides memory for storage and recall of three measurements.

Display Counts	40,000 count
Basic Accuracy	0.06%
DC/AC Voltage	0.01mV to 1000VDC 0.1mV to 1000VAC
DC/AC Current	0.01μA to 20A
Resistance	0.01Ωto 40MΩ
Capacitance	0.001nF to 10,000μF
Frequency	0.0001Hz to 40MHz
IR Temperature (30	1 ratio): -22 to 1022°F (-30 to 550°C)
Temperature (Type K)	-50 to 1382°F (-45 to 750°C)
Duty Cycle	0.01 to 99.99%
Diode/Continuity	Yes
Dimensions	7.25x3.25x2.25"(184x83x57mm)
Weight	12.3oz (349g)

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	1000 V
Resolution AC Volts	0.01 mV
Maximum Voltage DC	1000 V
Resolution DC Volts	0.01 mV
Maximum Current AC	20 A
Minimum Current AC	0.01 uA (0.00001 mA)
Resolution AC Current	0.01 uA (0.00001 mA)
Maximum Current DC	20 A
Minimum Current DC	0.01 uA (0.00001 mA)
Resolution DC Current	0.01 uA (0.00001 mA)
Basic Accuracy V DC	.06%
Counts	40000 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	IV
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Duty Cycle %	0.1% to 99.9%
Test Equipment General Attributes
Unique Features	Patented Built-in Non-contact IR Thermometer Design with Laser Pointer for Locating Hot Spots, Heavy Duty Double Molded, Water Resistant Package, Min-Max and Average Recording, Auto Power Off with Disable Feature
Warranty	3 YEARS
Warranty Details	3 Years Warranty
Additional Info/Comments	Memory for Storage and Recall of Three Measurements
IP Rating	IP64
Product Weight	12.3 OUNCES (0.769 LBS)
Product Height	2.25 IN
Product Length	7.25 IN
Product Width	3.25 IN
Shipping Weight	13 LBS Shipping Weight Value not available
Data Logging	No
HTS/Schedule B Number	9030310000
ECCN Number	EAR99 ECCN Number Value not available
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China Country of Origin Value not available
Shipping Height	2.8 IN Shipping Height Value not available
UPC	793950375709 UPC Value not available
Shipping Length	9.6 IN Shipping Length Value not available
Shipping Width	5.3 IN Shipping Width Value not available
