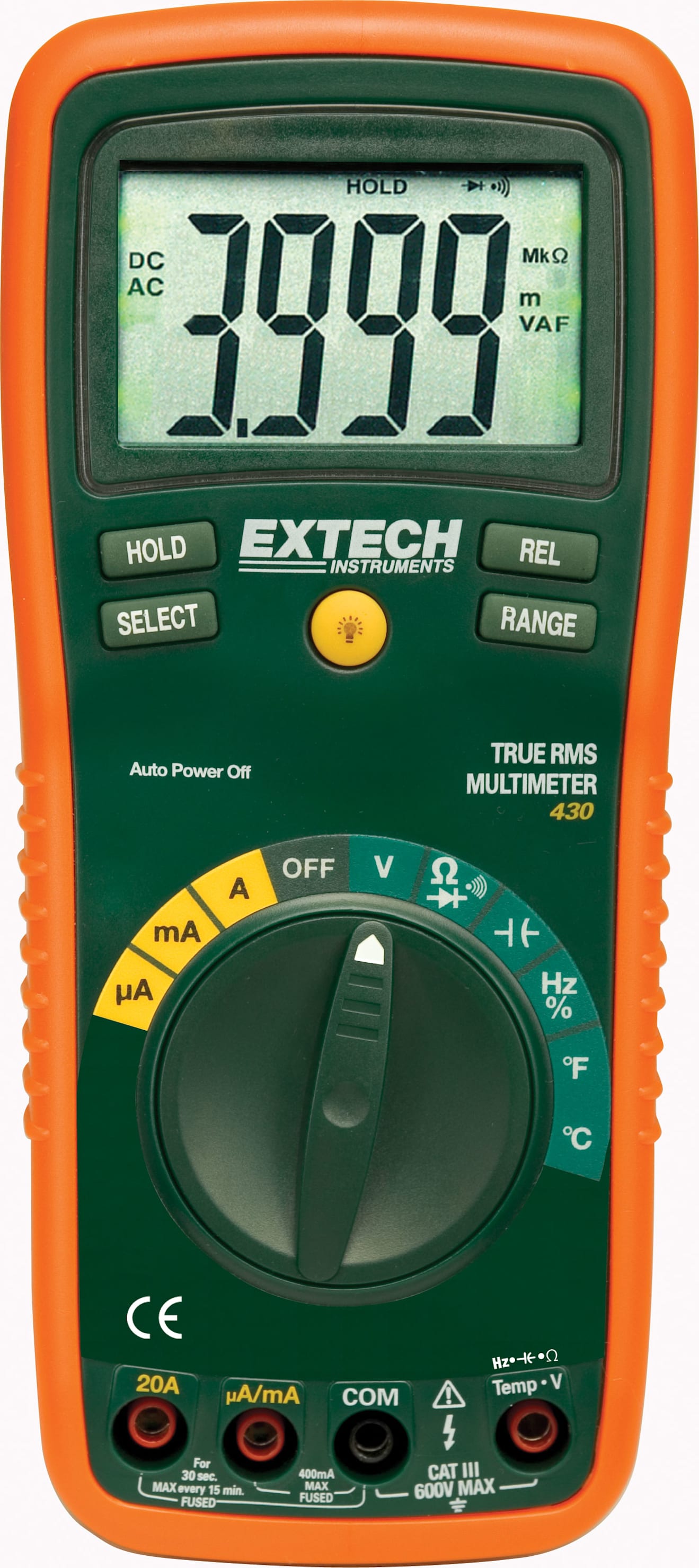

Extech EX430 True RMS Autoranging MultiMeter

Name: Extech EX430 True RMS Autoranging MultiMeter
Brand: Extech
SKU: ExtechEX430
Price: 84.60 USD
Availability: InStock
Rating: 4.00 (2 reviews)

4 (2 Reviews) | UPC: 793950384305 | Model: Extech EX430

Compare

MULTIMETER, TRUE RMS AUTORANGING DMM

True RMS DMM with 11 functions and 0.3% basic accuracy
AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Diode/Continuity, Duty Cycle
Input fuse protection and mis-connection warning
20A max Current
Type K temperature measurements
Data hold, Relative, Auto power off
Large-digit backlit LCD
Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery

Advantages of Non-Contact InfraRed Temperature with laser

Troubleshoot - Quickly locate hot spots
Distance - 8:1 distance to target ratio allows for measurements in areas that are normally difficult or unsafe to reach
Speed - Point and shoot with final result in seconds
Convenience - No cables or probes to connect, break or lose.

View Product Details

List Price: $94.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Extech EX430

Extech 409996 Carrying Case, Hip Holster (Pouch)

Catalog: 409996

(1)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Extech TL803 Test Leads, CATIII-1000V

Catalog: TL803

(0)

In Stock!

Add to Cart

Extech 480172 Line Separator, 3 Prong

Catalog: 480172

(5)

In Stock!

Add to Cart

Extech 871515 Probe, Temperature, K General Purpose

Catalog: 871515

(0)

In Stock!

Add to Cart

Extech 881602 Probe, Temperature, K Surface Probe

Catalog: 881602

(1)

In Stock!

Add to Cart

Extech 881603 Probe, Temperature, K Heavy Duty Penetration

Catalog: 881603

(0)

In Stock!

Add to Cart

Extech 881605 Probe, Temperature, K General Purpose, 6 inch

Catalog: 881605

(0)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech TP870 Probe, Temperature, K Bead Wire

Catalog: TP870

(1)

In Stock!

Add to Cart

Extech TP873 Probe, Temp, K Beadwire W/Banana Plug Adaptor

Catalog: TP873

(5)

In Stock!

Add to Cart

Extech TP875 Bead Wire High Temp Probe 1000 F W/Banana Plug Adaptor

Catalog: TP875

(1)

In Stock!

Add to Cart

Extech TP882 Probe, Penetration, K, High Temp/-50 To 1000F

Catalog: TP882

(1)

In Stock!

Add to Cart

Extech TL809 Test Lead Kit

Catalog: TL809

(10)

In Stock!

Add to Cart

11 Function True RMS Professional MultiMeter
True RMS, autoranging DMM with large digit LCD display and temperature function

This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, and Continuity plus Thermocouple Temperature. Proper use and care of this meter will provide many years of reliable service


	EX410	EX411	EX420	EX430	EX450	EX470
Manual Ranging	•	•
True RMS		•		•		•
Autoranging			•	•	•	•
Infrared Thermometer					•	•
CAP, Hz, %duty			•	•		•
Display	2000 Counts Backlit		4000 Counts Backlit		2000 Counts Backlit	4000 Counts Backlit
Basic Accuracy	±0.5% (VDC)	±0.3% (VDC)	±0.3% (VDC)		±0.5% (VDC)	±0.3% (VDC)
DC/AC Voltage	0.1mV to 600V (DC) / 0.1mA to 20A(AC)		0.1mV to 600V		0.1mV to 600V	0.1mV to 600V
DC/AC Current	0.1° to 600V (DC) / 0.1mA to 20A(AC)		0.1° to 20A		0.1° to 20A	0.1° to 20A
Resistance	.10 Ohms to 20 MOhms		.1 Ohms to 40 Ohms		.1 Ohms to 20 MOhms	.1 Ohms to 40 MOhms
Capacitance	---		0.01nF to 100°F		---	0.01nF to 100°F
Frequency	---		0.001Hz to 10MHz		---	0.001Hz to 10MHz
Temperature (Type K)	-4 to 1382°F (-20 to 750°C)		-4 to 1382°F (-20 to 750°C)		---	-4 to 1382°F (-20 to 750°C)
Temperature (Type IR)	---		---		-4 to 518°F (-20 to 270°C)	-4 to 518°F (-20 to 270°C)
Diode/ Continuity	Yes		Yes		Yes	Yes

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	750 V
Resolution AC Volts	0.1 mV
Maximum Voltage DC	1000 V
Resolution DC Volts	0.1 mV
Maximum Current AC	20 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	20 A
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 uA (0.00010 mA)
Basic Accuracy V DC	0.3%
Counts	4000 .
Backlight	Yes
Manual/Autoranging	Auto-ranging
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Duty Cycle %	0.1% to 99.9%
Test Equipment General Attributes
Unique Features	Input Fuse Protection and Mis-connection Warnings, Low Current Capability, Large Backlit LCD Display
Warranty	3 YEARS
Warranty Details	3 Years Warranty
Safety Approval	CE, UL
Product Weight	0.75 LBS
Product Height	2 IN
Product Length	7.4 IN
Product Width	3.2 IN
Shipping Weight	1.5 LBS Shipping Weight Value not available
Data Logging	No
HTS/Schedule B Number	9030310000
ECCN Number	EAR99 ECCN Number Value not available
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China Country of Origin Value not available
Shipping Height	2.2 IN Shipping Height Value not available
UPC	793950384305 UPC Value not available
Shipping Length	11.8 IN Shipping Length Value not available
Shipping Width	7.9 IN Shipping Width Value not available

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

DVM

4.0

Good. Half the price of a Equivalent Fluke. Works well. Has full electronic functionality, uamps, cap , temp ect. Bad. Auto ranging is very very slow. Continuity is also very very slow and does not latch. Not built as well as a Fluke. Has plastic feel to it.

Verified Purchase boful on Jun 24, 2017

Recommend to a Friend

Works fine

4.0

Does all I need.

Anonymous on Apr 17, 2015
