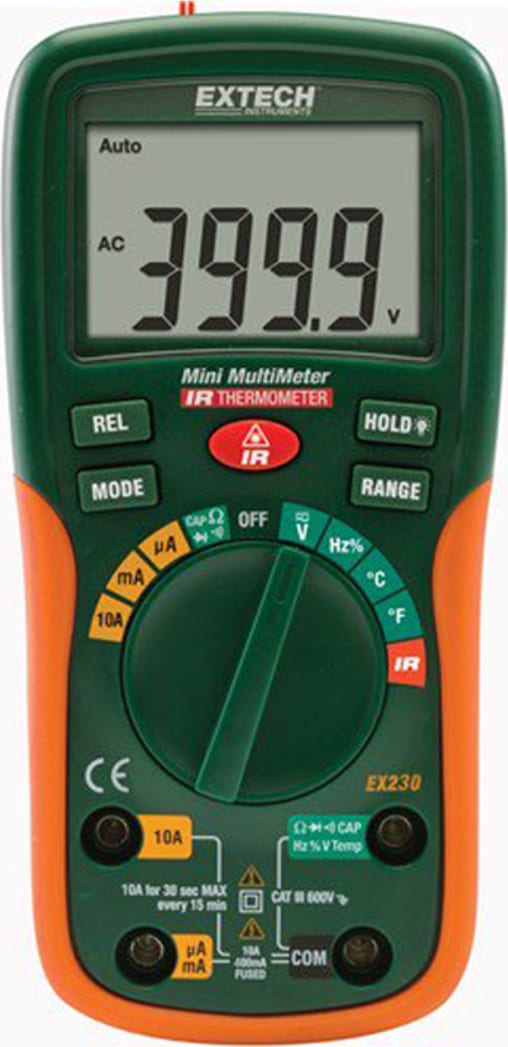

Compact Multimeter
The Extech EX230 12 Function Mini Digital MultiMeter with IR Thermometer is a no-brainer for anyone who routinely uses a multimeter and/or an infrared thermometer for DIY, home improvements, handyman jobs, electrical repairs and installations, automotive repairs, electronics work, HVAC, and more.
Features and Benefits
Homeowners and tradesmen with tight budgets can now afford to upgrade to a quality auto-ranging multimeter with built-in IR. The EX230 is ideal for quickly identifying overheating motors or locating hot spots on electrical panels, or HVAC vents without contact. The built-in IR thermometer with laser pointer features a 6:1 distance to target ratio and a range from -5 to 446 degrees F (-20 to 230 degrees C). The EX230 also features a type K temperature bead probe for additional contact measurement flexibility when needed in a freezer, enclosure, etc
Applications
The EX230 is Cat III-600-volt safety rated, making it suitable for electrical troubleshooting on electronics, appliances, inside building circuits including service panels and switchboards, distribution panels, three phase feeders and branch circuits, and single phase branch circuits connected to the service panel. The Extech EX230 12 Function Mini Digital MultiMeter with IR Thermometer is a no-brainer for anyone who routinely uses a multimeter and/or an infrared thermometer for DIY, home improvements, handyman jobs, electrical repairs and installations, automotive repairs, electronics work, HVAC, and more. Now, you can practically get both meters for the cost of one. By lowering the entry point cost of infrared-equipped test equipment, Extech redefined expectations about must-have capabilities in a multimeter. The most advanced of Extech's EX200 series, the EX230 is a rugged and compact multimeter complemented by an innovative integrated infrared thermometer that packs extra capabilities so you can rely on fewer meters. Homeowners and tradesmen with tight budgets can now afford to upgrade to a quality auto-ranging multimeter with built-in IR. The EX230 is ideal for quickly identifying overheating motors or locating hot spots on electrical panels, or HVAC vents without contact. The built-in IR thermometer with laser pointer features a 6:1 distance to target ratio and a range from -5 to 446 degrees F (-20 to 230 degrees C). The EX230 also features a type K temperature bead probe for additional contact measurement flexibility when needed in a freezer, enclosure, etc.
Additional Features
The four-digit 4,000 count backlit dual display is large and easy to read. The DMM measures current, voltage, resistance, and surface temperature. Customers who need to measure minute current readings can take advantage of low current resolution down to 0.1 μA. The Extech EX230 permits the user to select auto- or manual-ranging and provides continuity and diode testing. Data functions include a Relative Mode, Maximum Reading and a Display Hold function to freeze a reading on the display. In addition to the IR and Type K Temperature functions, the meter also measures Resistance (to 40M Ω), Capacitance, Frequency, and Duty Cycle.
