Extech EX210T TrueRMS Digital Multimeter with IR

Name: Extech EX210T TrueRMS Digital Multimeter with IR
Brand: Extech
SKU: ExtechEX210T
Price: 80.15 USD
Availability: InStock

0 reviews | UPC: 793950392119 | Model: Extech EX210T

Compare

TRUE RMS AUTORANGING MULTIMETER + IR

True RMS for better accuracy when measuring distorted waveforms
Patented built-in IR Thermometer with laser pointer for locating hot spots with 4:1 Distance to Target Ratio (EX210T model only)
2000 count large backlit dual LCD with easy-to read digits
Low current capability with resolution to 0.1μA
Max Hold
Input fuse protection
Auto power off and Data Hold
Complete with test leads and 9V battery

View Product Details

List Price: $89.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Extech EX210T

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

TrueRMS Digital Multimeter with IR
Autoranging Multimeter with 2000 Count Large LCD Display and Infrared Thermometer

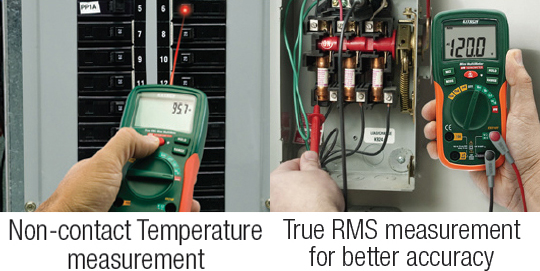

The Extech EX210T is an autoranging True RMS meter providing a more accurate reading when measuring distorted waveforms. The Extech EX 210T with built-in IR Thermometer allows for quick noncontact Temperature measurements.


Both models are autoranging True RMS meters providing a more accurate reading when measuring distorted waveforms. EX210T with built-in IR Thermometer allows for quick noncontact Temperature measurements.

	Range	Max Resolution
AC Voltage	600 V	0.1 mV
DC Voltage	600 V	0.1 mV
Basic Accuracy (VDC)	±0.5%
AC Current	10 A	0.1 μA
DC Current	10 A	0.1 μA
Resistance	20 MΩ	0.1 Ω
IR Temperature	-5 to 446°F / -20 to 230°C	0.1°
Continuity / Diode	Yes
Dimensions	5.8 x 2.9 x 1.6" (147 x 76 x 4 2 mm)
General Specifications
Enclosure	Double molded
Diode Test	Test current °F 0.9mA maximum, open circuit voltage 2.8V DC typical
Continuity	Threshold 20 to 50, test current <1.5mA
Input Impedance	10MΩ VDC/VAC
AC Response	True rms (EX210T only)
ACV Bandwidth	40Hz to 1000Hz
IR Spectral response	6 to 16µm
IR Emissivity	0.95 fixed
IR distance ratio	4:1
Laser pointer	Class 2 laser < 1mW power; Wavelength is 630 to 670nm
Display	2,000 count backlit liquid crystal display
Overrange indication	“OL” is displayed
Auto Power °Ff	15 minutes (approximately)
Polarity	Automatic (no indication for positive); Minus (-) sign for negative
Measurement Rate	2 times per second, nominal
Battery	One 9 volt (NEDA 1604) battery
Fuses	mA, µA ranges; 200mA 250V ceramic fast blow ‘A’ range; 10A 600V ceramic fast blow
Operating Temperature	-10ºC to 40ºC (14ºF to 122ºF)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Operating Humidity	Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF)
Storage Humidity	<80%
Operating Altitude	2000 meters (7000 ft) maximum
Weight	260 g (9.17oz)
Size	147x76x42 mm (5.8x2.9x1.6”)
Safety	This meter is intended for origin °F installation use and protected, against the users, by double insulation per IEC/EN 61010-1:2001 and IEC/EN 61010-031:2002 to Category III 600V; Pollution Degree 2.
Approvals	CE

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	600 V
Resolution AC Volts	0.1 mV
Maximum Voltage DC	600 V
Resolution DC Volts	0.1 V (100 mV)
Maximum Current AC	10 A
Minimum Current AC	0.1 uA (0.00010 mA)
Resolution AC Current	0.1 uA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	0.1 uA (0.00010 mA)
Resolution DC Current	0.1 uA (0.00010 mA)
Basic Accuracy V DC	0.5%
Counts	2000 .
Backlight	Yes
Manual/Autoranging	Auto-ranging
Decibels	No
Resistance	Yes
Frequency	No
Capacitance	No
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	True RMS for better accuracy when measuring distorted waveforms.Built-in IR Thermometer with laser pointer for locating hot spots with 4:1 Distance to Target Ratio
Warranty	1 YEARS
Warranty Details	1Year Warranty
Safety Approval	CE, ETL
Product Weight	9.17 OUNCES (0.573 LBS)
Product Height	1.6 IN
Product Length	5.8 IN
Product Width	2.9 IN
Shipping Weight	1.2 LBS
Data Logging	No
HTS/Schedule B Number	9031499000
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	3 IN
Shipping Length	10 IN
Shipping Width	6.5 IN
