600W Switching Power Supply (220V)

High Efficiency Switching Power Supply with Low Ripple and Noise

The Extech DCP60-220 high efficiency switching power supply with low ripple and noise features 60V/10A output. Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is on the back panel). Dual action rotary encoder control with push knob for fine and coarse tuning.

Remote control for Output Voltage/Current and On/Off. Three user-defined Voltage and Current presets. USB port for programming and running ramp/soak cycles with 20 programmable sets of Voltage/Current and varying test durations (up to 999 cycles)."

High efficiency switching power supply with low ripple and noise is ideal for demanding laboratory applications. Remotely control power ON/OFF and Voltage/Current output.

Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities.

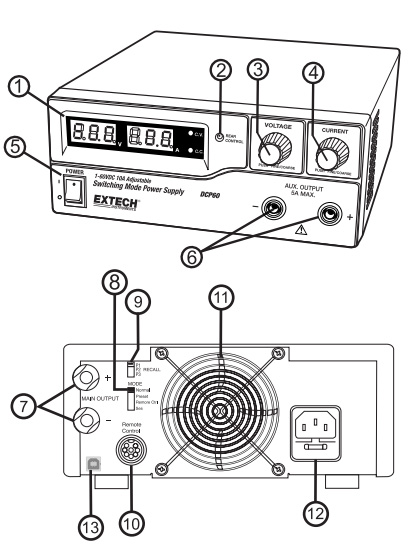

FRONT PANEL

1. LED panel meter display with CC/CV Indictor
2. Rear Control Indicator (lights when using Preset/ Remote Control/ Set mode)
3. Output Voltage Control Knob (controls both the main and auxiliary output voltage)
4. Output Current Control Knob (controls both the main and auxiliary output current limit)
5. Power ON/OFF Switch
6. Aux. output terminal (max 5A); The total rated current (Aux.+Main) is 10A

REAR PANEL

7. Main Output Terminal (Rated for 10A); The total rated current (Aux.+Main) is 10A
8. Mode Selection Switch (Normal, Preset, Remote Control, Set Modes)
9. Recall – Preset Voltage Selection Switch
10. Remote Control Terminal
11. Cooling Fan Air Intake Grille
12. AC Input Plug
13. USB port
