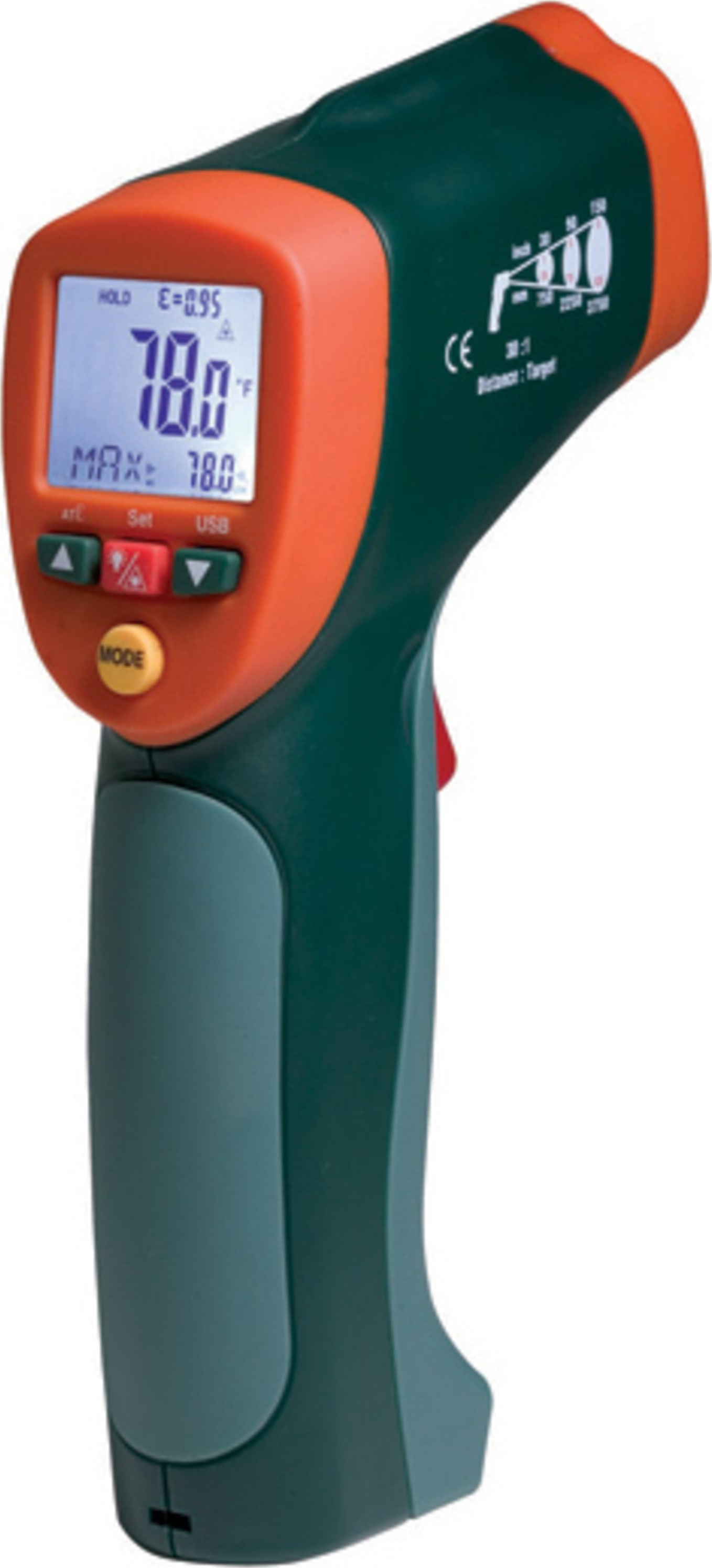

Extech 42560 InfraRed Thermometer Recorder

Name: Extech 42560 InfraRed Thermometer Recorder
Brand: Extech
SKU: Extech42560
Price: 349.99 USD
Availability: InStock

0 reviews | UPC: 7939500000001 | Model: Extech 42560

Compare

THERMOMETER, INFRARED WITH RECORDER OUTPUT

Wide InfraRed temperature range: -58° to 1922°F (-50 to 1050 °C)
High 30:1 distance to target ratio, laser pointer for easy targeting
Type K input for surface temperature measurements: -58 to 2498°F (-50 to 1370°C)
Manual or Automatic emissivity using type K probe for accurate measurements on different surfaces
Adjustable high/low alarm alerts user visually and audibly when temperature exceeds programmed limits
Built-in memory with recall for 20 readings
MAX/MIN/AVG/DIF functions
Complete with Transmitter Base, Remote Receiver with USB cable, Type K probe, tripod, analog output cable, PC software, 9V battery, 100-240VAC adaptor and carrying case

View Product Details

List Price: $349.99

In Stock:

View Payment Options

Recommended for you

InfraRed Thermometer with Wireless PC Interface
30:1 Wide range IR Thermometer with Type K Input

The handheld Extech 42560 infrared thermometer offers a wide temperature range (-58 to 1022°F / -50 to 1050°C) for non-contact temperature readings. With a wireless PC interface, the Extech 42560 infrared thermometer is able to transmit temperature data to a PC.

The Extech 42560 infrared thermometer features an adjustable high/low alarm which alerts users visually and audibly when temperature exceeds programmed limits. Continuous readings can be transmitted to a PC via remote receiver and USB connection by placing the Extech 42560 infrared thermometer on the base station. Other functions of the Extech 42560 infrared thermometer include data hold, auto power off with disable function, and low battery indication.

Extech 42560 infrared thermometers come complete with transmitter base with tripod mount, remote receiver with USB cable, type K probe, analog output cable, PC software, 9V battery, 100-240 VAC adapter, and pouch case.

General Specifications
IR Range	-58°F to 1922°F or -50°C to 1050°C
Type K Range	-58°F to 2498°F or -50°C to 1370°C
Basic Accuracy	IR: ±2% or ±4°F/2°C Type K: ±1.5% ±5°F/3°C
Max. Resolution	0.1°F/°C
Emissivity	0.1 to 1.00 Adjustable
Field of View (Distance to target)	30:1
Power	9V battery; AC adaptor for base
Dimensions	3.9 x 2.2 x 9" (100 x 56 x 230mm)
Weight	10.2 oz (290g)

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	1922 F
IR Temperature Min	-58 F
Field View Ratio (Spot Ratio)	30:1
Accuracy	± 9°F (± 5°C) from -58 to -4°F (-50 to -20°C) ± (1.5% of reading + 3.6°F [2°C]) from -4 to 392°F (-20 to 200°C) ± (2.0% of rdg + 3.6°F [2°C]) from 392 to 1000°F (200 to 538°C) ± (3.5% of rdg + 9°F [5°C]) from 1000 to 1922°F (538 to 1050°C) Note: Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	Yes
Data Hold	Yes
Max./Min.	Yes
Memory Recall	Yes
Thermocouple Input	Yes
Food Safe	No
Test Equipment General Attributes
Unique Features	-Wide InfraRed temperature range: -58° to 1922°F (-50 to 1050 °C) -High 30:1 distance to target ratio, laser pointer for easy targeting -Type K input for surface temperature measurements: -58 to 2498°F (-50 to 1370°C) -Adjustable emissivity -Adjustable high/low alarm alerts user visually and audibly when temperature exceeds programmed limits -Built-in memory with recall for 20 readings -MAX/MIN/AVG/DIF functions -Wireless datalogging to PC -Banana plug Analog Output
Interfaces I/O	Analog Output, USB
Product Weight	290 GRAMS (0.639 LBS)
Product Height	230 MM (9.06 IN)
Product Length	100 MM (3.94 IN)
Product Width	56 MM (2.20 IN)
Data Logging	Yes
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
