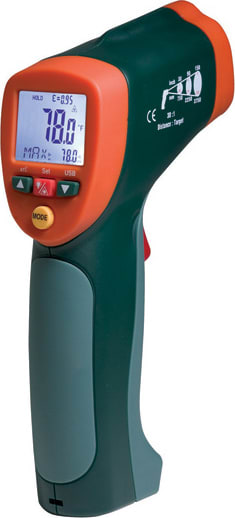

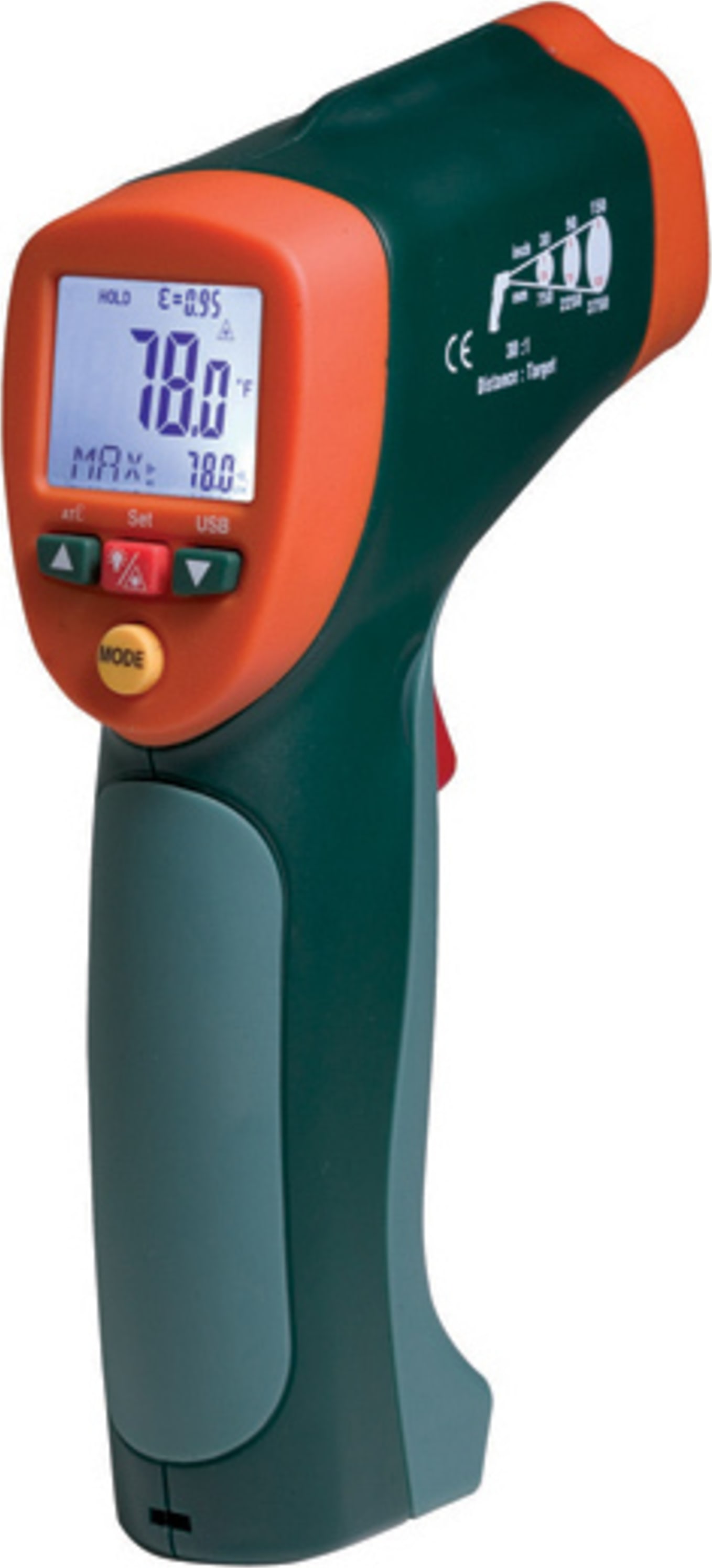

Extech 42560-E InfraRed Thermometer Recorder IR Export Only

Name: Extech 42560-E InfraRed Thermometer Recorder IR Export Only
Brand: Extech
SKU: Extech42560-E
Price: 329.99 USD
Availability: InStock

0 reviews | UPC: 793950435151 | Model: Extech 42560-E

Compare

THERMOMETER, IR EXPORT ONLY

NOTE: Laser is not FCC approved for use in the USA. For export use ONLY.
Wide range (-58°F to 1922°F / -50°C to 1050°C)
High 30:1 distance to target ratio
Manual or Automatic emissivity using type K probe for accurate measurements on different surfaces
Adjustable high/low alarm alerts user visually and audibly when temperature exceeds programmed limits
Lock function for continuous measurements
Built-in laser pointer improves aim
Memory for 20 labelled readings
Place the meter on the Base station to transmit continuous readings to the remote receiver connected to a PC via USB cable
Type K thermocouple input
MAX/MIN/AVG/DIF features display highest, lowest, average, and MAX minus MIN values
Data Hold, Auto power off with disable function, low battery indication
Complete with transmitter base with tripod mount, remote receiver with USB cable, type K probe, analog output cable, PC software, 9V battery, 100-240 VAC adaptor, and pouch case.

View Product Details

List Price: $329.99

In Stock:

View Payment Options

Recommended for you

The 42560 is a wide range, non-contact IR Thermometer which features a wireless PC interface for transmitting temperature data to a PC. With a high 30:1 distance to target ratio, the meter has a lock function for continuous measurement. Using the wireless base station and/or optional tripod mount the meter can transmit continuous readings to the remote receiver connected to a PC vis USB cable. The 42515 also has a type K thermocouple input, and adjustable high/low alarm with visual and audible alerts.

General Specifications
IR Range	-58°F to 1922°F or -50°C to 1050°C
Type K Range	-58°F to 2498°F or -50°C to 1370°C
Basic Accuracy	IR: ±2% or ±4°F/2°C Type K: ±1.5% ±5°F/3°C
Max. Resolution	0.1°F/°C
Emissivity	0.1 to 1.00 Adjustable
Field of View (Distance to target)	30:1
Power	9V battery; AC adaptor for base
Dimensions	3.9 x 2.2 x 9" (100 x 56 x 230mm)
Weight	10.2 oz (290g)

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	1922 F
IR Temperature Min	-58 F
Field View Ratio (Spot Ratio)	30:1
Accuracy	± 9°F (± 5°C) from -58 to -4°F (-50 to -20°C) ± (1.5% of reading + 3.6°F [2°C]) from -4 to 392°F (-20 to 200°C) ± (2.0% of rdg + 3.6°F [2°C]) from 392 to 1000°F (200 to 538°C) ± (3.5% of rdg + 9°F [5°C]) from 1000 to 1922°F (538 to 1050°C) Note: Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	Yes
Data Hold	Yes
Max./Min.	Yes
Memory Recall	Yes
Thermocouple Input	Yes
Food Safe	No
Test Equipment General Attributes
Unique Features	-Export Only Model -Wide InfraRed temperature range: -58° to 1922°F (-50 to 1050 °C) -High 30:1 distance to target ratio, laser pointer for easy targeting -Type K input for surface temperature measurements: -58 to 2498°F (-50 to 1370°C) -Adjustable emissivity -Adjustable high/low alarm alerts user visually and audibly when temperature exceeds programmed limits -Built-in memory with recall for 20 readings -MAX/MIN/AVG/DIF functions -Wireless datalogging to PC -Banana plug Analog Output
Interfaces I/O	Analog Output, USB
Product Weight	290 GRAMS (0.639 LBS)
Product Height	230 MM (9.06 IN)
Product Length	100 MM (3.94 IN)
Product Width	56 MM (2.20 IN)
Data Logging	Yes
HTS/Schedule B Number	9025.19.8080
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
