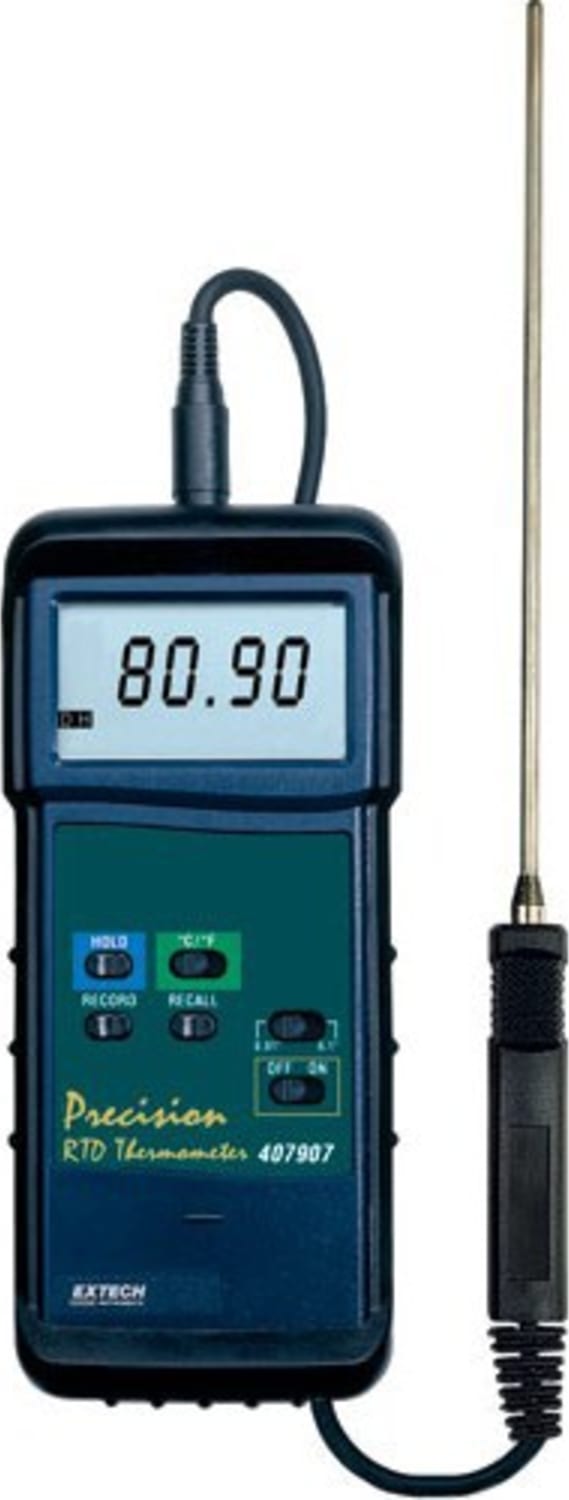

Extech 407907-NIST Heavy Duty RTD Probe Thermometer PC interface

Name: Extech 407907-NIST Heavy Duty RTD Probe Thermometer PC interface
Brand: Extech
SKU: Extech407907-NIST
Price: 302.80 USD
Availability: InStock

0 reviews | Model: Extech 407907-NIST

Compare

RTD THERMOMETER WITH NIST - PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Wide temperature range measures to 1472°F (800°C)
Large 4-1/2 digit (20,000 count) LCD display
Built-in linearity correction with fast response
Sampling time of 0.4 second
Built-in RS-232 PC serial interface
Accepts 4 wire Pt-100 RTD probes with DIN connector
Probes sold separately

View Product Details

List Price: $339.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Temperature Probes

for the Extech 407907-NIST

Extech 850186 Probe, Temperature, RTD Surface Type

Catalog: 850186

(0)

In Stock!

Add to Cart

General Specifications
Display	4-1/2 digit (20,000 count) LCD display with over-range and low battery indication
Measurement	Temperature (selectable °C & °F units)
Data Hold	Freezes displayed reading
RTD Sensor (optional)	4-wire platinum 100 Ω RTD 0.00385 alpha coefficient (meets DIN IEC 751)
RTD Sensor jack	Proprietary 4 pin circular connector (uses optional Extech RTD sensor)
Sampling Time	Approximately 0.4 seconds
Memory record/recall	Meter stores Maximum and Minimum readings
Data Output	RS-232 PC Interface
Operating conditions Temperature	32°F to 122°F (0°C to 50°C)
RH	< 80%
Power Supply	9V battery
Power consumption	15 mA DC (approx.)
Weight	0.62 lbs. (285g)
Dimensions	7.1 x 2.8 x 1.3” (180 x 72 x 32 mm).
Temperature Ranges
F	-199.99° to 392.00°F, 392.0° to 1562.0°F
C	-199.99° to 199.00°C, 200.0° to 850.0°C

Tech Specs

Thermometers/Contact Thermometers Template
Type (Contact Thermometers)	RTD
Resolution (thermometers)	0.1° or 0.01°
Accuracy	±(0.1% reading + 0.4°) under 200°F and ±(0.1% reading + 1.0°) over 200°F
Measurements (contact thermometers)	Data Hold
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Data Logging	No
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
