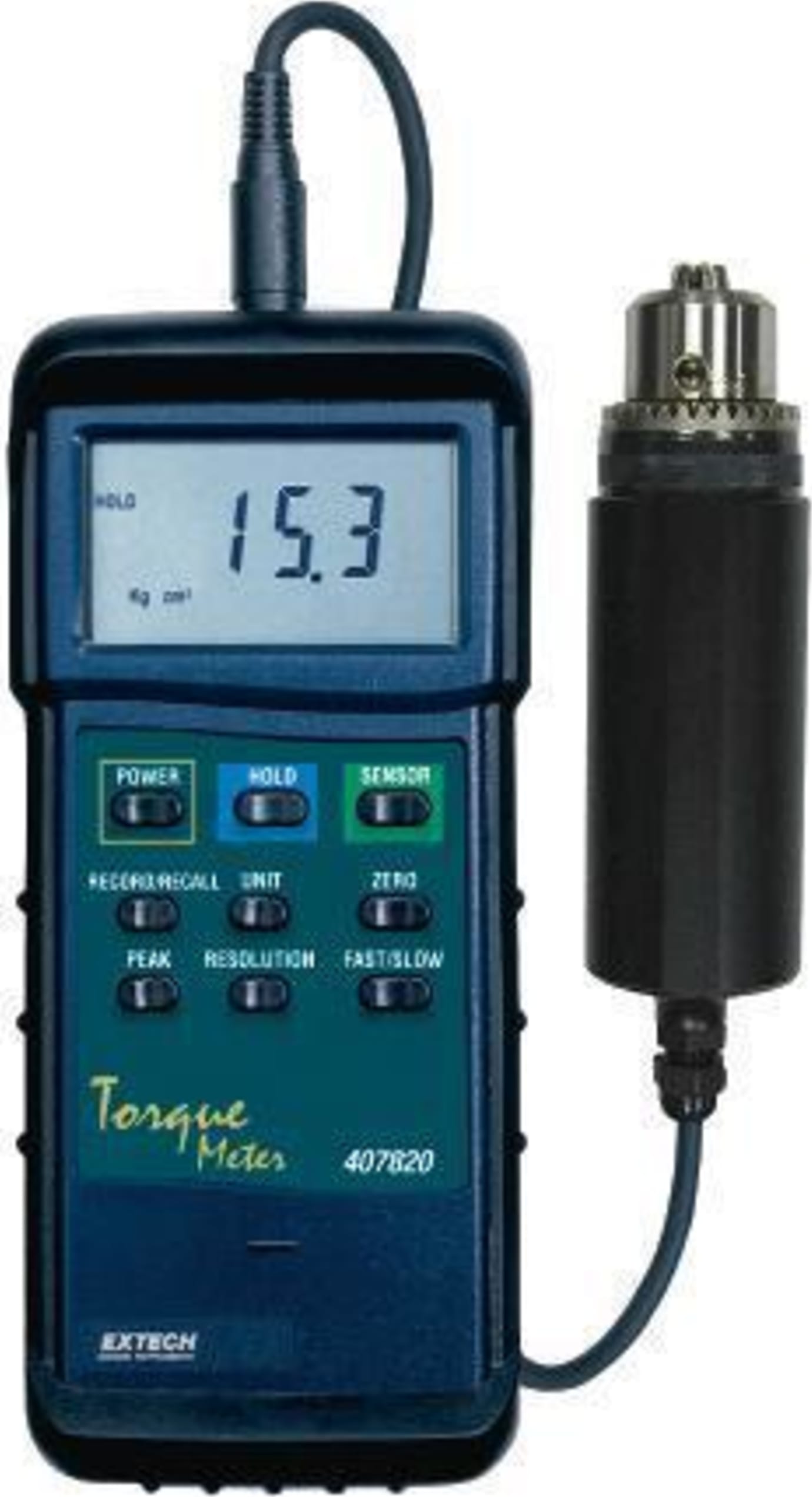

Extech 407820 Heavy Duty Digital Torque Meter

Name: Extech 407820 Heavy Duty Digital Torque Meter
Brand: Extech
SKU: Extech407820
Availability: InStock

0 reviews | Model: Extech 407820

Compare

TORQUE METER W/SENSOR HEAVY DUTY SERIES

Torque ranges of 12.99 lb-in., 15.00 kg-cm and 147.1 Newton-cm using remote sensor and chuck assembly
Min/Max and Peak mode
Push button High or Low resolution selection
Selectable Fast/Slow sampling time
Data Hold and Auto Power off
Built-in RS-232 PC serial interface

View Product Details

List Price: $799.00

In Stock:

Recommended for you

General Specifications
Display	3-1/2 digit (2000 count) multi-function LCD
Units of Measure	Kilogram-centimeter (kg-cm), Pound-inch (lb-in), Newton-centimeter (N-cm)
Resolution	Programmable High or Low resolution (see range specs.)
Meter Power	9V battery
Power consumption	12mA approx.
Auto Power Off	Meter turns off after 10 minutes (can be defeated)
Max/Min Record/Recall	Records highest (MAX) and lowest (MIN) readings
Data Hold	Displayed reading can be held on the LCD by pushbutton
Response Time	Fast and Slow (Programmable)
PC Interface	Built-in RS-232 jack; Optional data acquisition software
Operating conditions Temperature	32 to 122 ° F (0 to 50 ° C), Humidity < 80% RH
Dimensions Meter	7.1 x 2.8 x 1.3" (180 x 72 x 32mm)
Chuck	1.9" (48mm) head diameter [6.3" (160mm) handle] 0.5” (12.7mm) opening size
Weight Meter	0.5 lbs. (225g); Chuck: 1.46 lbs (665g)
Accessories	Torque chuck, chuck key, 9V battery, and rubber holster with table-top stand
