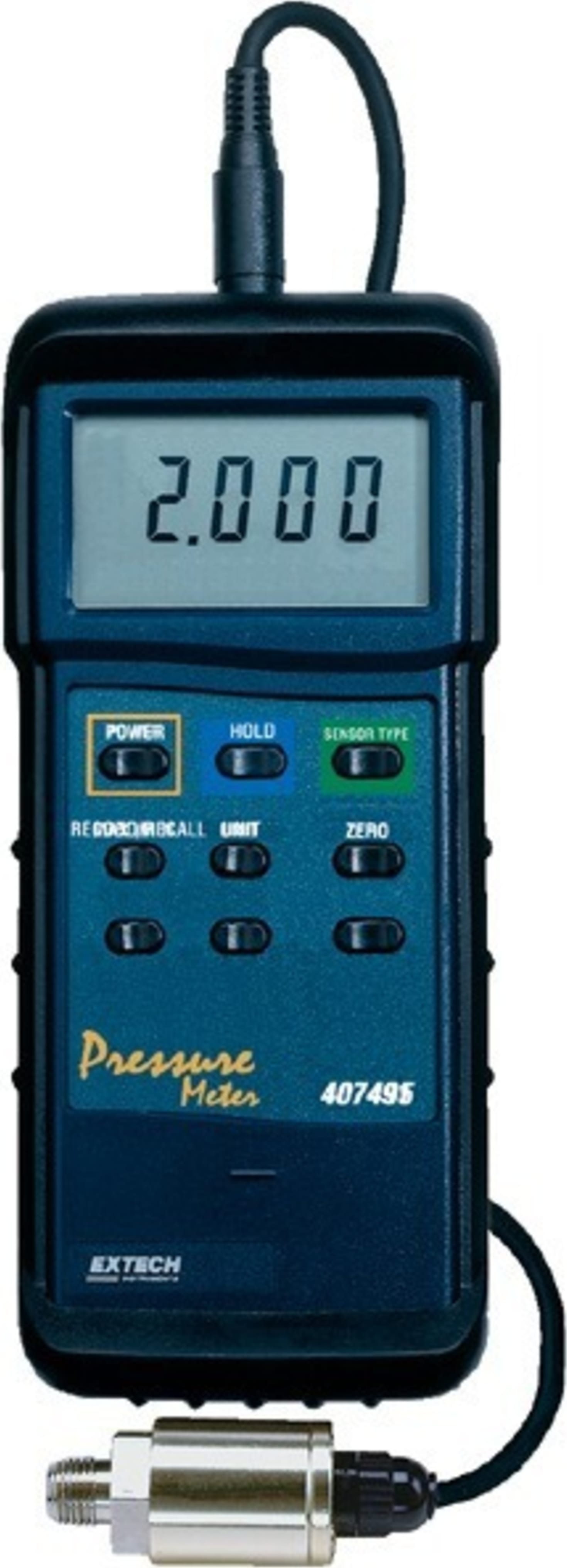

Extech 407495 Heavy Duty Pressure Meter

Name: Extech 407495 Heavy Duty Pressure Meter
Brand: Extech
SKU: Extech407495-NIST
Price: 338.42 USD
Availability: InStock

0 reviews | Model: Extech 407495-NIST

Compare

PRESSURE METER W/NIST, 407495 - PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Accepts interchangeable transducers with ranges of 30, 75, 150, 300, 700, and 1500psi
0.25%FS basic accuracy
Displays 8 types of pressure units
Push button transducer selection
Built-in RS-232 PC interface
Data Hold, Auto power off, Min/Max and Zero function for offset correction

View Product Details

List Price: $379.99

In Stock:

View Payment Options

Recommended for you

This meter measures and displays pressure in eight (8) measurement units. Up to six (6) interchangeable transducers (sold separately) in varying ranges can be used with this meter. Special features include RS-232 PC Interface, Min/Max Memory, push-button Zero, Data Hold, and Auto Power-Off. Careful use of this meter will provide years of reliable service.

General Specifications
Display	Multi-function LCD
Transducers	30, 75, 150, 300, 700, and 1500 max. psi (sold separately)
Transducer signal Full scale	100mVDC
Display units	Bar, psi, Kg/cm², mm/Hg, inches/Hg, meters/H²O, inches/H²O, Atmosphere
Zero adjust	Front panel push-button
Data Hold	Displayed reading can be held by front panel push-button
Min/Max Memory	Lowest/Highest readings can be stored for later recall
PC Interface kit	Built-in RS-232 port for use with optional Windows data acquisition software
Auto Power-Off	To conserve battery life, the meter turns OFF automatically after approx. 10 minutes (programmable over-ride).
Sampling time	0.8 seconds approx.
Power supply	9V Battery
Low battery indication	Rectangular battery-life box appears on the left side of LCD.
Power consumption	Approx. 7mA
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity	Less than 80% RH
Dimensions	7.1 x 2.8 x 1.3" (180 x 72 x 32mm)
Weight	Approx. 0.76 lbs. (345g)
Accessories	Protective rubber holster and 9V battery
