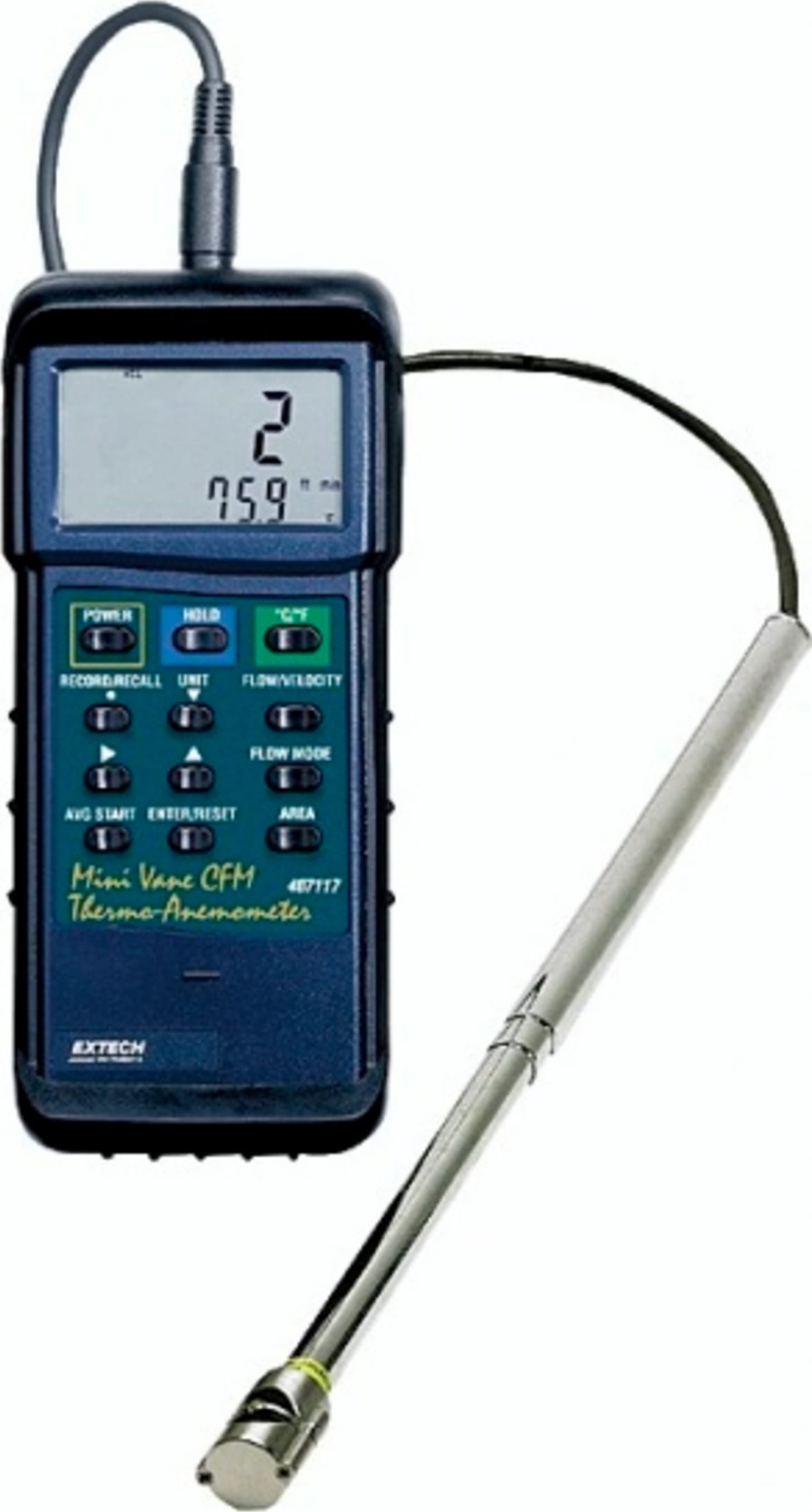

MINI VANE-THERMOANEMOMETE HEAVY DUTY SERIES

Display Air Flow (CFM/CMM) or Air Velocity plus Temperature
20 point averaging for airflow
Telescoping 0.5" (13mm)D metal mini-vane sensor extends up to 1.9ft (59cm) long
MIN/MAX readings
Data hold and Auto power off
Built-in RS-232 PC Interface

View Product Details

List Price: $459.99

In Stock:

View Payment Options

Recommended for you

General Specifications
Circuit	Custom LSI microprocessor circuit
Display	Dual function 0.5" (13 mm) 4-digit LCD
Measurement units	Air Velocity - m/s, km/h, ft/min, knots, mph; Air Flow - CMM (m³/min) and CFM (ft³/min); Temp - °C and 7deg;F
Data hold	Freezes displayed reading
Sampling rate	1 second approx.
Sensors	Air velocity/flow sensor: Low friction, ball-bearing vane
Temp. sensor	Precision thermistor
MAX/MIN	Memory Record and view Maximum and Minimum readings
Automatic Power off	Auto shut off after 15 minutes to preserve battery life
Data Output	RS 232 PC serial interface with 16-bit data stream output
Operating Temperature Meter	32 to 122°F (0 to 50°C);
Sensor	32 to 176°F (0 to 80°C)
Operating Humidity	Max. 80% RH
Power Supply	9V battery (Heavy duty alkaline); optional AC adapter
Power Current	Approx. DC 8.3 mA
Weight	1.6 lbs. (700 g) including battery & probe
Dimensions Main instrumen t	7 x 2.9 x1.3" (178 x 74 x 33mm)
Telescoping Sensor	0.5" diameter head; 23.6" (600mm) max antenna length with 9" (1m) cable
m/s (meters per sec)
Range	0.80 – 12.00 m/s
Resolution	0.01 m/s
Accuracy %rdg	± (2% + 0.2 m/s)
km/h (kilometers per hour)
Range	2.8 – 43.2 km/h
Resolution	0.1 km/h
Accuracy %rdg	± (2% + 0.2 km/h)
ft/min (feet per minute)
Range	160 – 2358 ft/min
Resolution	1 ft/min
Accuracy %rdg	± (2% + 20 ft/m)
mph (miles per hour)
Range	1.8 – 26.8 mph
Resolution	0.1 mph
Accuracy %rdg	± (2% + 0.2 mph)
knots (nautical miles per hour )
Range	1.6 to 23.3 knots
Resolution	0.1 knots
Accuracy %rdg	± (2% + 0.2 knots)
Air Flow Measurements
CMM (cubic meters per minute)
Range	0-999,900 m³/min
Resolution	0.001 to 100
Area	0 to 9,999m²
CFM (cubic feet per minute)
Range	0-999,900 ft³/min
Resolution	0.001 to 100
Area	0 to 9,999ft²
Air Temperature
Range	32 - 176°F (0 - 80°C)
Resolution	0.1°F/C
Accuracy	1.5°F (0.8°C)
