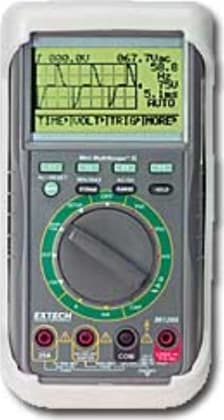

Extech 381265 100kHz Mini Multiscope MultiMeter

Name: Extech 381265 100kHz Mini Multiscope MultiMeter
Brand: Extech
SKU: Extech381265
Availability: InStock

0 reviews | Model: Extech 381265

Compare

MULTISCOPE 2, MINI GRAPHICAL/DIGITAL MM

Oscilloscope graphical functions: Single channel, volts/division (75mV to 500V), Amps/Division (75mA to 15A), 500ns Glitch Capture
High sensitivity allows user to capture low level signals
Oscilloscope Bandwidth: DC to 100kHz with a sample rate of 1 Million Samples/sec
Graphical display of mV, Volts, mA, Amps
Comparator function with user defined MIN/MAX levels allows the user to perform HIGH/LOW/PASS tests in Voltage, Current, Resistance and Capacitance modes
DMM functions: AC/DC Voltage/Current, Resistance, Frequency, Capacitance, dB, Duty Cycle, Pulse Width, Period, Logic Signal, Diode & Continuity tests

View Product Details

List Price: $249.00

In Stock:

Recommended for you

DIGITAL STORAGE OSCILLOSCOPE
Bandwidth	DC to 100kHz, 1 channel
Sample rate	1Meg samples per second
Divisions	+2 vertical, 9 horizontal Record length - 25 divisions
Time base	5 μsec. to 1.3sec. per division, 75mV to 500V (17 steps), mA - 75 to 300mA (4 steps), A - 7.5 to 15A (2 steps)
Glitch capture	500nsec. (minimum)
Level adjustable	±2 divisions (in 0.1 steps), (Positive or negative edge moving trigger)
COMMON SPECIFICATIONS
Display	128x64 pixel graphic LCD 2.8x1.5” (71.7x39mm)
Measurement rate Digital	4 times/sec. Bargraph: 7 times/sec.
Auto Power Off	30 minutes
Overrange Indicates	“OVER”
Power	6 size AA cells, 6 size AA NiCad batteries, 3 dual cell NiCad Battery Packs or AC adaptor
Operating time	Alkaline (6hrs approx.), NiCad (8hrs approx.)
NiCad Charging time	(3hrs approx.)
Temperature Operating	32°F to 104°F (0°C to 40°C)
Storage (NiCad batteries removed)	-4°F to 140°F (-20°C to 60°C)
Charging	32°F to 113°F (0°C to 45°C)
Min/Max/Avg.	Displays minimum, average, & maximum readings over time
Hold	Captures displayed reading
Storage	15 pages (text or graphics)
Dimensions	3.6x7.6x2.2inches (92x192x55mm)
Weight	1.0lbs. (450gm)
