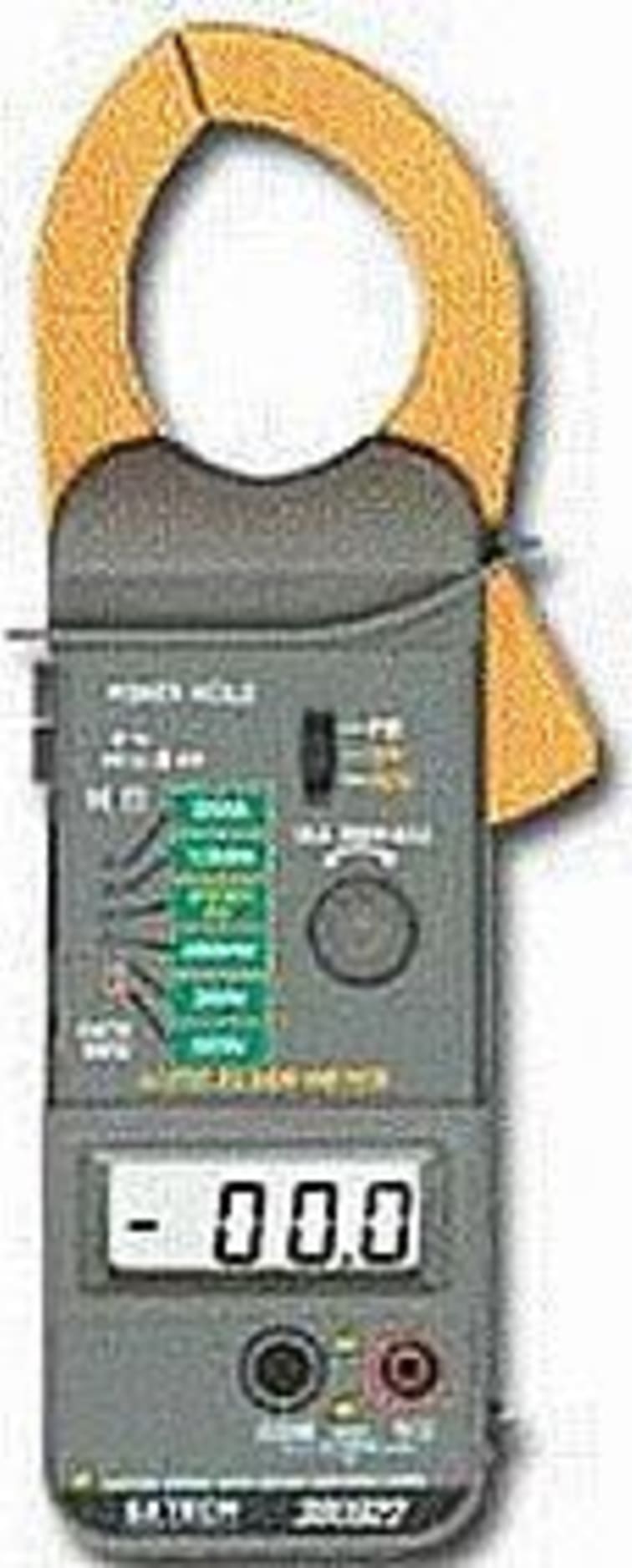

Extech 380922 1000A AC/DC Clamp Meter

Name: Extech 380922 1000A AC/DC Clamp Meter
Brand: Extech
SKU: Extech380922-NIST
Availability: InStock

0 reviews | Model: Extech 380922-NIST

Compare

CLAMP METER WITH NIST, 380922 - PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

View Product Details

List Price: $189.00

In Stock:

Recommended for you

General Specifications
Display	13 mm(0.5") LCD display, 3-1/2 digits, + 1999 count
Measurement	ACA, DCA, ACV, DCV, ?, Diode, Temp
Data hold	Available for all functions
Peak Hold	Acquisition Time - 150ms; Display Decay Rate <2 digits/sec.
Diode Check	Short, Open, Good/Defective test
Polarity	Automatic switching. "-" indicates reverse polarity.
Current Sensor	Hall effect sensor
Overload indication	"1" or "-1"
Sampling Time	Approximately 0.4 second
Max. Conductor size	1.3" (32mm) 1000A models, 2" (50mm) 2000A models
Operating Temp.	32 °F to 122 °F ( 0 °C to 50 °C)
Operating Humidity	Max. 80% RH.
Power Supply	006P DC 9V battery (Heavy duty type).
Power Consumption	Approximately 11mA DC (approx. 100 hrs.) IEC 1010 CAT III 600V
Size / Weight	9.1 x 2.8 x 1.4” (230 x 70 x 36mm) / 0.85 lbs (380g) inc. battery
Accessories supplied	Instruction manual, Test leads (red & black), Carrying case, Bead wire temperature probe with temperature models
Accessories optional	NIST certificate, AC line separator, Temperature probes all functions
