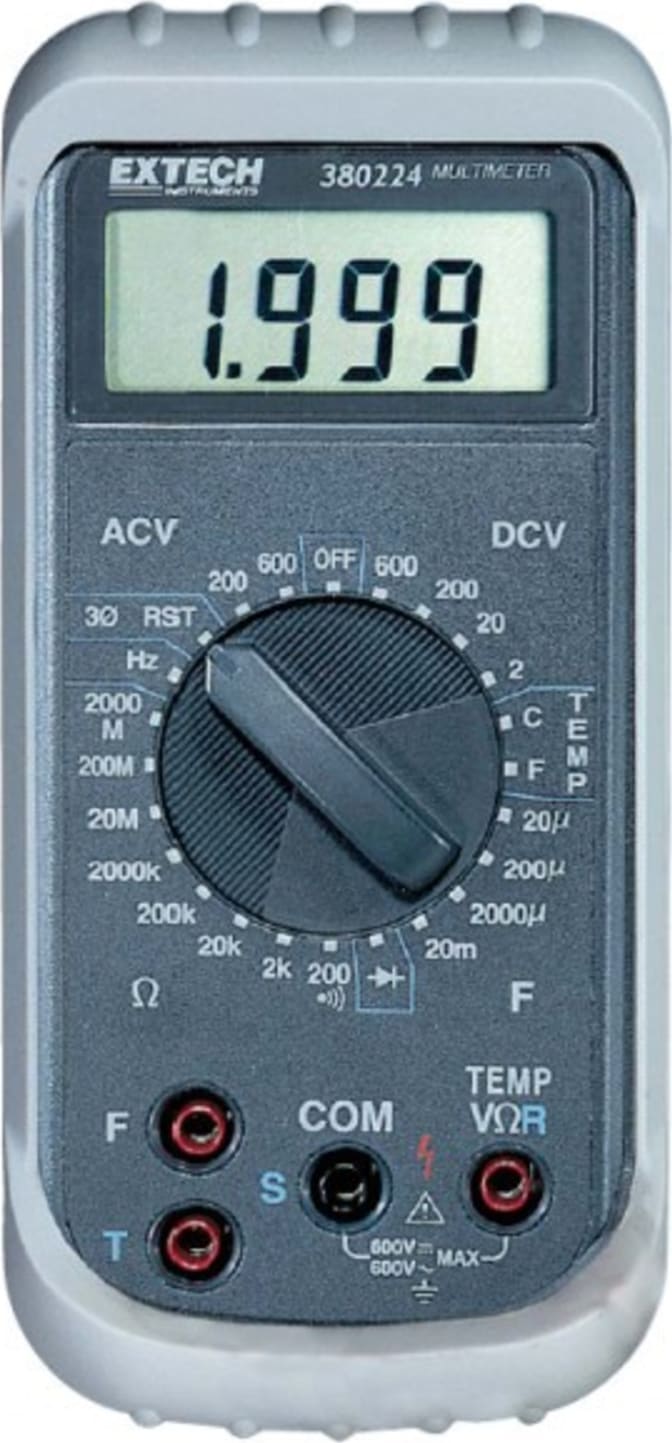

Extech 380224 Heavy Duty Phase Indicator/MultiMeter

Name: Extech 380224 Heavy Duty Phase Indicator/MultiMeter
Brand: Extech
SKU: Extech380224-NIST
Price: 169.21 USD
Availability: InStock

0 reviews | Model: Extech 380224-NIST

Compare

MULTIMETER; PHASE;W/NIST 380224 - PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Functions include Phase, AC/DC Voltage, Capacitance, Resistance, Frequency, Temperature, Continuity and Diode
Phase indicator identifies clockwise or counter-clockwise wiring configuration via direction of arrow on display
Type K temperature measurements to 752°F (400°C)

View Product Details

List Price: $189.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Extech 380224-NIST

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

General specifications
Display	±1999 (3-1/2 digit) count LCD with Auto Polarity
Sample Rate	Approx. 2 samples per second
Over-range Indication	"OL or -OL" is displayed
Low Battery Indication	Battery symbol appears on LCD
Power Supply	9V battery (NEDA 1604 or equivalent)
Battery Life	Approx. 200 hours with carbon-zinc battery
Operating Temperature/Humidity	32°F to 122°F (0°C to 50°C) / < 70% RH
Storage Temperature/Humidity	-4°F to 132°F (-20°C to 60°C) / < 80% RH
Dimension / Weight	5.8 x 2.8 x 1.5” (147x70x39mm) 11.8 oz. (340g)
Supplied accessories	Test leads, temp. probe, fuse, battery, wrist-strap, and manual

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	No
Measures DC A	No
True RMS	No
Maximum Voltage AC	600 V
Resolution AC Volts	1 mV
Maximum Voltage DC	600 V
Resolution DC Volts	1 mV
Basic Accuracy V DC	+-(1.2% +1d)
# Digit Display	3.5
Counts	2000 .
Backlight	No
Manual/Autoranging	Manual
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	No
Temperature	Yes
Diode Testing	Yes
CAT Rating	III
Intrinsically Safe	Yes
Peak Hold	No
Overload Protector	No
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	No
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	Phase indicator identifies clockwise or counter-clockwise wiring configuration via direction of arrow on display and built in stand for benchtop use
Warranty	1 YEARS
Interfaces I/O	Analog Input
Storage	Hard Drive
Product Weight	12 OUNCES (0.75 LBS)
Product Height	1.5 IN
Product Length	5.7 IN
Product Width	2.7 IN
Shipping Weight	12.2 OUNCES (0.762 LBS)
Data Logging	No
Calibration Included	NIST Calibration
Power Supply Voltage	Battery Powered
Country of Origin	United States
