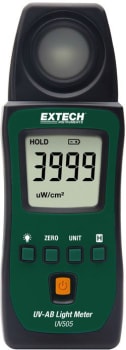

Extech UV505 - Pocket UV-AB Light Meter

Name: Extech UV505 - Pocket UV-AB Light Meter
Brand: Extech
SKU: ExtechUV505
Price: 186.89 USD
Availability: InStock

0 reviews | UPC: 793950215050 | Model: Extech UV505

Compare

Light Meter UV-AB

Sensor wavelength range 290 to 390nm
UV sensor with cosine correction measures irradiance from UV-AB light sources up to 40.00 mW/cm²
Backlit LCD for easy viewing
Zero function
Data Hold freezes current reading on display

View Product Details

Recommended for you

Extech UV505 - Pocket UV-AB Light Meter

Measure light levels in Foot-Candle (Fc) or Lux units using a precision photo diode with cosine and color correction filter
Zero/Calibration function
Data Hold and Min/Max functions
Auto power off with disable
Tripod mount (optional TR100 Tripod sold separately)
Complete with light sensor cover, two AAA batteries, and pouch

The Extech UV505 pocket-sized UV light meter measures UV-AB light from natural and artificial light sources used in outdoor activities and indoor medical testing, laboratory/research, industrial, education, electronics, and forensics/criminology applications. It offers a backlit display, cosine corrected sensor, two selectable ranges, zero function, display hold, and auto power off. Includes a pouch to protect and store your meter.

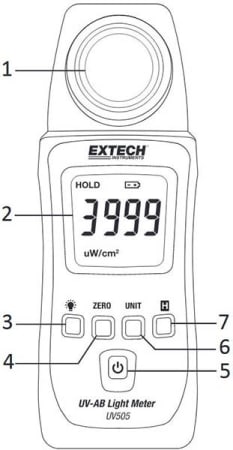

Meter Description

Light Sensor (protective sensor cover not shown)
LCD
Backlight button
Zero button
Power ON-OFF button
Unit of measure toggle button
Display Data Hold button

Note: Battery compartment and tripod mount are located on the back of the meter.

Panel Description

Measurement Reading
Data Hold
Zero mode
Low battery indicator
Unit of measure (μW/cm2 or mW/cm2)

UV505 Specifications
	Range	Max Resolution	Basic Accuracy
Measuring Ranges	1 to 3999 μW/cm2	1 μW/cm²	±5%FS
Measuring Ranges	0.01 to 40 mW/cm2	0.01 mW/cm²	±5%FS
Dimensions	5.2 x 1.9 x 1" (133 x 48 x 23mm)
Weight	3.2oz (90g)

Test Equipment General Attributes
Product Height	2.00 IN
Product Length	7.00 IN
Product Width	3.00 IN
HTS/Schedule B Number	9027808090
ECCN Number	EAR99
Country of Origin	Taiwan
Shipping Height	2.00 IN
Shipping Length	7.00 IN
Shipping Width	3.00 IN
