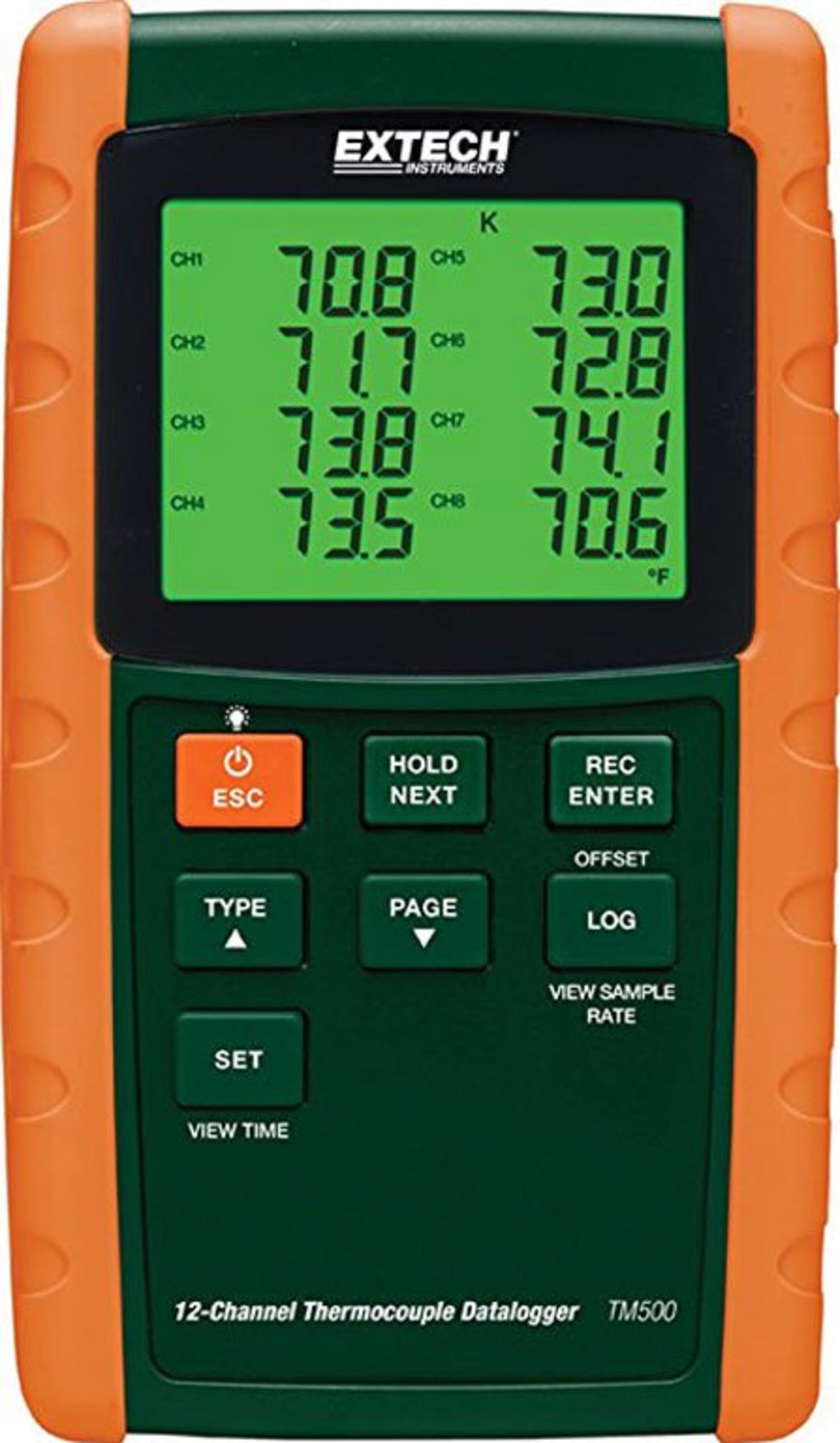

Extech TM500 - 12-Channel Datalogging Thermometer

Name: Extech TM500 - 12-Channel Datalogging Thermometer
Brand: Extech
SKU: ExtechTM500
Price: 1040.41 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | UPC: 793950420058 | Model: Extech TM500

Compare

12 Channel Thermocouple Datalogger

Simultaneously displays CH1 to CH8 or CH9 to CH12
Offset adjustment used for zero function or to make relative measurements
Stores 99 readings manually
Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
User programmable sampling rate from 1 to 3600 seconds
Min/Max, Data Hold, Auto Power Off
Limited Two Years Warranty

View Product Details

List Price: $1,169.00

Your Price: $1,040.41

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Extech TM500 12 Channel Thermocouple Datalogger	Extech TM26 NSF Waterproof Food Thermometer W/Stainless Probe	Extech TM100-NIST Thermometer W/NIST, TM100- PLEASE NOTE: If not in stock: NIST calibratio ...	Extech TM20 Temperature Indicator	Extech TM55 Fold-Up Pocket Food Thermometer	Extech TM100 Thermometer, Single Input	Extech TM500-NIST 12 Channel Thermocouple Datalogger W/NIST- PLEASE NOTE: If not in stock: ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech TM500 Accessories

Choose a Category

for the Extech TM500

Extech 881616 Magnetized Type K Surface Probe (-40 to 392°F)

Catalog: 881616

(0)

In Stock!

Add to Cart

Extech UA100-240 Universal AC Adaptor 120-240V 9V@1A

Catalog: UA100-240

(0)

In Stock!

Add to Cart

Extech 801515 Probe, Temperature, J General Purpose

Catalog: 801515

(0)

In Stock!

Add to Cart

Extech 871515 Probe, Temperature, K General Purpose

Catalog: 871515

(0)

In Stock!

Add to Cart

Extech 881602 Probe, Temperature, K Surface Probe

Catalog: 881602

(1)

In Stock!

Add to Cart

Extech 881603 Probe, Temperature, K Heavy Duty Penetration

Catalog: 881603

(0)

In Stock!

Add to Cart

Extech 881605 Probe, Temperature, K General Purpose, 6 inch

Catalog: 881605

(0)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech TP400 450 Degrees F Pipe Clamp Temp Probe

Catalog: TP400

(0)

In Stock!

Add to Cart

Extech TP870 Probe, Temperature, K Bead Wire

Catalog: TP870

(1)

In Stock!

Add to Cart

Extech TP873 Probe, Temp, K Beadwire W/Banana Plug Adaptor

Catalog: TP873

(5)

In Stock!

Add to Cart

Extech TP873-5M Bead Wire Temperature Probe, 5 Meters

Catalog: TP873-5M

(0)

In Stock!

Add to Cart

Extech TP875 Bead Wire High Temp Probe 1000 F W/Banana Plug Adaptor

Catalog: TP875

(1)

In Stock!

Add to Cart

Extech TP882 Probe, Penetration, K, High Temp/-50 To 1000F

Catalog: TP882

(1)

In Stock!

Add to Cart

Extech TM500

AC+DC measurement components displayed combined or separate
Dual sensitivity frequency functions
Data logging stores up to 2500 readings with date and time stamp
Auto power off with disable feature
1000V input protection on all functions

12-Channel Datalogging Thermometer

Datalogging Thermometer with 6 Thermocouple Types (J, K, E, T, R, S)

The TM500 is a 12-Channel Datalogging Thermometer. This Datalogging Thermometer features 6 Thermocouple Types (J, K, E, T, R, S). Displays CH1 to CH8 or CH9 to CH12 on screen, data can be recorded from all 12 channels simultaneously onto an SD card in Excel format for further analysis.

Applications (Dependent on Thermocouple type and range):

Heat distribution in thermal chambers
Quality Control temperature monitoring
HVAC and Refrigeration
Cooling systems
Refrigeration
Core temperature in ovens
Automotive design

General Specifications
Type J	-148 to 2102°F (-100 to 1150°C)
Type K	-148 to 2372°F (-100 to 1300°C)
Type T	-148 to 752°F (-100 to 400°C)
Type E	-148 to 1652°F (-100 to 900°C)
Type R	32 to 3092°F (0 to 1700°C)
Type S	32 to 2732°F (0 to 1500°C)
Resolution	0.1°/1°
Basic Accuracy	±0.4% rdg (+1.8°F/+1°C) Types J, K, E, T; ±0.5% rdg (+5°F/+3°C) Types R, S
Datalogging	20M data records using a 2GB SD card
Dimensions	8.9 x 4.9 x 2.5" (225 x 125 x 64mm)
Weight	2.1lbs (944g)

Thermometers/Contact Thermometers Template
Types RTD/Thermocouples Accepted	E, J, K, R, S, T
Resolution (thermometers)	0.1°/1°
Accuracy	±0.4% rdg (+1.8°F/+1°C) Types J, K, E, T; ±0.5% rdg (+5°F/+3°C) Types R, S
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	CE
Storage	SD Card
Product Weight	2.1 LBS
Product Height	2.5 IN
Product Length	8.9 IN
Product Width	4.9 IN
HTS/Schedule B Number	9025.19.8085
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Extech TM500

4.0

Pretty solid device with straightforward operation. The logging goes nice and deep on the SD card, so a finer granularity of testing is made pretty easy. The probes tested to be /- 1.5 DegF within each other when bundled together and left in an insulated box for 24 hours, so the precision is adequate for most general thermal testing. The marketing literature failed to mention that there is an RS232 port, so it was a pleasant surprise for me that it is present.

Verified Purchase DJB on May 21, 2018
