5 (1 Review) | UPC: 793950366257 | Model: Extech TL625
HIGH VOLTAGE 2500V, 100MHZ PROBE
List Price: $80.99
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
2000V max 10M ohm input impedance, 17.5pF Capacitance 100X Probe Ratio 15 to 35pF compensation range

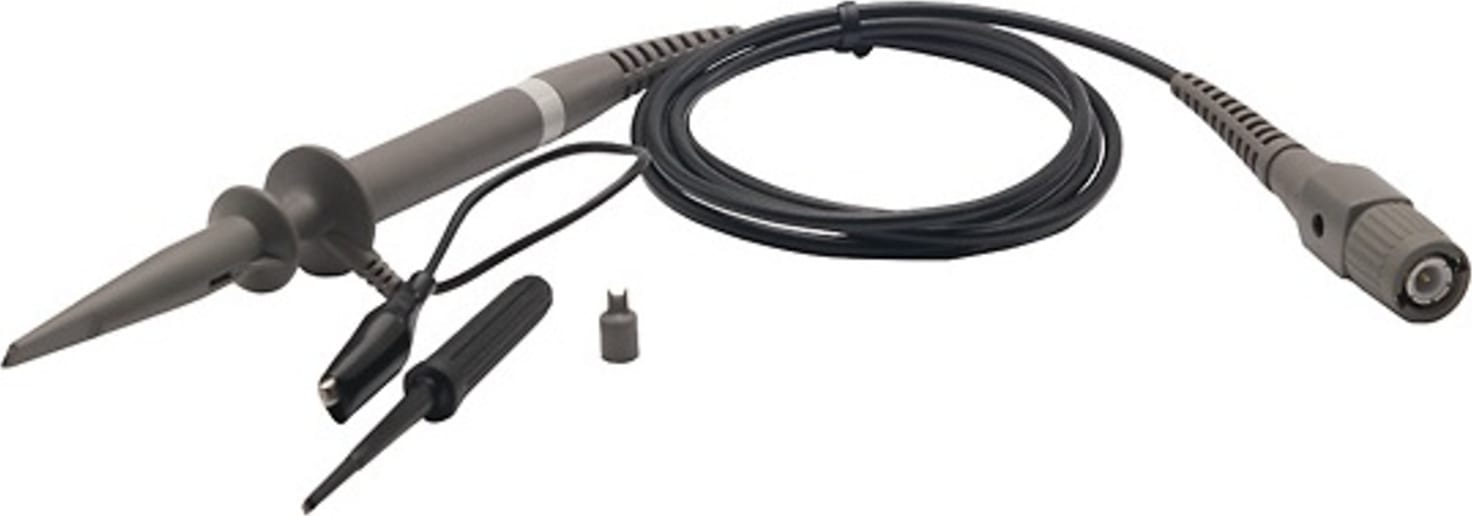

The Extech TL625 is a 100 MHz high voltage oscilloscope probe for Extech® MS6000 series oscilloscopes. 100MHz High Voltage Oscilloscope Probe, 100X probe ratio. 1.2 meter cable length. 10M ohm input impedance, 17.5pF Capacitance. 2000V max. and 15 to 35pF compensation range. Includes probe tip, ground lead and adjustment tool. Low Frequency Probe Compensation Before taking any measurements using the probe, first check the compensation and adjust it to match the channel inputs. Most oscilloscopes have a square wave reference signal available at a terminal on the front panel used to compensate the probe. Connect the probe to the signal source to display a 1kHz test signal on the oscilloscope. Adjust the trimmer “L” until the signal displays a flat-top square wave.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
EXTECH TL625 OSCILLOSCOPE HI-VOLTAGE PROBE
5.0
Perfect for extending the range on my Tektronix and Rigol Oscilloscopes. Extech makes excellent products that compete exceptionally well , especially on their price points. Their quality is excellent. I bought 2 and would not hesitate recommending them to any O'scope owners. I'm not disappointed in the least.
Verified Purchase Robert Zampedri on Sep 23, 2017 I found this helpful (0)
