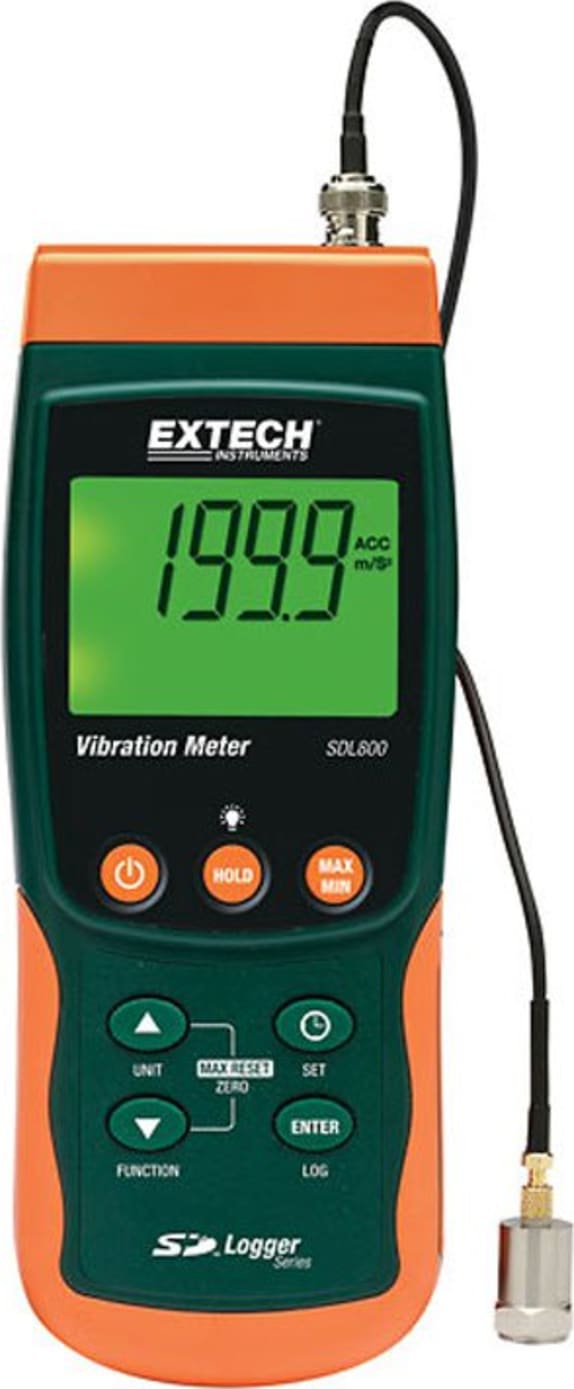

Extech SDL800 Vibration Meter - Velocity Resolution: 0.1, Accerlation Range: 200, Accerlation Resolution: 0.1

Name: Extech SDL800 Vibration Meter - Velocity Resolution: 0.1, Accerlation Range: 200, Accerlation Resolution: 0.1
Brand: Extech
SKU: ExtechSDL800
Price: 1022.61 USD
Availability: InStock
Rating: 4.00 (2 reviews)

4 (2 Reviews) | UPC: 793950438015 | Model: Extech SDL800

Compare

Vibration Meter SD Logger

Remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable
Wide frequency range of 10Hz to 1kHz
Basic accuracy of ±(5% + 2 digits); Meets ISO2954
RMS, Peak Value or Max Hold measurement modes
Adjustable data sampling rate: 1 to 3600 seconds
Datalogger date/time stamps and stores readings on an SD card in Excel ® format for easy transfer to a PC
Offset adjustment used for zero function to make relative measurements
Large backlit LCD
Stores 99 readings manually and 20M readings via 2G SD card
Record/Recall MIN, MAX readings
Data Hold plus Auto power off with disable function
Built-in PC interface
Complete with remote sensor, magnetic mount,6 x AA batteries, SD card, and hard carrying case

View Product Details

List Price: $1,149.00

Your Price: $1,022.61

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech SDL800 Vibration Meter SD Logger	Extech VB300 Vibration Datalogger	Extech VB400 Pen Vibration Meter	Extech SDL800-NIST Vibration Meter SD Logger W/NIST- PLEASE NOTE: If not in stock: NIST ca ...	Extech 407860 Heavy Duty Vibration Meter, Mounted pickup	Extech 407860-NIST Vibration Meter W/NIST, 407860- PLEASE NOTE: If not in stock: NIST cali ...	Extech VB450 Vibration Meter	Extech VB450-NIST Vibration Meter W/NIST- PLEASE NOTE: If not in stock: NIST calibration t ...	Extech VB400-NIST Pen Vibration Meter W/NIST- PLEASE NOTE: If not in stock: NIST calibrati ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech SDL800 Accessories

Choose a Category

Misc Connectors / Adapters

for the Extech SDL800

Extech UA100-240 Universal AC Adaptor 120-240V 9V@1A

Catalog: UA100-240

(0)

In Stock!

Add to Cart


Acceleration	656ft/s², 200m/s², 20.39g
Velocity	7.87in/s, 200mm/s, 19.99cm/s
Displacement	0.078in, 2mm (peak-to-peak)
Resolution	1ft/s², 0.1m/s², 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s, 0.001in, 0.001mm
Basic accuracy	±(5%+2 digits)
Memory	20,000K data records using 2G SD card
Dimensions	7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Weight	21.1oz (599g)

Reliability / Preventative Maint / Rotational/Vibration Meter Template
Velocity Resolution	0.1 mm/sec
Accerlation Range	200 m/sec2
Accerlation Resolution	0.1 m/sec2
Frequency Range	1 kHz (1000 Hz) Frequency Range 10Hz to 1kHz
Single Axis Measurement	No
Tri-Axial Measurement	No
Tachometer Capability	No
Peak/Hold	Yes
Test Equipment General Attributes
Unique Features	Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC Selectable data sampling rate: 1 to 3600 second Manually datalog up to 99 readings Basic accuracy of ±(5% + 2 digits) RMS, Peak Value or Max Hold measurement modes Data Hold freezes the reading in the display Zero function Auto shut-off saves battery life Meets ISO2954
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Storage	SD Card
Product Weight	21.1 OUNCES (1.32 LBS)
Product Height	2.9 IN
Product Length	1.9 IN
Product Width	7.2 IN
Data Logging	Yes
HTS/Schedule B Number	9027808090
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AA Battery Type 6 x AA batteries
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Manager Technical Services

4.0

The Extech SDL800 is one of the few vibration meters that will measure in Displacement and the only one at this price point. This unit functions well. My only complaint is it would be nice to have a longer sensor cord. For what we use it for, an 8 foot cable would be preferable.

Verified Purchase Robert Callahan on Mar 30, 2022

Recommend to a Friend

technician

4.0

I found this meter easy to setup and use.

Anonymous on Apr 16, 2015
