Extech SDL300-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 6900 ft/min

Name: Extech SDL300-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 6900 ft/min
Brand: Extech
SKU: ExtechSDL300-NIST
Price: 622.11 USD
Availability: InStock

0 reviews | UPC: 793950433027 | Model: Extech SDL300-NIST

Compare

Metal Vane Thermo-Anemometer SD Logger W/NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min
Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
Adjustable data sampling rate: 1 to 3600 seconds
Stores 99 readings manually and 20M readings via 2G SD card
Type K/J Thermocouple input for high temperature measurements
Large (9999 count) LCD displays Air Velocity and Temperature simultaneously
2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable
Record/Recall MIN, MAX readings
Data Hold plus Auto power off with disable function

Applications

Service Technicians
Home Inspectors
HVAC/R applications

View Product Details

List Price: $699.00

Your Price: $622.11

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech SDL300-NIST Metal Vane Thermo-Anemometer SD Logger W/NIST- PLEASE NOTE: If not in s ...	Extech SDL300 Metal Vane Thermo-Anemometer SD Logger
Price
In Stock
Type (anemometer)	Vane	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	6900 ft/min	6900 ft/min
Compare	Add to compare	Add to compare

Recommended for you

Extech SDL300-NIST Accessories

Choose a Category

Misc Connectors / Adapters
Temperature Probes

for the Extech SDL300-NIST

Extech UA100-240 Universal AC Adaptor 120-240V 9V@1A

Catalog: UA100-240

(0)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech TP400 450 Degrees F Pipe Clamp Temp Probe

Catalog: TP400

(0)

In Stock!

Add to Cart

Extech TP870 Probe, Temperature, K Bead Wire

Catalog: TP870

(1)

In Stock!

Add to Cart

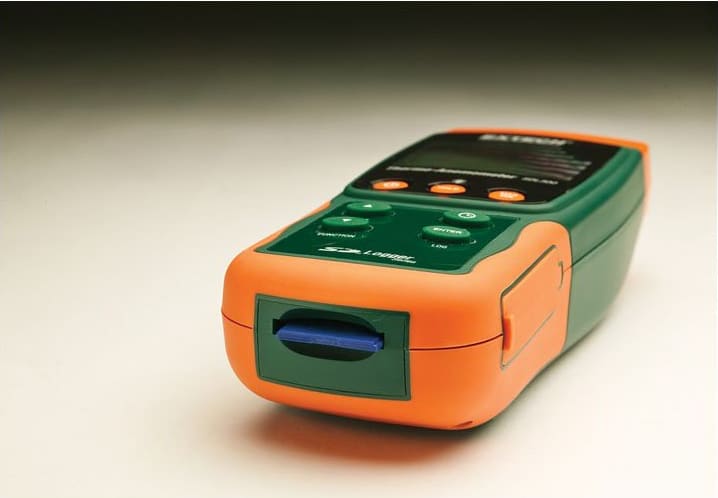

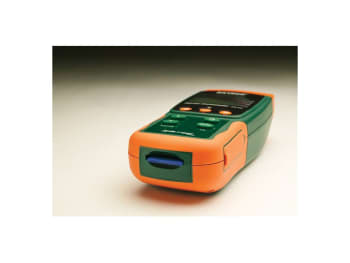

Extech SDL300-NIST - Metal Vane Thermo-Anemometer/Datalogger

Large (9999 count) LCD displays Air Velocity and Temperature simultaneously
Adjustable data sampling rate: 1 to 3600 seconds
2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable
Stores 99 readings manually and 20M readings via 2G SD card
Record/Recall MIN, MAX readings

The SDL300 records data on an SD card in Excel format. Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Adjustable data sampling rate from 1 to 3600 seconds. Stores 99 readings manually and 20M readings via a 2G SD card. Type K/J Thermocouple input for high-temperature measurements. Large (9999 count) LCD displays Air Velocity and Temperature simultaneously. 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable. Record/Recall MIN, MAX, Data Hold, Auto Power Off. Complete with 6 x AA batteries, SD card, metal vane sensor with 3.9ft (120cm) cable, and hard carrying case.

General Specification
	Range	Resolution	Basic Accuracy
Air Velocity
m/s	0.4 to 35m/s	0.1m/s	±2%rdg
ft/min	60 to 6900ft/min	1ft/min	±2%rdg
MPH	0.7 to 78.2MPH	0.1MPH	±2%rdg
knots	0.6 to 68knots	0.1knots	±2%rdg
km/h	1.0 to 1265km/h	0.1km/h	±2%rdg
Temperature	32 to 158°F (0 to 70°C)	0.1°	±1.5ºF/0.8ºC (<60°C)
Type K Temperature	-148 to 2372°F (-100 to 1300°C)	0.1°	±(0.4% + 1.8°F/1°C)
Type J Temperature	-148 to 2192°F (-100 to 1200°C)	0.1°	±(0.4% + 1.8°F/1°C)
Memory	20,000K data records using 2G SD card
Dimensions	7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Weight	17.2oz (487g)

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	6900 ft/min
Air Velocity Min	60 ft/min
Accuracy Air Velocity	ft/min:±2%rdg
Humidity	No
Temperature	Yes
IR Sensor for Tempature	No
Thermocouple Sensor for Temperature	Yes
Dew Point	No
Windchill	No
Light Meter	No
Water Proof	No
Min/Max Display	Yes
Data Hold	Yes
Thermal Printer Option	No
Interchangable Probe Options	No
Replaceable Vane	No
Metal Vane	Yes
Test Equipment General Attributes
Unique Features	Selectable data sampling rate: 1 to 3600 seconds Manually store/recall up to 99 readings 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable Record/Recall MIN, MAX readings Data Hold plus Auto power off with disable function Built-in RS-232 interface
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232, USB
Product Weight	487 GRAMS (1.07 LBS)
Product Height	73 IN
Product Length	47.5 IN
Product Width	182 IN
Data Logging	Yes
HTS/Schedule B Number	9026208000
ECCN Number	3A992
Calibration Included	NIST Calibration
Battery Type	AA Battery Type 6 x AA batteries
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
