Extech PS101-NIST Pressure Manometer - 1 Psi with Nist

Name: Extech PS101-NIST Pressure Manometer - 1 Psi with Nist
Brand: Extech
SKU: ExtechPS101-NIST
Price: 302.80 USD
Availability: InStock

0 reviews | UPC: 793950101025 | Model: Extech PS101-NIST

Compare

PRESSURE MANOMETER - 1 PSI WITH NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Differential pressure manometer with ±1psi measurement range with NIST
11 measurement units
Manually store/recall 99 readings
Max/Min recording and Relative time stamp
Large LCD display with backlighting
Data Hold and Auto power off with disable Zero function for offset correction or measurement
Complete with six AAA batteries, two connection hoses and hard carrying case

View Product Details

List Price: $339.99

In Stock:

View Payment Options

Recommended for you

The Extech PS101-NIST Differential Pressure Manometer (1psi) with NIST is ideal for field, manufacturing or lab/R&D. The PS101-NIST has a ±1psi measurement range and has an accuracy of ±1%FS. The unit manually stores/recalls 99 readings, features max/min recordings and relative time stamp. The PS101 measures psi, kPa, mmHg, kgcm², mbar, bar, inH2O, mmH2O, inHg, ftH2O and ozin². The unit also has a large LDC backlit display and zero function for offset correction or measurement.

Applications for the Extech PS101 Differential Pressure Manometer include:

HVAC: Pressure drop at filters and pressure loss in ducts
Testing pneumatic controls and pressurized equipment in manufacturing
Clean rooms and medical equipment
Testing and adjusting regulators
Positive pressure testing in clean rooms & operating rooms
Boiler installation and gas furnace pressure switch testing

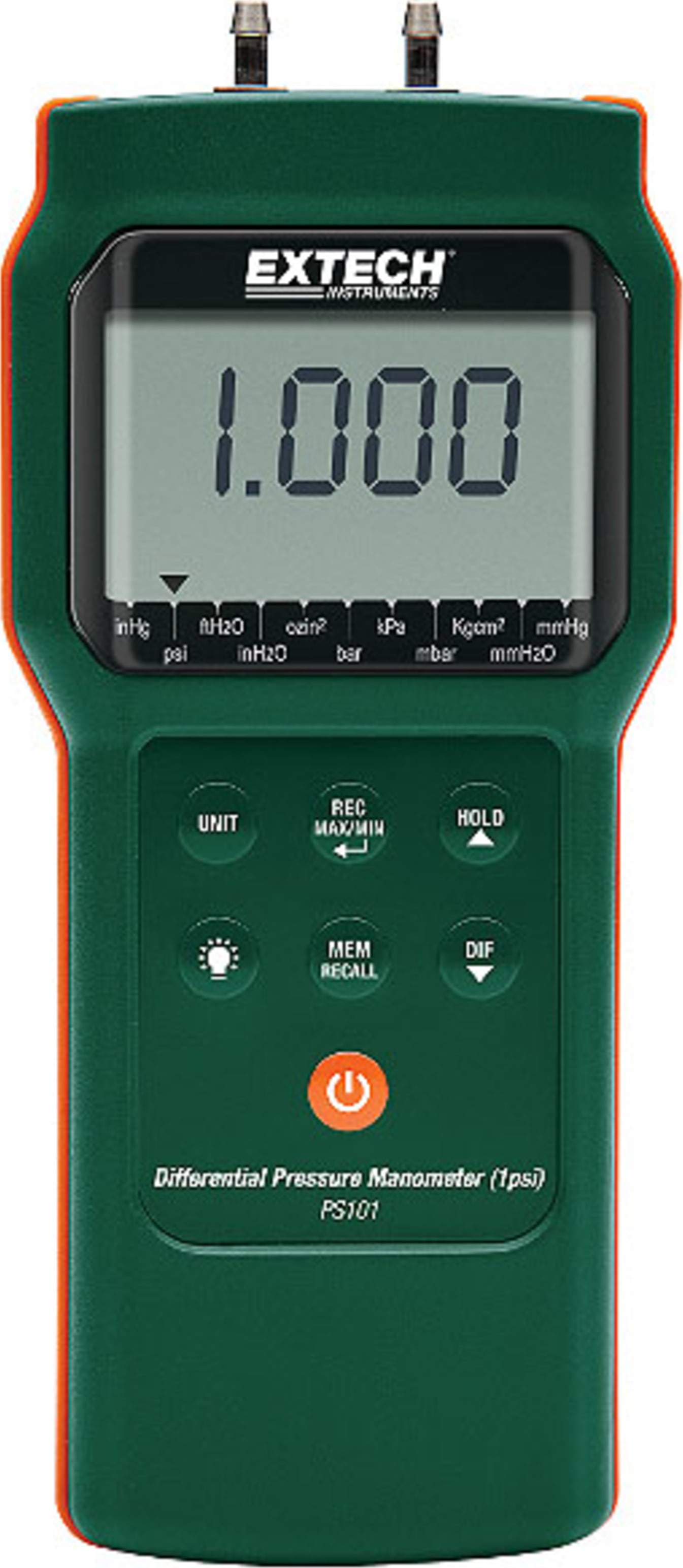

Meter Description

Positive Pressure connector
Negative Pressure connector
Measurement reading on LCD
Unit selector arrow
Unit of measure selections
UNIT of measure key
REC - MX/MN – Return key
LCD Backlight key
HOLD - up arrow ▲ key
DIF - down arrow ▼ key
MEM - RECALL key
Power ON-OFF key

Display Description

Primary Display Area
MAX-MIN mode active
Recording active
Data Hold active
Low battery voltage
Stored reading memory location
Single reading storage mode
Review stored data record
Elapsed timer
Unit of measure selector arrows
Difference mode (actual reading minus reference value)
Negative pressure connector
Positive pressure connector

Extech PS100 Series Specifications
Model	PS101	PS106	PS115
psi range	1psi	6psii	15psi
psi max resolution	0.001psi
kPa range	6.89kPa	41.37kPa	310.3mmHg
kPa max resolution	0.01kPa
mmHg range	51.7mmHg	310.3mmHg	775.7mmHg
mmHg max resolution	0.1mmHg
kgcm2 range	0.07kgcm2	0.422kgcm2	1.055kgcm2
kgcm2 max resolution	0.001kgmc2
mbar range	68.9mbar	413.7mbar	1034.2mbar
mbar max resolution	0.1mbar
bar range	0.069bar	0.414bar	1.034bar
bar max resolution	0.001bar
inH2O range	27.68inH20	166.08inH2O	415.20inH2O
inH2O max resolution	0.01inH2O
mmH2o range	703mmH2O	4218mmH2O	10546mmH2O
mmH2O max resolution	1mmH2O
inHg range	2.036inHg	12.216inHg	30.5inHg
inHg max resolution	0.001inHg
ftH2O range	2.307ftH2O	13.840ftH2O	34.6ftH2O
ftH2O max resolution	0.001ftH2O	0.001ftH2O	0.001ftH2O
ozin2 range	16.00ozin2	96.00ozin2	240.00ozin2
ozin2 max resolution	0.01ozin2
Dimensions/weight	6.7 x 3.1 x 1.4" (169 x 78.3 x 34.4mm)/7oz (200g)
Basic accuracy	±1% FS
General Specifications
Display	Backlit multifunction LCD
Status indicators	Multifunction display icons and low battery indicator
Measurement Units	bar, mbar, psi, Kg/cm2, mm Hg, inch Hg, meters of H2O, inches of H2O, hPA, kPA, and ozin2.
Accuracy (Meter)	± (0.3% full scale) at ambient temperature 25°C (± 73°F)
Repeatability	± (0.2% to 0.5% full scale)
Linearity/Hysteresis	± (0.29% to 1.0% full scale)
Combined accuracy	± (1.0% full scale)
Data Hold	Freezes the displayed reading
Max-Min	Record/Recall Record and Recall the Maximum and Minimum readings
Internal reading memory	99-reading internal memory storage with instant recall
Display update rate	0.5 seconds (approx.)
Hose dimensions	4mm lug (orange hose 500mm length)
Operating Temperature	0 to 50°C (32 to 122°F)
Operating/Storage Humidity	90% R.H. max.
Storage Temperature	-20 to 50°C (-4 to 122°F)
Auto Power OFF	After 20 minutes of inactivity (can be disabled)
Power Supply	Six (6) 1.5 VDC ‘AAA’ batteries
Weight	200g (7.0 oz.) with batteries
Dimensions	169 x 78.3 x 34.4mm (6.7 x 3.1 x 1.4”)

Tech Specs

HVAC Equipment and Instruments/Manometer Template
Type (Manometer)	Digital
Max Pressure	1 psi (27.68 IN of H2O)
Type of Input	Dual, Single
Engineering Units (HVAC)	inch H2O, inch Hg, kPa, mmH2O, mmHg, psi
Measurement	Differential
Min/Max/Hold	Yes
Test Equipment General Attributes
Unique Features	INCLUDES NIST-CALIBRATION CERTIFICATE Differential pressure manometer with ±1psi measurement range Manually store/recall 99 readings Max/Min recording and Relative time stamp Large LCD display with backlighting Data Hold and Auto power off with disable Zero function for offset correction or measurement Complete with six AAA batteries, two connection hoses and hard carrying case Units of Measure: psi kPa mmHg kgcm2 mbar bar inH2O mmH2O inHg ftH2O ozin2
Warranty	1 YEARS
Safety Approval	CE
Data Logging	Yes
Calibration Included	NIST Calibration
Battery Type	AAA Battery Type 6 x AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
