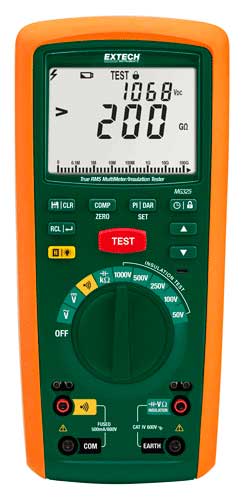

Extech MG325 - CAT IV Insulation Tester/True RMS MultiMeter

Name: Extech MG325 - CAT IV Insulation Tester/True RMS MultiMeter
Brand: Extech
SKU: ExtechMG325
Price: 280.96 USD
Availability: InStock

0 reviews | UPC: 793950383353 | Model: Extech MG325

Compare

CAT IV Insulation Tester/TRMS Multimeter

MG325 CAT IV Insulation Tester/True RMS MultiMeter
Measure Insulation Resistance to 200GΩ
5 Test Voltage ranges
Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
Low Resistance measurement with Zero function
Programmable Timer feature sets the duration of test
Comparison Mode allows user to set the Pass/Fail values for insulation measurements
Step Voltage (10% steps at 50% to 120% of range)
Auto-discharge of voltage test signal
Lock Power On Function for hands-free operation
Manually store/recall up to 99 readings
Backlit 10,000 count display with analog bargraph
LED high voltage and LCD overload indication
Data Hold to freeze displayed reading
Auto Power Off and Low battery indication
CAT IV-600V safety category

View Product Details

List Price: $315.69

Your Price: $280.96

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech MG325 CAT IV Insulation Tester/TRMS Multimeter	Extech MG325-NIST CAT IV Insulation Tester/TRMS Multimeter w/NIST- PLEASE NOTE: If not in ...	Extech MG320 CAT IV Insulation Tester/TRMS Multimeter
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech MG325 - CAT IV Insulation Tester/True RMS MultiMeter

MG325 CAT IV Insulation Tester/True RMS MultiMeter
Measure Insulation Resistance to 200GΩ
5 Test Voltage ranges
Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
Low Resistance measurement with Zero function

Combines a 200GΩ/1000V high range Insulation Tester with a full-featured True RMS MultiMeter in a single, compact instrument. CAT IV safety rating ensures the highest level of protection.

The MG325 True RMS Insulation Resistance CAT IV 600V DMM. The MG325 features a rugged design for heavy duty use. The MG325 measures Insulation Resistance, AC/DC Voltage, Frequency, Leakage Current, Low Resistance, Continuity, and Capacitance. Insulation Resistance tests are automatic ranging with 5 test voltages from 50V to 1000V. The MG325 can store and recall up to 99 measurements.

The MG325 is suitable for measuring the insulation resistance on elecrical equipment such as transformers, motors, cables, switches, and appliances.

Specifications	Range	Resolution	Basic Accuracy
Insulation Resistance	50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ	0.001MΩ	±(3%+3d)
Insulation Test Voltages	50V, 100V, 250V, 500V, 1000V		0 to 20%
AC/DC Voltage	600V	0.01V	AC: ±(1.5%+5d)/ DC: ±(2%+3d)
Leakage Current	2000µA	10µA	±(10%+3d)
Resistance	10MΩ	0.01kΩ	±(3%+3d)
Low Resistance	100Ω	0.01Ω	±(1.5%+5d)
Capacitance	500µF	0.1nF	±(5%+5d)
Frequency	1kHZ	0.1HZ	±(0.1%+3d)
Continuity (audible)	Yes
Dimensions/ Weight	8.9 x 4.1 x 2.3" (225 x 103 x 59mm)/ 1.5lbs (0.7kg)
