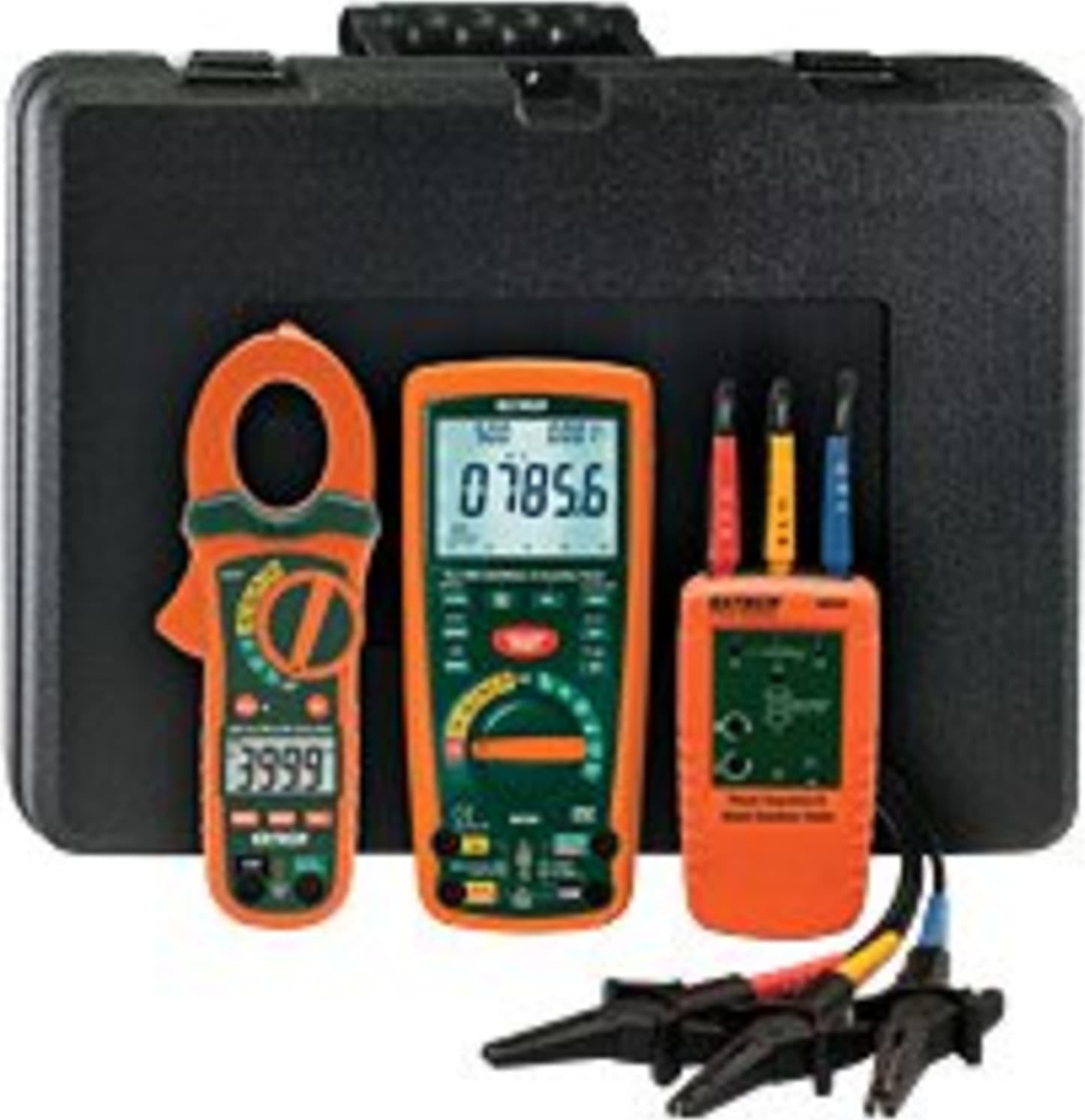

MOTOR and DRIVE TROUBLESHOOTING KIT

Kit includes:
- MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
- 480403 - Motor Rotation and 3-Phase Tester
- MA435T - 400A True RMS AC/DC Clamp Meter with built-in non-contact voltage detector
Complete with with test leads, 3 color-coded alligator clips, bead wire temperature probe, batteries, and hard storage case that provides protection and organization for the meters and accessories

View Product Details

List Price: $609.00

In Stock:

View Payment Options

Recommended for you

Extech MG302-MTK

Kit includes:

MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
480403 - Motor Rotation and 3-Phase Tester
MA435T - 400A True RMS AC/DC Clamp Meter with built-in non-contact voltage detector

Complete with with test leads, 3 color-coded alligator clips, bead wire temperature probe, batteries, and hard storage case that provides protection and organization for the meters and accessories

Motor and Drive Troubleshooting Kit

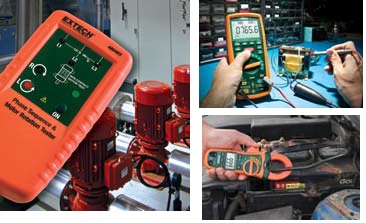

This Extech Electrical Troubleshooting Kit it includes three compact tools that are indispensable at a customer site from troubleshooting 3-phase motors and drives.

MG300 or MG302 — 13 Function, Wireless PC Interface, True RMS Multimeter/Insulation Tester
480403 — Motor Rotation and 3-Phase Tester checks phase sequence and indicates rotation direction of the motor to help insure correct wiring
MA435T — 400A True RMS AC/DC Clamp Meter with built-in non-contact voltage detector and ideal for noisy or non-sinusoidal AC measurement
1.2" (30mm) jaw size for conductors up to 350MCM
Exceptional Value Kit is supplied with test leads, 3 large color-coded alligator clips, Type K thermocouple bead wire probe, batteries, and attractive storage case that provides protection and organization for the meters and accessories

Extech MG300-MTK Motor & Drive Troubleshooting Kit Specifications

MG300/MG302 Specifications	Range Max	Resolution
Wireless frequency	915MHz (MG300); 433MHz (MG302)
Insulation Resistance	4MΩ, 40MΩ, 400MΩ, 4000MΩ	0.001MΩ
Insulation Test Voltages	125V, 250V, 500V, 1000V
AC/DC Voltage	1000V	0.1mV AC/ 0.01mV DC
AC/DC Current	10A	0.1μA AC/ 0.01μA DC
Resistance	40MΩ	0.01Ω
Capacitance	40mF	0.001nF
Frequency	100MHZ	0.001HZ
Duty Cycle	0.1 to 99.9%	0.01
Temperature	-58 to 2192°F (-50 to 1200°C)	0.1°
4-20mA%	-25 to 125%	0.01%
Continuity/Diode	Yes

MA435T Specifications	Range (Max Resolution)
AC Current	400A (0.01A) True RMS
DC Current	400A (0.01A)
AC Voltage	600V (0.1mV) True RMS
DC Voltage	600V (0.1mV)
Resistance	20MΩ (0.1Ω)
Frequency	10Hz to 10kHz (0.01Hz)
Capacitance	100μF (0.01nF)
Temperature	-4 to 1400°F /-20 to 760°C (0.1°)
Continuity / Diode	Yes

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 125V, 250 V, 500 V
Maximum Insulation Resistance	4000 M Ohms (4 G Ohms)
Type	Battery
Minimum Insulation Resistance	4 M Ohms (0.004 G Ohms)
Display (Megohmmeter)	Digital
Continuity Test	Yes
Live Circuit Voltage Detection	Yes
Test Equipment General Attributes
Unique Features	Kit includes: MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface 480403 - Motor Rotation and 3-Phase Tester MA435T - 400A True RMS AC/DC Clamp Meter with built-in non-contact voltage detector
Warranty	1 YEARS
Safety Approval	CE
Power Supply Voltage	Battery Powered
Country of Origin	China
