Extech MG302-ETK - Electrical Troubleshooting Kit

Name: Extech MG302-ETK - Electrical Troubleshooting Kit
Brand: Extech
SKU: ExtechMG302-ETK
Price: 209.99 USD
Availability: InStock

0 reviews | UPC: 793950381021 | Model: Extech MG302-ETK

Compare

ELECTRICAL TROUBLESHOOTING KIT

Kit includes:
- MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
- 42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display
- MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector
Complete with with test leads, Type K thermocouple bead wire probe, batteries, and hard storage case that provides protection and organization for the meters and accessories

View Product Details

List Price: $209.99

In Stock:

View Payment Options

Recommended for you

Extech MG302-ETK

Kit includes:

MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display
MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector

Complete with with test leads, Type K thermocouple bead wire probe, batteries, and hard storage case that provides protection and organization for the meters and accessories

Electrical Troubleshooting Kit

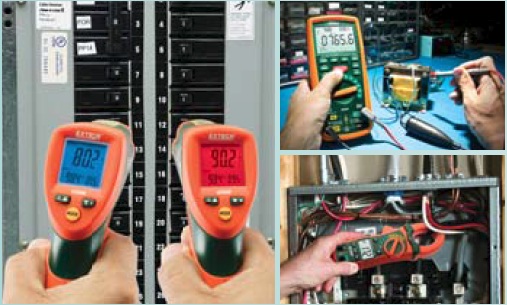

This Extech Electrical Troubleshooting Kit includes three compact tools that are indispensable at a customer site for electrical installation, troubleshooting, and repair.

MG300 or MG302 — 13 Function, Wireless PC Interface, True RMS Multimeter/Insulation Tester
42509 — 12:1 Infrared Thermometer with high/low alarm and fast 2-color display for processes that require temperature control and monitoring; measures from -4 to 950°F (-20 to 510°C)
MA430T — 400A True RMS AC Clamp Meter with built-in non-contact voltage detector and ideal for noisy or non-sinusoidal AC measurement
1.2" (30mm) jaw size for conductors up to 350MCM
Exceptional Value Kit is supplied with test leads, Type K thermocouple bead wire probe, batteries, and attractive storage case that provides protection and organization for the meters and accessories

Extech MG302-ETK Electrical Troubleshooting Kit Specifications

MG300/MG302 Specifications	Range Max	Resolution
Wireless frequency	915MHz (MG300); 433MHz (MG302)
Insulation Resistance	4MΩ, 40MΩ, 400MΩ, 4000MΩ	0.001MΩ
Insulation Test Voltages	125V, 250V, 500V, 1000V
AC/DC Voltage	1000V	0.1mV AC/ 0.01mV DC
AC/DC Current	10A	0.1μA AC/ 0.01μA DC
Resistance	40MΩ	0.01Ω
Capacitance	40mF	0.001nF
Frequency	100MHZ	0.001HZ
Duty Cycle	0.1 to 99.9%	0.01
Temperature	-58 to 2192°F (-50 to 1200°C)	0.1°
4-20mA%	-25 to 125%	0.01%
Continuity/Diode	Yes

MA430T Specifications	Range (Max Resolution)
AC Current	400A (0.01A) True RMS
AC Voltage	600V (0.1mV) True RMS
DC Voltage	600V (0.1mV)
Resistance	20MΩ (0.1Ω)
Continuity / Diode	Yes

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 125V, 250 V, 500 V
Maximum Insulation Resistance	4000 M Ohms (4 G Ohms)
Type	Battery
Minimum Insulation Resistance	4 M Ohms (0.004 G Ohms)
Display (Megohmmeter)	Digital
Continuity Test	Yes
Live Circuit Voltage Detection	Yes
Test Equipment General Attributes
Unique Features	Kit includes: MG302 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface 42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector Complete with with test leads, Type K thermocouple bead wire probe, batteries, and hard storage case that provides protection and organization for the meters and accessories
Warranty	1 YEARS
Safety Approval	CE
Power Supply Voltage	Battery Powered
Country of Origin	China
