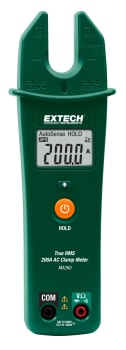

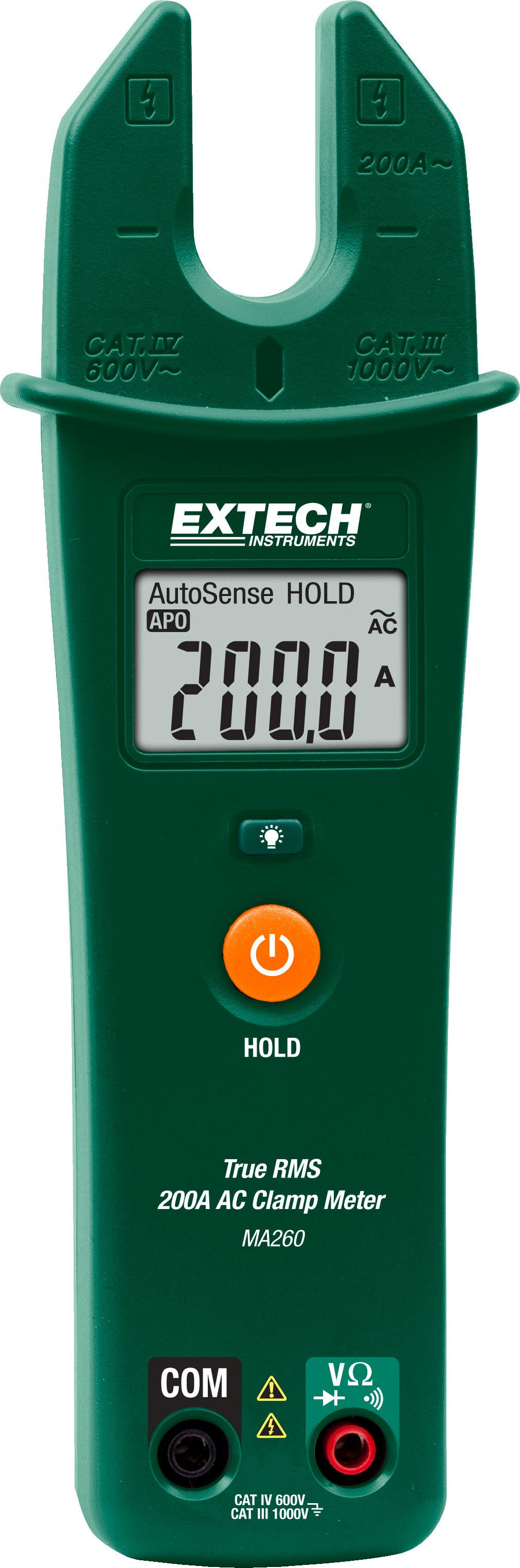

Extech MA260 CAT IV True RMS 200A AC Open Jaw Clamp Meter

Name: Extech MA260 CAT IV True RMS 200A AC Open Jaw Clamp Meter
Brand: Extech
SKU: ExtechMA260
Price: 124.59 USD
Availability: InStock

0 reviews | UPC: 793950382622 | Model: Extech MA260

Extech MA260 True RMS 200A AC Open Jaw Clamp Meter

Compare

Clamp Meter, Open Jaw 200A AC TRMS W/NCV

MA260 CAT IV True RMS 200A AC Open Jaw Clamp Meter
Smart Auto Sensing technology enables the meter to recognize the input and automatically switch to the correct mode of operation
For AC Voltage, Auto Sense feature evaluates input signal and adjusts Input Impedance to eliminate effects of ghost voltages
0.6" (16mm) open jaw size
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Built-in non-contact voltage detector with LED indicator
10,000 count backlit LCD display
Smart Data Hold freezes the reading on the display and automatically changes if a new reading is larger than 50 counts
Auto Power Off with disable
Slim housing construction with built-in test lead holders
Complete with test leads and two AAA batteries

View Product Details

List Price: $139.99

Your Price: $124.59

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Extech MA260 CAT IV True RMS 200A AC Open Jaw Clamp Meter

Built-in non-contact voltage detector with LED indicator
10,000 count backlit LCD display
0.6" (16mm) open jaw size
Auto Power Off with disable
Slim housing construction with built-in test lead holders

Easy-to-use, one button, Auto Sense technology allows the meter to recognize the input being measured and will automatically switch to the correct mode of operation. Its convenient Open Jaw design provides quick measurements in tight locations. True RMS provides accurate readings. The MA260 measures AC current, AC/DC Voltage, Resistance, Continuity, and Diode and offers extra-large display digits, data hold, and a display backlight function. The non-contact Volt-Detection feature senses electrical sources safely.

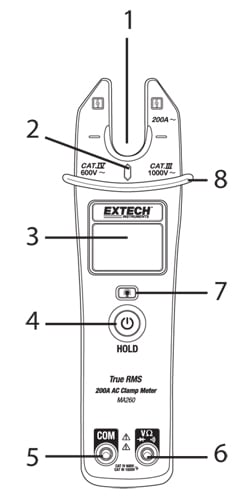

Meter Description

Transformer current measurement jaw
Non-contact Volt-Detection and AC/DC contact voltage indicator
Backlit Multi-function Display
Power/Hold button
COM (-) Terminal
Voltage, Resistance (+) Input Terminal
Backlight button
Finger-Hand Guard

Note that the battery compartment is located on back of meter

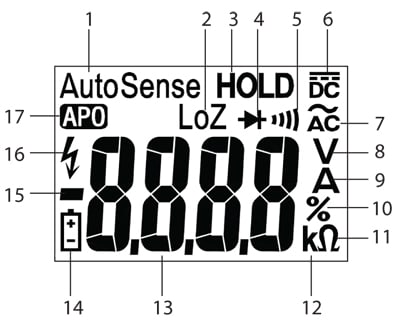

Delay Description

Automatic measurement detect
Low impedance mode is always active
Data Hold
Diode test
Continuity alert
DC measurement
AC measurement
Voltage
Amperes
Battery Status in Percent
Resistance/Continuity ohms
Kilo prefix
Main display digits
Battery status
Minus sign
DANGER. Live voltage detected
Auto Power OFF

Specifications	Range	Max Resolution	Basic Accuracy
AC Current	200A	0.1A	±3.0%
AC Voltage	1.3V to 1000V	0.1V	±0.9%
DC Voltage	2.1V to 1000V	0.1V	±0.3%
Non-contact Voltage (NCV)	80 to 1000V AC (50 to 60Hz)
Resistance (Ω)	0 to 10kΩ	1Ω	±0.9%
Input Impedance	6kΩ up to 30V; Increases to 420kΩ at 1000V
Diode	0.4 to 0.8V 0	.1V	±1.0%
Continuity	Beeper (25Ω threshold)
Dimensions	7.6 x 2.1 x 1.2" (193 x 54 x 31mm)
Weight	9.9oz (280g)

Test Equipment General Attributes
Product Height	2.50 IN
Product Length	11.00 IN
Product Width	4.50 IN
Country of Origin	Taiwan
Shipping Height	2.50 IN
Shipping Length	11.00 IN
Shipping Width	4.50 IN
