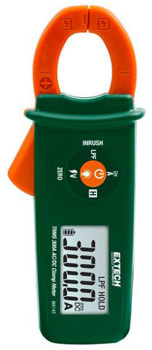

Extech MA145 True RMS 300A AC/DC Mini Clamp Meter + NCV

Name: Extech MA145 True RMS 300A AC/DC Mini Clamp Meter + NCV
Brand: Extech
SKU: ExtechMA145
Price: 124.68 USD
Availability: InStock

0 reviews | UPC: 793950371459 | Model: Extech MA145

Extech MA145 True RMS 300A AC/DC Clamp Meter

Compare

Clamp Meter, Mini 300A, AC/DC W/NCV

MA145 True RMS 300A AC/DC Mini Clamp Meter + NCV
AC/DC Current and Zero function for accurate DC measurements
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Compact 0.8" (22mm) jaw size accommodates conductors up to 300MCM and allows measurements in tight locations
Unique Smart Auto Sense feature
Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals
Built-in Non-Contact Voltage (NCV) detector
Inrush current measurement
6000 count backlit LCD display
Smart Data Hold: Audiovisual alert when a new reading exceeds 50 digits of a held reading
Low battery indicator and Auto Power Off feature
CAT III-600V safety rating
Complete with carrying case and two LR44 batteries

View Product Details

List Price: $139.99

In Stock:

View Payment Options

Recommended for you

Extech MA145 True RMS 300A AC/DC Mini Clamp Meter + NCV

Unique Smart Auto Sense feature
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Built-in Non-Contact Voltage (NCV) detector
6000 count backlit LCD display
CAT III-600V safety rating
Low battery indicator and Auto Power Off feature

Choice of AC Current or AC/DC Current model with 0.8" (22mm) jaw size and high accuracy. Smart Auto Sense feature enables the MA145 to recognize the input (within a given function) and automatically switch to the correct mode of operation (i.e. AC to DC Current measurement). Built-in Non-Contact Voltage (NCV) Detector allows for quick detection of live voltage. The MA145 measures AC/DC current to 300A and offers a Smart Data Hold feature, display Backlight, In-rush Current mode, DCA Zero, Low Pass Filtering (LPF), and a non-contact Voltage Detection feature that senses electrical sources safely.

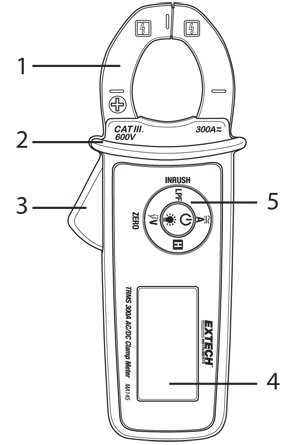

Meter Description

Transformer current jaw
Finger-Hand Guard
Jaw opening trigger
LCD Multi-function display
Push-button controls

Note that the battery compartment is located on back of meter

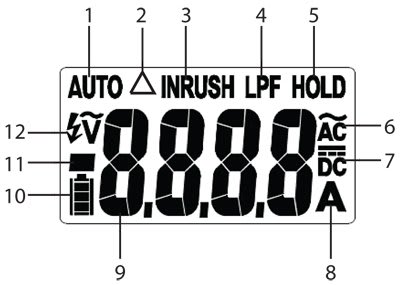

Delay Description

Automatic ACA/DCA detect
Zero icon
In-Rush Current mode
Low Pass Filter
Data Hold
AC Measurement
DC Measurement
Amperes (current)
Main Display area
Battery status icon
Minus (negative) sign
Non-Contact Volt Detect icons

Specifications
Model	MA140	MA145
AC Current (max resolution)	60A, 300A (0.01A) 6	0A, 300A (0.01A)
DC Current (max resolution)	—	60A, 300A (0.01A)
Basic accuracy	±2.0%	AC: ±1.5%, DC: ±1.5%
Non-Contact Voltage (NCV)	80 to 600V	80 to 600V
Dimensions	5.8x2.4x1.2" (147x60x31mm)	5.8x2.4x1.2" (147x60x31mm)
Weight	4.9oz (140g)	4.9oz (140g)

Tech Specs

Test Equipment General Attributes
Product Height	2.20 IN
Product Length	9.25 IN
Product Width	6.30 IN
Country of Origin	Taiwan
Shipping Height	2.20 IN
Shipping Length	9.25 IN
Shipping Width	6.30 IN
