SMD Component Fixture

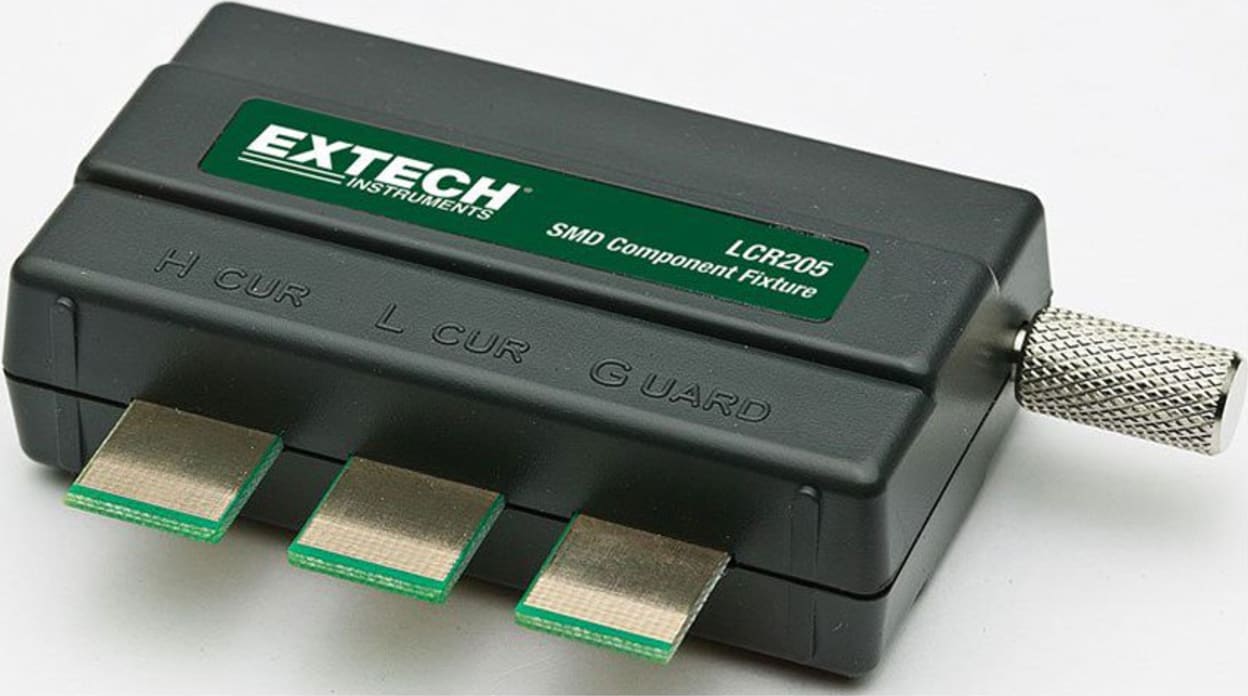

Extech's SMD Component Fixture (LCR205) is an accessory designed for use with the Extech LCR200 Passive Component LCR meter. The LCR205 is useful for testing tasks like impedance evaluations on SMDs. The unit features three terminals for High, Low, and Guard as well as an adjustment knob to secure measurement contacts to components being tested.
About the related LCR200 meter (not included)
The Extech LCR200 is useful for manufacturing facilities performing QC and testing, as well as for individual users that need to validate and sort a range of components in custom projects. Unlike the capacitance and resistance capabilities of a digital multimeter, this affordable-yet-advanced meter provides enhanced accuracy and the advantage of inductance. For your circuit testing, the LCR meter enables you to test a range of important secondary parameters such as the Quality, Dissipation, θ (Phase), and Equivalent Series Resistance (ESR) of your components with both series and parallel modes. Discover tremendous value with a range of features that help this meter capture precise measurements. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display coupled with a segmented bargraph display. You can set Hi/Lo limits using absolute values or percentage limits and test with five preset frequencies. Open and Short Zero removes unwanted stray impedances from measurements. Use the built-in test fixture or external test leads (included).
Other Features
Besides the LCR205 SMD Chip Component Fixture, another optional accessory is the LCR203 SMD Component Tweezers. A soft pouch storage case (CA900) is also available. The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries.
