Extech IR270-NIST - Thermometer IR with Color Alert with NIST

Name: Extech IR270-NIST - Thermometer IR with Color Alert with NIST
Brand: Extech
SKU: ExtechIR270-NIST
Price: 248.47 USD
Availability: InStock

0 reviews | UPC: 793950425671 | Model: Extech IR270-NIST

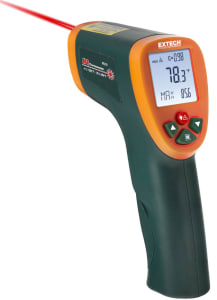

Extech IR270 IR Thermometer with Color Alert

Compare

Thermometer IR with Color Alert w/NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Take non-contact temperature measurements from -4 to 1202°F (-20 to 650°C)
Max resolution of 0.1°F/°C and basic accuracy of ±(1% of reading + 2°F/1°C)
12:1 distance to spot (target) ratio
Built-in laser pointer identifies target area with on/off button
Programmable Hi/Low alarms with audible beeper — tri-color LCD display changes to Blue backlight when reading goes below low alarm setting and Red backlight when reading exceeds High set point
Adjustable emissivity (0.10 to 1.00) increases measurement accuracy
Record/Recall up to 20 readings
Automatic Data Hold when trigger released
MAX/MIN/AVG/DIF functions
Bright white backlighting illuminates display for taking measurements at night or in areas with low background light levels
Auto power off
Low battery indicator
Dimensions: 7.1x4.2x1.6" (180x107x40mm)
Weight: 5.3oz (150g)
Complete with 9V battery and pouch

View Product Details

List Price: $278.99

Your Price: $248.47

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech IR270-NIST Thermometer IR with Color Alert w/NIST- PLEASE NOTE: If not in stock: NI ...	Extech IR270 Thermometer IR with Color Alert
Price
In Stock
IR Temperature Max	650 C (1202 F)	650 C (1202 F)
IR Temperature Min	-20 C (-4 F)	-20 C (-4 F)
Field View Ratio (Spot Ratio)	12:1	12:1
Compare	Add to compare	Add to compare

Recommended for you

Extech IR270-NIST

Take non-contact temperature measurements from -4 to 1202°F (-20 to 650°C)
Max resolution of 0.1°F/°C and basic accuracy of ±(1% of reading + 2°F/1°C)
12:1 distance to spot (target) ratio
Built-in laser pointer identifies target area with on/off button

Thermometer IR with Color Alert with NIST

Fast response with high accuracy, the Extech IR270 is ideal for quick checks of multiple spots in a process or for catching spikes in temperature. Easy programmable High/Low Alarm with tri-color display and audible alarm measures non-contact temperature up to 1202°F (650°C).

Infrared Thermometer Specifications
Range / Resolution	Auto range ‐20 ~ 650°C (‐4 ~ 1202°F) / Resolution 0.1°
Accuracy	‐20 ~ ‐2°C (‐4 ~ 28°F): ± 4°C (8°F) ‐2 ~ 94°C (28 ~ 200°F): ± 2.5°C (4.5°F) 94 ~ 204°C (200 ~ 400°F): ± (1.0%rdg + 1°C/2°F) 204 ~ 426°C (400 ~ 800°F): ± (1.5%rdg + 1°C/2°F) 426 ~ 650°C (800 ~ 1202°F): ± (3%rdg + 1°C/2°F) Note: Accuracy is specified for the following ambient temperature range: 23 ~ 25°C (73 ~ 77°F), < 80%RH
Emissivity	0.10 ~ 1.00 adjustable
Field of View	12:1 (approx.) Distance to Spot ratio
Laser power	Class 2 < 1mW, 650nm ±10nm
IR Spectral response	8 ~ 14 µm
Repeatability	±0.5%rdg or ±1°C (1.8°F); whichever is greater
General Specifications
Display	Backlit LCD with multifunction indicators
Response time	150ms
Out‐of‐range indicators	‘HI’ for over‐range
Operating temperature	0°C ~ 50°C (32°F ~ 122°F)
Operating relative humidity	10 ~ 90% RH
Storage temperature	‐10°C ~ 60°C (14°F ~ 140°F)
Storage relative humidity	80% RH maximum
Power supply	One 9V battery
Automatic power OFF	After approx. 7 seconds of trigger release
Weight	150g (5.3 oz.)
Dimensions	180 x 107 x 40mm (7.1 x 4.2 x 1.6”)

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	650 C (1202 F) IR Temperature Max 650°C
IR Temperature Min	-20 C (-4 F) IR Temperature Min -20°C
Field View Ratio (Spot Ratio)	12:1
Accuracy	‐20 ~ ‐2°C (‐4 ~ 28°F): ± 4°C (8°F) ‐2 ~ 94°C (28 ~ 200°F): ± 2.5°C (4.5°F) 94 ~ 204°C (200 ~ 400°F): ± (1.0%rdg + 1°C/2°F) 204 ~ 426°C (400 ~ 800°F): ± (1.5%rdg + 1°C/2°F) 426 ~ 650°C (800 ~ 1202°F): ± (3%rdg + 1°C/2°F) Note: Accuracy is specified for the following ambient temperature range: 23 ~ 25°C (73 ~ 77°F), <80%RH
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	Yes
Data Hold	Yes
Test Equipment General Attributes
Product Weight	0.33 LBS
Calibration Included	NIST Calibration
Country of Origin	China
