• Articulation knob
• Connects to HDV600 VideoScope with patch cable (HDV-PC)
• 1m semi-rigid nondetachable probe (camera head)
• 6mm diameter camera, 60° FOV, Macro

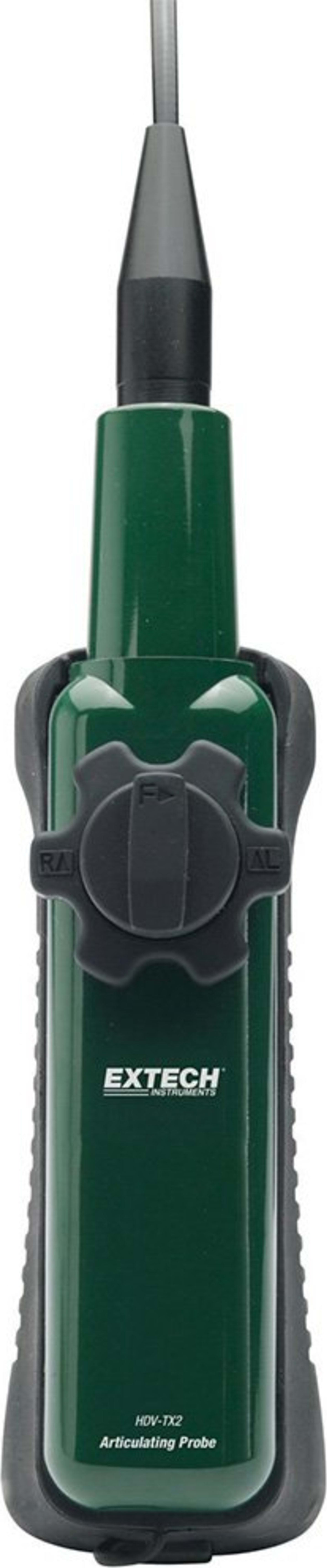

The HDV-TX1 is a Wired Handset with Articulating Probe (1m), Semi-rigid probe (1m) with 6mm diameter camera, and a Macro lens. The Extech HDV-TX1 is made for use with Extech's HDV600 VideoScope, connects via a patch cable (HDV-PC). This device consists of a semi-rigid probe with 6mm diameter camera and macro lens attached to a handheld unit. This unit includes an articulation knob for easy adjustment of the camera.

• Articulation knob
• Articulation tension knob
• Articulating camera
• Extension cable sockets

The articulation direction and orientation may change if the probe is twisted and coiled during use or when stored. To re-orient the probe:

1. Place the extended probe on a flat surface

2. Set the tension “F” knob to the left or released position.

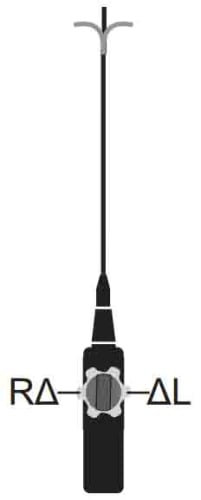

3. Set the articulation knob to the center position with the R ? and ? L labels in the horizontal position.

4. Manually adjust the probe and camera to the zero degree position.

5. Rotate the articulation knob clockwise for a 120° bend.

6. If necessary, manually adjust the probe so that the camera lays flat on the surface with a 120° articulation

7. Rotate the articulation knob counter-clockwise and confirm proper orientation.
