Extech GX900 True RMS Graphical MultiMeter with Bluetooth

• AC+DC measurement components displayed combined or separate
• Dual sensitivity frequency functions
• Data logging stores up to 2500 readings with date and time stamp
• Auto power off with disable feature
• 1000V input protection on all functions

Transmits key electrical readings to Android mobile devices

The GX900 is a True RMS Graphical MultiMate with Bluetooth which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth and diode continuity. The GX900 features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold and auto power off. Meter has a CAT IV 600V safety rating and comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, user's manual, six AA batteries and a one year warranty.


Sample GX900 Display Functions

Graphical Trend Mode

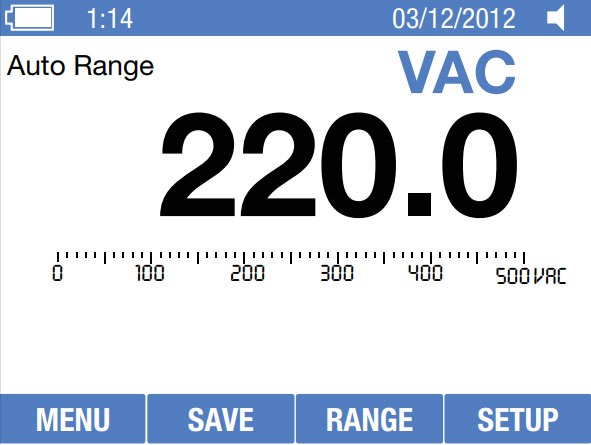

AC Voltage Mode

Datalogger Setup Menu

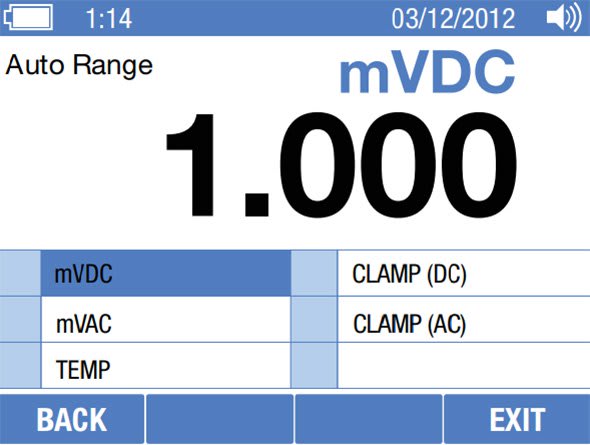

Clamp Adapter Setup Menu

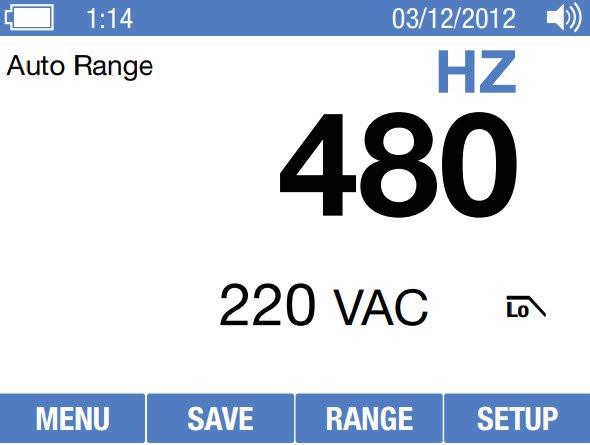

Low Pass Filter Mode
