Extech EMF450 EMF / ELF Meter - Type (EMF): Hand Held, Single Triaxial Measurement: Yes, RF Measurement: Yes

Name: Extech EMF450 EMF / ELF Meter - Type (EMF): Hand Held, Single Triaxial Measurement: Yes, RF Measurement: Yes
Brand: Extech
SKU: ExtechEMF450
Price: 290.13 USD
Availability: InStock
Rating: 4.67 (3 reviews)

4.5 (3 Reviews) | UPC: 793950224502 | Model: Extech EMF450

Compare

3-in-1 EMF Meter: Magnetic Field, Electric Field, and Radio Frequency

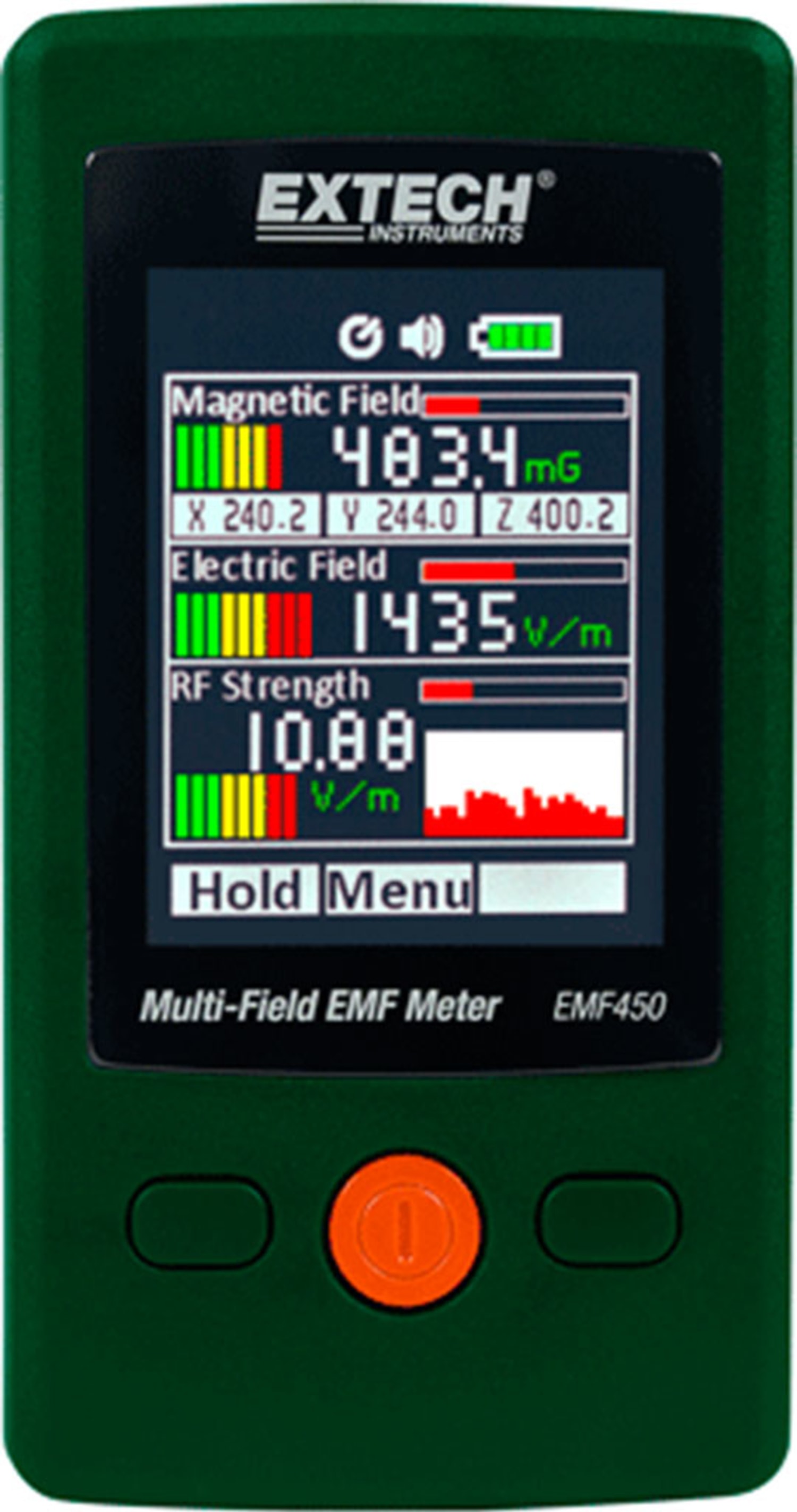

EMF450 Multi-Field EMF Meter
Multi-Field measurements: Magnetic Field, Electric Field, and Radio Frequency (RF) Strength
Magnetic Field Triple Axis Sensor (X, Y, Z)
Audible alarm
2.4" (240 x 320 pixels) color TFT display
Adjustable screen brightness (low, medium, high)
Store up to 20 RF historical records
Data Hold and Auto Power Off with disable feature
Five languages: English, Traditional/Simplified Chinese, Japanese, Spanish
Complete with 3 AAA batteries

View Product Details

List Price: $325.99

Your Price: $290.13

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Extech EMF450 Multi-Field EMF Meter

2.4" (240 x 320 pixels) color TFT display
Adjustable screen brightness (low, medium, high)
Magnetic Field Triple Axis Sensor (X, Y, Z)
Store up to 20 RF historical records

Convenient 3-in-1 EMF meter simultaneously measures and displays Magnetic Field, Electric Field, and Radio Frequency Strength. Ergonomic pocket-sized design with an easy-to-navigate menu. Large vivid color TFT display shows digital readings, bargraphs, and trending graph.

Applications:

Home appliances
Power Lines
Electrical Appliances
Industrial Devices
Mobile / Cellphones
Base Stations

General Specifications
Specifications	Range	Max Resolution	Basic Accuracy
Magnetic Fields (50/60Hz)	20/200/2000mG 2/20/200µT	0.02/0.1/1mG 0.02/0.1/1µT	±(15%+100 digit)
Electric Fields (50/60Hz)	50V/m to 2000V/m		±(7% + 50dgt)
RF Strength (50MHz to 3.5GHz)	0.02uW/m² to 554.6mW/m²	0.02µW/m²
	0.02uW/cm² to 55.4uW/cm²	0.002µW/cm²
	36.1mV/m to14.46V/m	0.2mV/m
	0.02mA/m to 38.35mA/m	0.2µA/m
	-51dB to 16dBm	2dB	±2dB at 2.45GHz
Dimensions/ Weight	4.5 x 2.4 x 0.8" (115 x 60 x 21mm)/ 4.2oz (120g)
Bargraph	Magnetic Fields	RF Strength	Electric Field
Green	0 to 10.00mG	0 to 0.99mW/m² 0 to 0.59V/m	0 to 500V/m
Yellow	10.01 to 100mG	1 to 9.99mW/m² 0.6 to 1.9V/m	501 to 1000V/m
Red	101 to 2000mG	>10mW/m² >2V/m	>1001V/m

Environmental Testers / Physical Property/EMF / ELF Meter Template
Type (EMF)	Hand Held
Single Triaxial Measurement	Yes
RF Measurement	Yes
Maximum Frequency	3.5 GHz
Max Hold	Yes
Audible Alarm	Yes
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
Interfaces I/O	USB
Product Weight	120 GRAMS (0.265 LBS)
HTS/Schedule B Number	9030.33.3400
ECCN Number	3A992.g
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
UPC	793950224502
Other Information	Dimensions: 4.5 x 2.4 x 0.8" (115 x 60 x 21mm)
