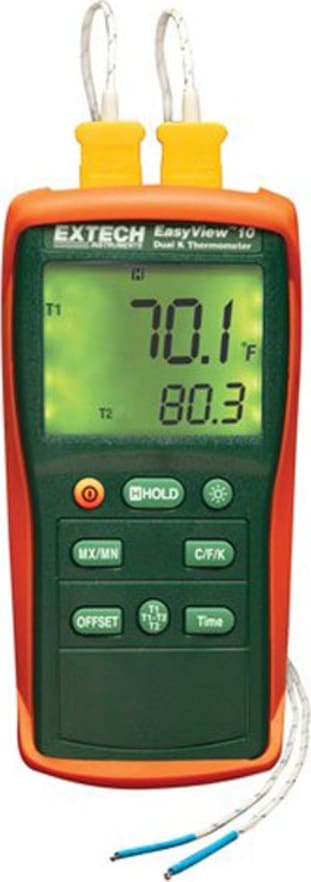

Extech EA10 - EasyView Dual Input Thermometers

Name: Extech EA10 - EasyView Dual Input Thermometers
Brand: Extech
SKU: ExtechEA10
Price: 132.69 USD
Availability: InStock

0 reviews | UPC: 793950411100 | Model: Extech EA10

Compare

Thermometer, Type K, Kit Dual Input

Temperature range: -200 to 1999°F (-200 to 1360°C) with 0.1°/1° resolution
Compact and rugged design features large backlit display
Displays [T1 plus T2] or [T1-T2 plus T1] or [T1-T2 plus T2]
Timer function displays elapsed time plus the time when MIN and MAX readings are taken
Data Hold, Auto power off, low battery and overrange indication
Records Max/Min readings for later recall
OFFSET key used for zero function to make relative measurements
Limited Two Years Warranty

View Product Details

List Price: $148.99

Your Price: $132.69

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech EA10 Thermometer, Type K, Kit Dual Input	Extech EA15 Therm, Dual Input, Type K, J, T, E, R, S, N, Easy View	Extech EA15-NIST Thermometer, K, W/NIST EA15- PLEASE NOTE: If not in stock: NIST calibrati ...
Price
In Stock
Type (Contact Thermometers)	Thermocouple	Thermocouple	Thermocouple
Types RTD/Thermocouples Accepted	K	E, J, K, N, R, S, T	E, J, K, N, R, S, T
Number of Probe Inputs/Channels	2	2	2
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech EA10 Accessories

Choose a Category

for the Extech EA10

Extech 409996 Carrying Case, Hip Holster (Pouch)

Catalog: 409996

(1)

In Stock!

Add to Cart

Extech 881616 Magnetized Type K Surface Probe (-40 to 392?F)

Catalog: 881616

(0)

In Stock!

Add to Cart

Extech 871515 Probe, Temperature, K General Purpose

Catalog: 871515

(0)

In Stock!

Add to Cart

Extech 881602 Probe, Temperature, K Surface Probe

Catalog: 881602

(1)

In Stock!

Add to Cart

Extech 881603 Probe, Temperature, K Heavy Duty Penetration

Catalog: 881603

(0)

In Stock!

Add to Cart

Extech 881605 Probe, Temperature, K General Purpose, 6 inch

Catalog: 881605

(0)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech TP400 450 Degrees F Pipe Clamp Temp Probe

Catalog: TP400

(0)

In Stock!

Add to Cart

Extech TP870 Probe, Temperature, K Bead Wire

Catalog: TP870

(1)

In Stock!

Add to Cart

Extech TP873-5M Bead Wire Temperature Probe, 5 Meters

Catalog: TP873-5M

(0)

In Stock!

Add to Cart

Extech TP875 Bead Wire High Temp Probe 1000 F W/Banana Plug Adaptor

Catalog: TP875

(1)

In Stock!

Add to Cart

Extech TP882 Probe, Penetration, K, High Temp/-50 To 1000F

Catalog: TP882

(1)

In Stock!

Add to Cart

Extech EA10

Thermocouple Type K: -200 to 1999°F (-200 to 1360°C)
Resolution: 0.1°
Basic Accuracy: ±0.3% (+2°F/+1°C)

EasyView Dual Input Thermometers

Basic Type K Thermometer with wide temperature range

EA10 is an EasyView Dual Input Thermometer. Basic Type K Thermometer with wide temperature range. Temperature range from -200 to 1999°F (-200 to 1360°C) with 0.1°/1° resolution. Features Data Hold, Auto power off, low battery and overrange indication.

Measurement Specifications
Measurement Range	-200 to 1999°F (-200 to 1360°C)
Resolution	0.1°C/°F <200°, 1°C/°F >200°
Accuracy (@23 ± 5°C)	±(0.3% reading + 2°F) @ -200°F to 1832°F ±(0.5% reading + 2°F) @ 1832°F to 1999°F ±(0.3% reading + 5°C) @ -200°C to -93°C ±(0.3% reading + 1°C) @ -93°C to 1000°C ±(0.5% reading + 1°C) @ 1000°C to 1360°C
Temperature Coefficient	0.1 times the applicable accuracy specifications per °C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)
Note	Temperature accuracy does not include the accuracy of the type K probe.
Note	The temperature scale is based on the international temperature scale of 1990 (ITS90).
General Specifications
Display	Dual Display Multi-function LCD with Backlight
Input Protection	60VDC; 24VAC rms
Display Update Rate	1 per second
Over range indication	"OL" appears on the LCD
Open input indication	"OL" appears on the LCD
Low battery indication	“BT” appears on the LCD
Power supply	6 AAA Batteries
Battery life	Approximately 200 hours with carbon zinc batteries
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity	< 80% RH
Storage Temperature	14 to 140°F (-10 to 60°C)
Storage Humidity	10 to 80% RH
Dimensions	5.91x2.8x1.4" (150x72x35mm)
Weight	Approx. 8.29 oz. (235g) with battery

Tech Specs

Thermometers/Contact Thermometers Template
Type (Contact Thermometers)	Thermocouple
Types RTD/Thermocouples Accepted	K
Number of Probe Inputs/Channels	2
Resolution (thermometers)	0.1°
Accuracy	±0.3% (+2°F/+1°C)
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	CE
Product Weight	8.3 OUNCES (0.519 LBS)
Product Height	1.5 IN
Product Length	6 IN
Product Width	2.8 IN
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AAA Battery Type 6 x AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	2.50 IN
Shipping Length	9.75 IN
Shipping Width	5.25 IN
