Extech DV40 Non-Contact Voltage and Current Detectors - Style (voltage): Pen, Voltage Range (voltage detector): 200V, AC Volts: Yes

Name: Extech DV40 Non-Contact Voltage and Current Detectors - Style (voltage): Pen, Voltage Range (voltage detector): 200V, AC Volts: Yes
Brand: Extech
SKU: ExtechDV40
Price: 45.06 USD
Availability: InStock

0 reviews | UPC: 793950402405 | Model: Extech DV40

Compare

Voltage Detector Non-Contact W/IR Therm

DV40 1000V AC Voltage Detector + IR Thermometer
NCV (non-contact voltage detector) probe with integrated indicator light
NCV Voltage Sensitivity 50 to 1000VAC (50/60Hz)
Less than 1" detection range
Built-in IR Thermometer for non-contact temperature measurements from -20 to 445°F (-30 to 230°C) with 0.1° resolution
9,999 count LCD displays temperature with selectable °F/°C internal switch
Fixed 0.95 emissivity covers 90% of surface applications, 1:1 distance to target ratio
Rugged double molded housing, compact size with pocket clip
Complete with three LR44 batteries
International Patent Pending

View Product Details

List Price: $50.59

In Stock:

View Payment Options

Recommended for you

Extech DV40 1000V AC Voltage Detector + IR Thermometer.

NCV Voltage Detector + IR Thermometer
Quickly check for the presence of live wires before testing. Suitable for outlets or against wire insulation testing. Model DV40 combines a CAT III-1000V Voltage Detector (with a wide range from 50 to 1000V) with an Infrared Thermometer that measures and displays non-contact surface temperatures on the built-in LCD screen using a from -20 to 445 degrees F (-30 to 230 degrees C). 1:1 distance to target ratio and fixed 0.95 emissivity covers 90 percent of surface applications.

Applications

	Built-in IR Thermometer with LCD displays non-contact temperature measurements.

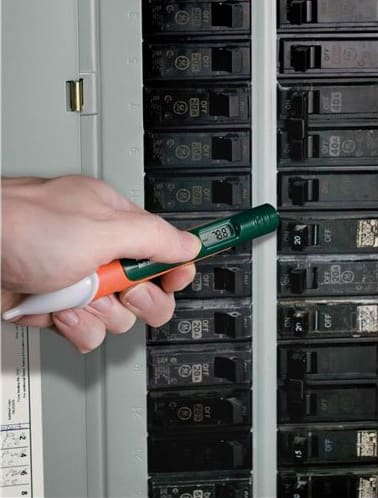

	Quickly check for the presence of live wires before testing.

Applications include: Electrical Troubleshooting, Plant/FM Maintenance, Building Inspections, HVAC/R Repairs, and Field Service.

Display	9,999 count LCD
IR Temperature Range	-20 to 445°F (-30 to 230°C)
Basic Accuracy	±2% of rdg or ±4°F/2°C whichever is greater
Max. Resolution	0.1°F/°C; 1°F/°C
Emissivity	0.95 fixed
Field of View (Distance to Target)	1:1
NCV Voltage Sensitivity	50 to 1000VAC
Bandwidth	50/60Hz
Detection Range	<1"
Safety Category	CAT III-1000V
Dimensions (Length x Diameter)	6.25 x 1" (159 x 25mm)
Weight	1.48oz (42g)

Tech Specs

Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template
Style (voltage)	Pen
Voltage Range (voltage detector)	1kV, 200V, 240V, 600V
AC Volts	Yes
DC Volts	No
Voltage Display	Yes
Audible Alert	Yes
Visual Alert	Yes
Flashlight Option	No
Data Hold	No
Resistance Testing	No
Continuity Test	No
Diode Testing	No
CAT Rating	III
CAT Voltage	1,000 V
Continuous Self Test	No
Test Equipment General Attributes
Unique Features	NCV (non-contact voltage detector) probe with integrated indicator light NCV Voltage Sensitivity 50 to 1000VAC (50/60Hz) Less than 1" detection range Built-in IR Thermometer for non-contact temperature measurements from -20 to 445°F (-30 to 230°C) with 0.1° resolution 9,999 count LCD displays temperature with selectable °F/°C internal switch Fixed 0.95 emissivity covers 90% of surface applications, 1:1 distance to target ratio Rugged double molded housing.
Warranty	1 YEARS
Safety Approval	CE, ETL
Product Weight	1.5 OUNCES (0.094 LBS)
Product Height	1 IN
Product Length	10.10 IN Product Length 6.25x1” (159x25mm)
Product Width	6.25 IN
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	Other Battery Type three LR44 batteries
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	1.50 IN
Shipping Length	10.10 IN
Shipping Width	3.50 IN
