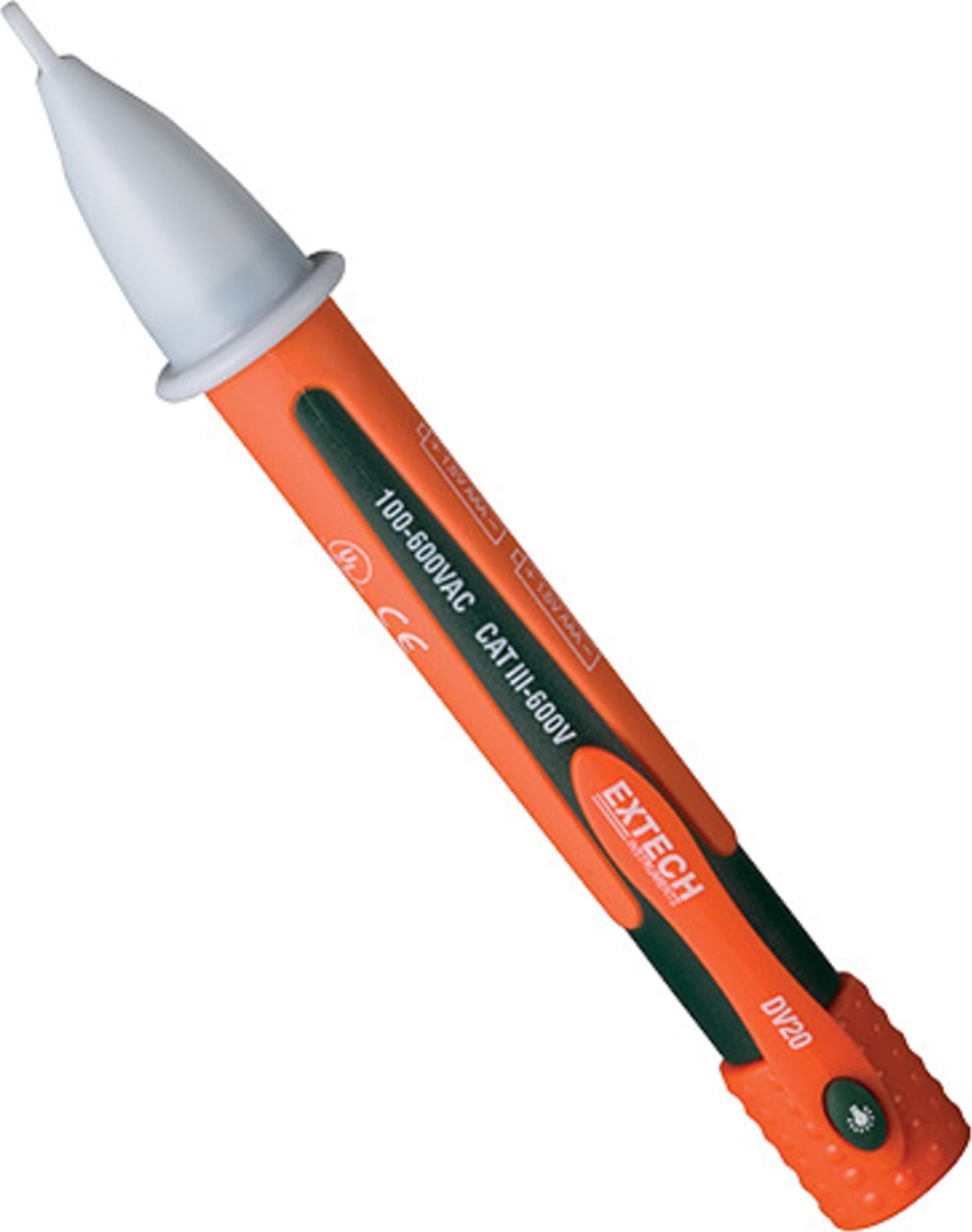

Extech DV20 - AC Voltage Detector/Flashlight

Name: Extech DV20 - AC Voltage Detector/Flashlight
Brand: Extech
SKU: ExtechDV20
Price: 17.59 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950402207 | Model: Extech DV20

Compare

Voltage Detector, AC - Flashlight

Non-Contact Detection of AC Voltage from 100VAC to 600VAC
Rugged, double molded case
Suitable for outlets or against wire insulation testing
Red LED light indicator
Built-in bright flashlight with ON/OFF button
Limited Two Years Warranty

View Product Details

List Price: $17.59

In Stock:

View Payment Options

Recommended for you

Extech DV20

Voltage Sensitivity: 100V to 600V AC

Bandwidth: 50/60Hz

Detection distance: <0.2 "

Operating Temperature: 32 to 122°F (0 to 50°C)

AC Voltage Detector/Flashlight

Non-contact detection of AC Voltage (600V AC) with built-in flashlight

The DV20 is a pocket-sized non-contact voltage detector designed for quick voltage checks on live wires before testing. Other features of this detector is its LED flashlight for illuminating dimly lit areas, rugged double molded housing, and CAT III-600V safety rating. Designed for use on 50/60 Hz circuits.

Tech Specs

Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template
Style (voltage)	Pen
Voltage Range (voltage detector)	200V, 240V, 600V
AC Volts	Yes
DC Volts	No
Voltage Display	No
Audible Alert	No
Visual Alert	Yes
Flashlight Option	Yes
Data Hold	No
Resistance Testing	No
Continuity Test	No
Diode Testing	No
CAT Rating	III
CAT Voltage	600 V
Continuous Self Test	No
Test Equipment General Attributes
Unique Features	Non-Contact Detection of AC Voltage from 100VAC to 600VAC Rugged, double molded case Suitable for outlets or against wire insulation testing Flashing red LED light indicator Built-in bright flashlight with ON/OFF button Convenient size with pocket clip Dimensions: 6.25 x 1" (159x25mm) Weight: 1.5oz (42g) For use on 50/60Hz circuits Complete with two AAA batteries
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	UL
Product Weight	1.5 OUNCES (0.094 LBS)
Product Height	1 IN
Product Length	3.50 IN Product Length 6.25 x 1" (159x25mm)
Product Width	6.25 IN
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AAA Battery Type 2 x AAA
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	1.50 IN
Shipping Length	3.50 IN
Shipping Width	10.00 IN
