Extech BR300 Waterproof Video Borescope Inspection Camera

Name: Extech BR300 Waterproof Video Borescope Inspection Camera
Brand: Extech
SKU: ExtechBR300
Price: 178.11 USD
Availability: InStock
Rating: 2.00 (1 reviews)

2 (1 Review) | UPC: 793950633007 | Model: Extech BR300

Compare

WATERPROOF BORESCOPE (8MM DIA/1M CABLE)

8mm diameter camera head with 4 built-in bright LED lamps for dimly lit areas
Handheld design for quick, easy, on-the-spot viewing in small openings
Completely submersible in water down to 1 meter for 1 hour
Non-detachable waterproof 39" (1m) flexible gooseneck cable retains configured shape
2.7" (68mm) color TFT LCD monitor for detailed images
2x digital zoom for close-up viewing
Low battery indicator
Complete with camera probe and 39" (1m) flexible cable, 4 AA batteries, and hard case

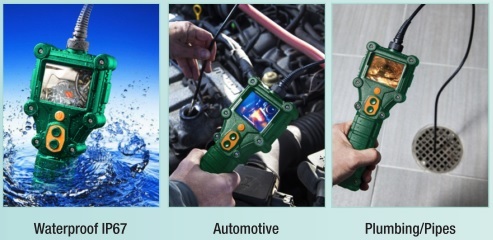

Applications:

Underwater & marine applications
Automotive maintenance/repair
Pipe inspection/repair
Industrial equipment inspection
Construction sites, Workshops, & Laboratories
Home Inspection

View Product Details

List Price: $199.99

In Stock:

View Payment Options

Recommended for you

Waterproof Video Borescope Inspection Camera
8mm camera diameter and 2.7" Color TFT LCD Monitor

The Extech BR300 Waterproof Borescope Inspection Camera is a completely submersible camera that can withstand being in water up to 1 meter deep for 1 hour, and is equipped with an 8 mm diameter camera head. Made with four built-in lights, the Extech BR300 will help the user be able to see even in dimly lit areas. The camera is useful for underwater and marine applications, automotive maintenance/repair, pipe inspection/repair, industrial equipment inspection, construction sites, workshops, laboratories, home inspections and more.
Extech-Waterproof_Video_Borescope_Inspection_Camera

Extech-Waterproof_Video_Borescope_Inspection_Camera

Safety

Keep work area clean and well lit. Accidents are more likely to occur in cluttered and dark or dimly lit areas.
Do not operate this device in explosive environments such as in the presence of flammable liquids, gases, or dust.
Do not use this device in areas where contact with electrical wiring or electrically charged circuits or devices is likely. Contact with charged or live circuits and devices can cause this device to conduct electricity to the user resulting in severe injury or even death.
Do not use near moving machinery, appliances, or other moving or rotating objects.
Do not use this device near sources of heat.
Do not allow children to use this device, its accessories, or the batteries.
Do not use this device in rain or other wet conditions for long periods.
Use common sense when using this device; stay alert and concentrate on the task at hand to avoid accidents.
Use personal protective clothing, eye protection, and other protective gear as needed when operating this device.
Do not over-reach when using this device; keep proper footing and balance at all times.
Remove the batteries if the device is to be stored for longer than 60 days.
Never dispose of batteries in a fire. Batteries may explode or leak.
Never mix battery types. Always install new batteries of the same type.

Considerations and Maintenance

This instrument is not intended for medical use of any kind
Store the instrument out of the reach of children and do not allow person unfamiliar with this device to use it
Check for misalignment or binding of the moving parts and for damage or any other condition that may affect this instrument’s safe operation; do not use this device if it emits fumes or smoke. Have the unit repaired before use if any of these conditions are noticed.
Clean only with a dry or damp cloth. Do not use abrasives, solvents, or scouring agents.
Remove the battery before cleaning
Have the unit serviced by qualified personnel only; Do not dis-assemble this instrument

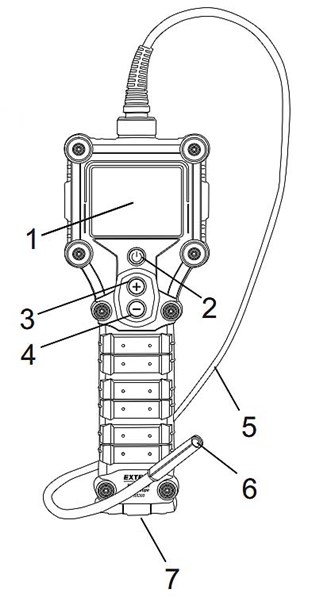

Meter Description

Display Monitor
Power ON-OFF button
Search light brighten (+) button and zoom button
Search light dim ( -) button and 180° rotation button
Flexible gooseneck snake shaft
Camera lens and LED search lighting
Battery compartment

Keypad Description

POWER button: Press and hold for at least 2 seconds to power ON the instrument. Press momentarily to switch the instrument OFF
Increase LED lighting/Zoom button: Press this button momentarily to raise the intensity of the search light LEDs located at the tip of the flexible camera probe. Press and hold this button for at least 2 seconds to ZOOM by a factor of 2 (2x).
Decrease LED lighting/180 degree rotation button: Press this button momentarily to lower the intensity of the search light LEDs located at the tip of the flexible camera probe. Press and hold this button for at least 2 seconds to rotate the display by 180° (mirror image).

Battery replacement

The battery compartment is located at the bottom of the instrument’s handle. Batteries should be replaced when the instrument’s video screen no longer switches ON or when the low battery indicator appears on the display screen.

Open the battery compartment by flipping up the battery compartment lid located on the bottom of the instrument’s handle.
Remove the old batteries noting the orientation/polarity. 3. Replace with four (4) fresh 1.5V AA alkaline batteries observing correct polarity. 4. Close the compartment lid securely before operating the instrument.

Battery Safety Reminders

Please dispose of batteries responsibly; observe local, state, and national regulations.
Never dispose of batteries in a fire; batteries may explode or leak.
Never mix battery types; install new batteries of the same type.

Specifications	BR300	BR350
Camera Shaft Diameter / Cable Length	0.31" (8mm) diameter / 39" (1m) cable	0.22" (5.5mm) diameter / 39" (1m) cable
Focus Distance from Object	0.8 to 2.75" (2 to 7cm)	0.4 to 1.6" (1 to 4cm)
LED lamps	4 LEDs with dimmer	2 LEDs with dimmer
Camera	Viewing Direction Viewing Angle 60°	Viewing Angle 60°
Minimum Bend Radius	1.2" (30mm)	1.2" (30mm)
Camera resolution	640 x 480 pixels	320 x 240 pixels
Camera Zoom	2x Digital	2x Digital
LCD Screen Type / Pixels	2.7" (68mm) color TFT / 960 x 240 pixels	2.7" (68mm) color TFT / 960 x 240 pixels
Waterproof	IP67 rating (1 meter for 30 minutes)	IP67 rating (1 meter for 30 minutes)
Battery life (continuous use)	Approx 3-4 hours	Approx 3-4 hours
Dimensions/Weight (w/o batteries)	9.8x3.7x1.7" (249x94x43mm) /13.4oz (380g)	9.8x3.7x1.7" (249x94x43mm) /13.4oz (380g)
Display Description	6.8 cm (2.7”) digital TFT LCD screen
Display Resolution	960 x 240 pixels
Zoom	2x digital zoom capability
Image adjust	180° rotation (mirror image) capability
Batteries	4 x 1.5V AA alkaline batteries
Battery life	3 to 4 hours of continuous instrument use
Safety rating	IP67; EN60529:1991; A1:2000; completely submersible in water up to 1m (39.4”) depth for 30 minutes
Operating Temperature	0 to 40°C (32 to 104°F)
Operating Humidity	10 to 80% RH
Dimensions	25 x 9.3 x 4.2cm (9.8 x 3.7 x 1.6”) instrument without flexible cable 1m (39.4”) flexible gooseneck flexible cable
Weight	380g (13.4 oz.) without batteries installed

Tech Specs

Borescopes / Boroscopes/Video Borescopes Template
Shaft Length	39 IN
Shaft Diameter	8 MM (0.008 M)
Screen Size	2.7 IN
Detachable Screen	No
Screen Type	TFT LCD
Video Resolution (Boroscopes)	640x480
Digital Zoom X	2
Video Output Format	NTSC
IP Rating	IP67
Test Equipment General Attributes
Warranty Details	1 Year
Safety Approval	CE
Product Weight	1 LBS
Product Height	3.25 IN
Product Length	13.75 IN
Product Width	9.25 IN
Data Logging	No
Calibration Included	None
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	3.25 IN
Shipping Length	13.75 IN
Shipping Width	9.25 IN
